ENGINE 1.3L QUADRAJET (90PS)
31

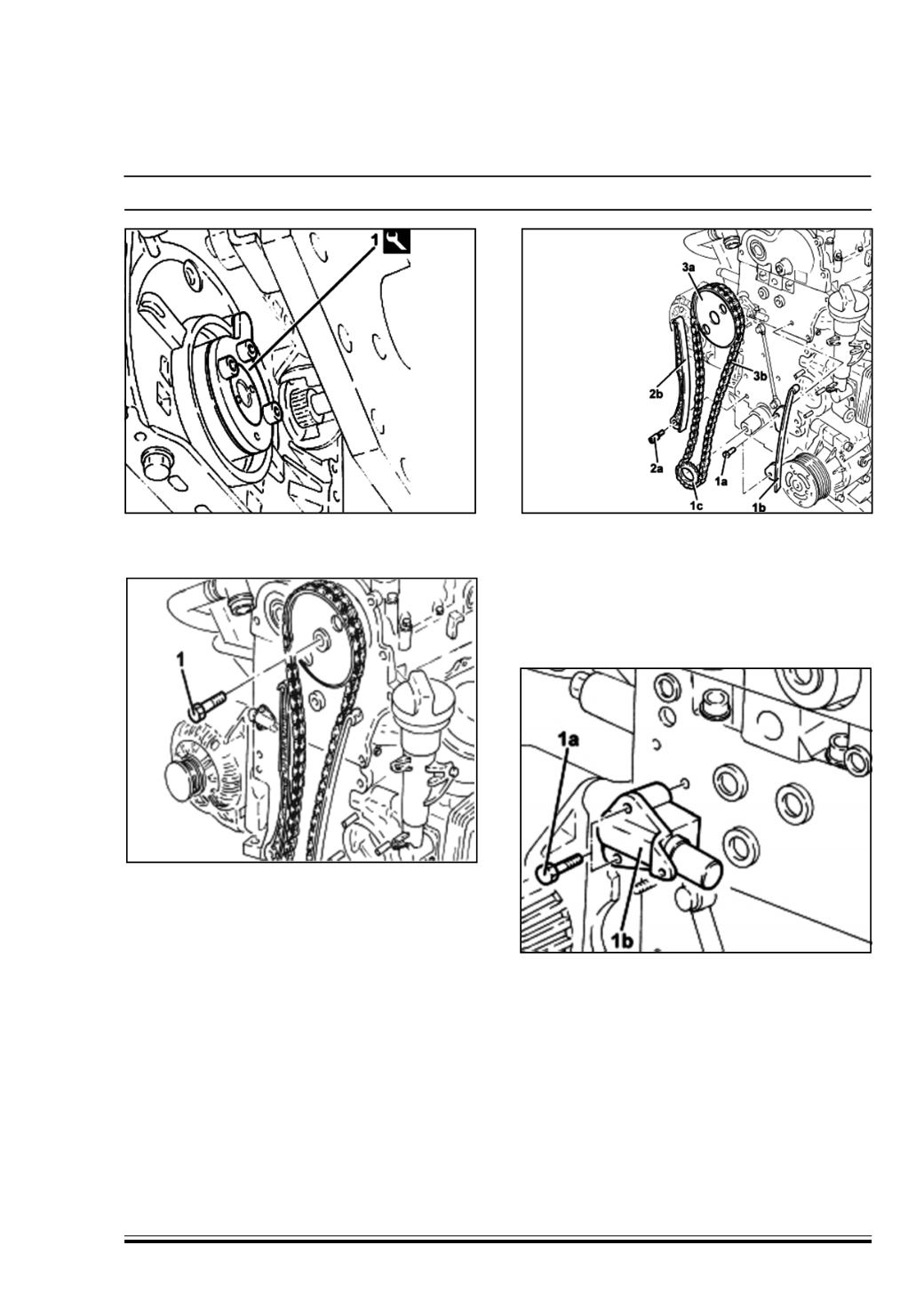

34. Fit the camshaft timing adjustment tool (1) part
no. 287158900650 (Template).
38. Remove the bolts (1a) and remove the timing chain
fixed pad (1b).
37.Remove the pin (2a) and remove the timing chain
moving plate (2b).
38. Remove the timing driven pulley (3a) together with
the chain (3b) and the timing drive pulley (1c).
35. Remove the timing driven pulley fixing bolt (1).
NOTE
• Mark the position of the timing driven pulley, the
timing drive pulley and the timing drive chain (if
the chain removed is being reused); if the pulleys
are replaced, fit them with the writing facing
outwards.
39. Remove the bolts (1a) and remove the mobile
timing chain tensioner (1b).
