ENGINE 1.3L QUADRAJET (90PS)
29

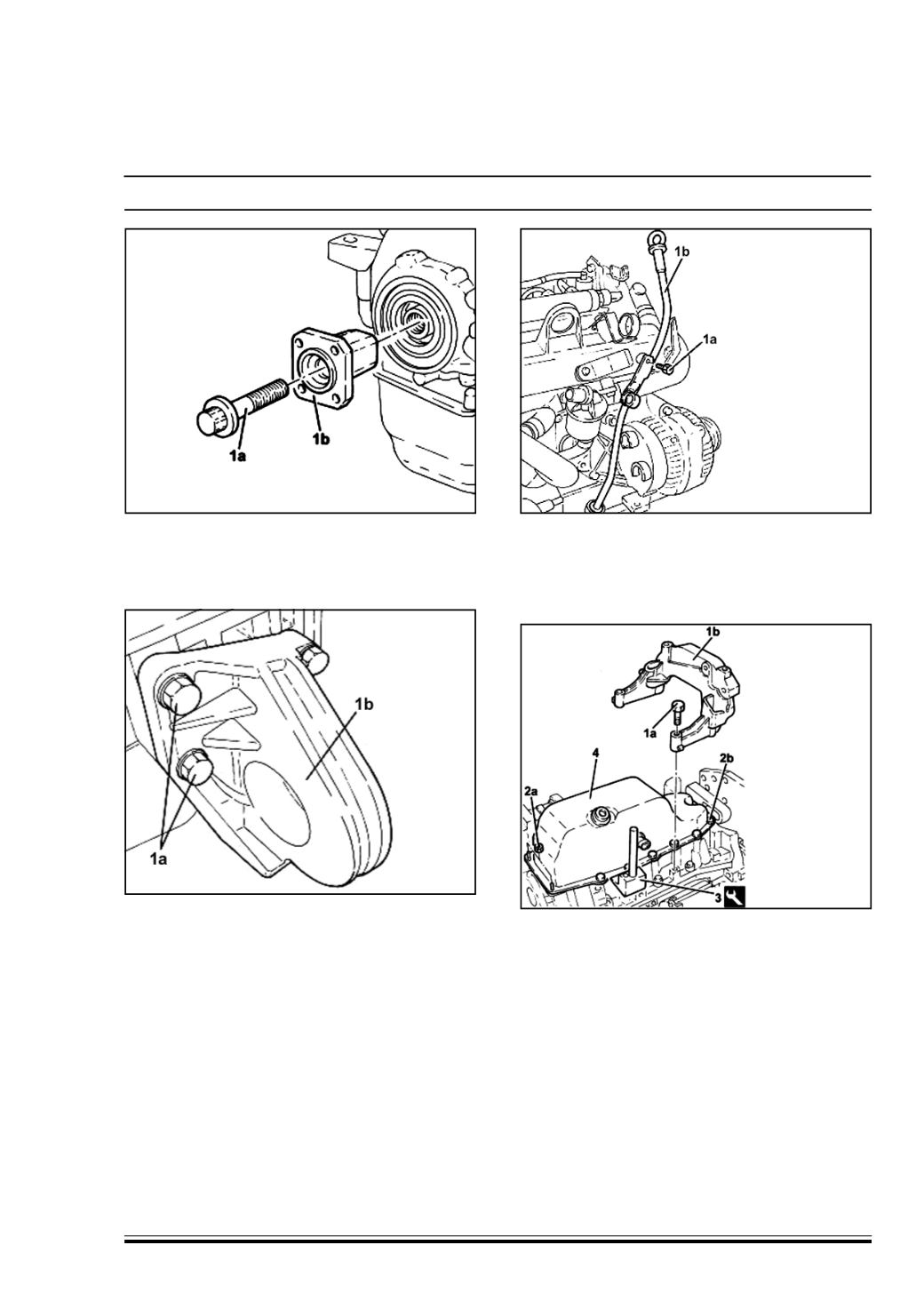

20. Completely remove the left hand threaded bolt (1a)
(loosening in clockwise direction) loosened
previously and remove the pulley mounting flange
on the crankshaft (1b).
21. Remove the bolt (1a) & remove the intermediate
driveshaft support (1b).
22. Remove retaining bolt (1a) and remove the engine
oil dipstick tube (1b).
23. Rotate the engine through 180° on the overhaul
stand.
24. Remove the bolts (1a) and remove the support (1b).
25. Remove the nuts (2a) and the bolts (2b) securing
the crankcase sump.
26. Cut the crankcase sump sealant using the tool
(3) part no. 287158900663 (Blade)
27. Remove the crankcase sump.
