Revotron 1.2T
74

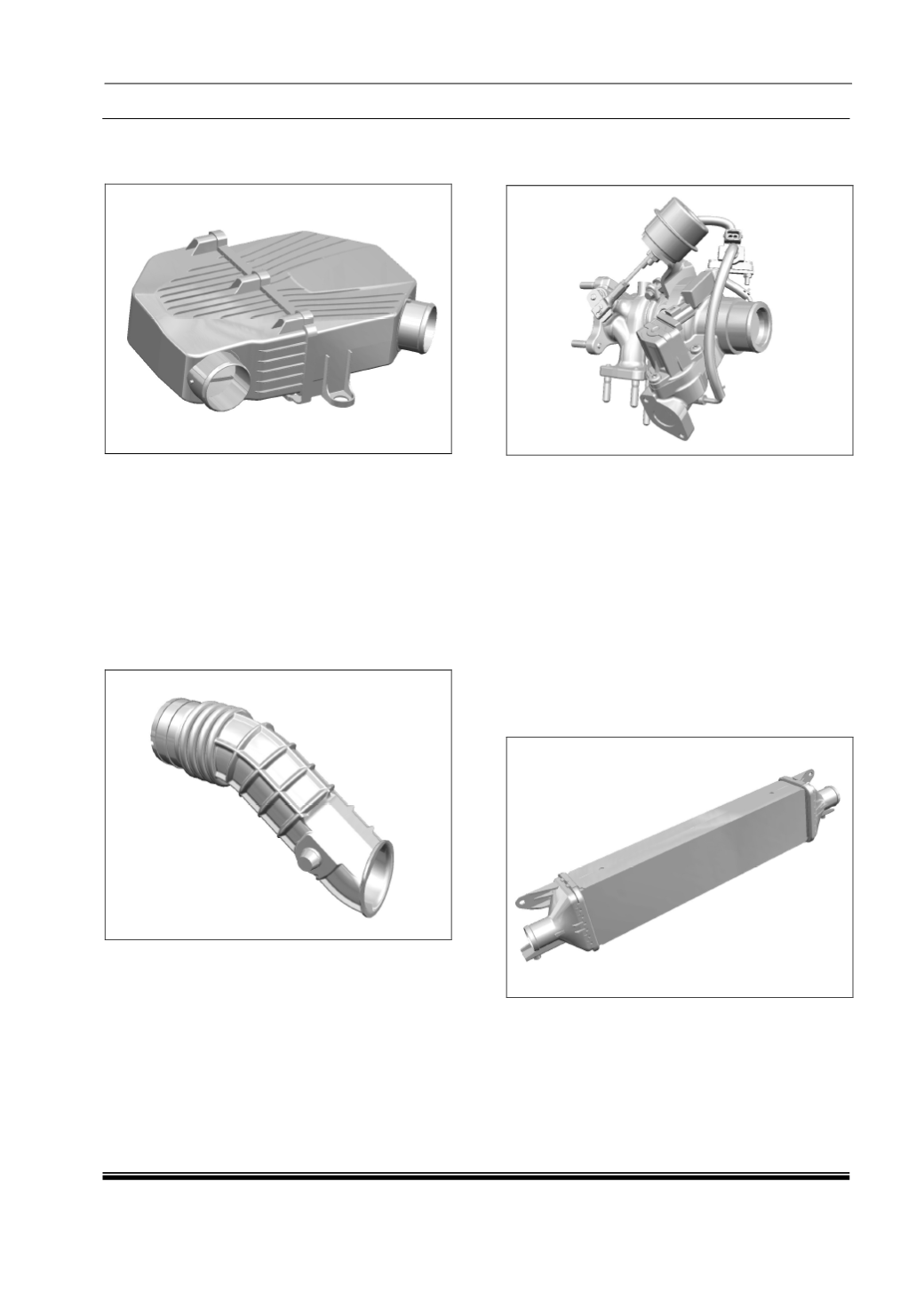

Components :
1. Air Filter :
The Air filter is of dry type. The purpose of
the air filter is to clean the atmospheric air
from dirt & dust before entering the engine
cylinder. Air filter needs to be cleaned
periodically and replaced at recommended
intervals.
2. Intake Snorkel :
Air is drawn into the engine through the
air intake snorkel. It is located in such a way
that the fresh air from the atmosphere should
easily enter into it.
3. Turbocharger :
Turbocharger is a type of forced induction
system. It is driven by Engine exhaust gas.
Compress the ambient air and supplies it to
the Engine.
•
Turbocharger Benefits
Increased Fuel Efficiency
Reduced Emissions
Enhanced Engine Performance
Altitude Compensation
4. Intercooler :
The intercooler is a heat exchanger used
to cool the compressed hot air coming from
the turbocharger before it enters the intake
manifold. It increases the density of the air
and avoids the chance of pre-ignition due to
high intake air temperature . The intercooler is
mounted in front of the radiator.
