12.24 INSTRUMENT CLUSTER
FEATURES
Dynamic and monitoring information (e.g. fuel level) to which the driver should respond, is indicated in the
instrument cluster.
The Instrument Cluster has following features:
Analogue Gauge : Speedometer, Tachometer and Fuel gauge
Bar graph: Engine coolant Temperature (as a part of LCD display), Fuel gauge
LCD Display : Clock, Odometer & Trip meter (A & B)
Tell tales
Mode & Set switches

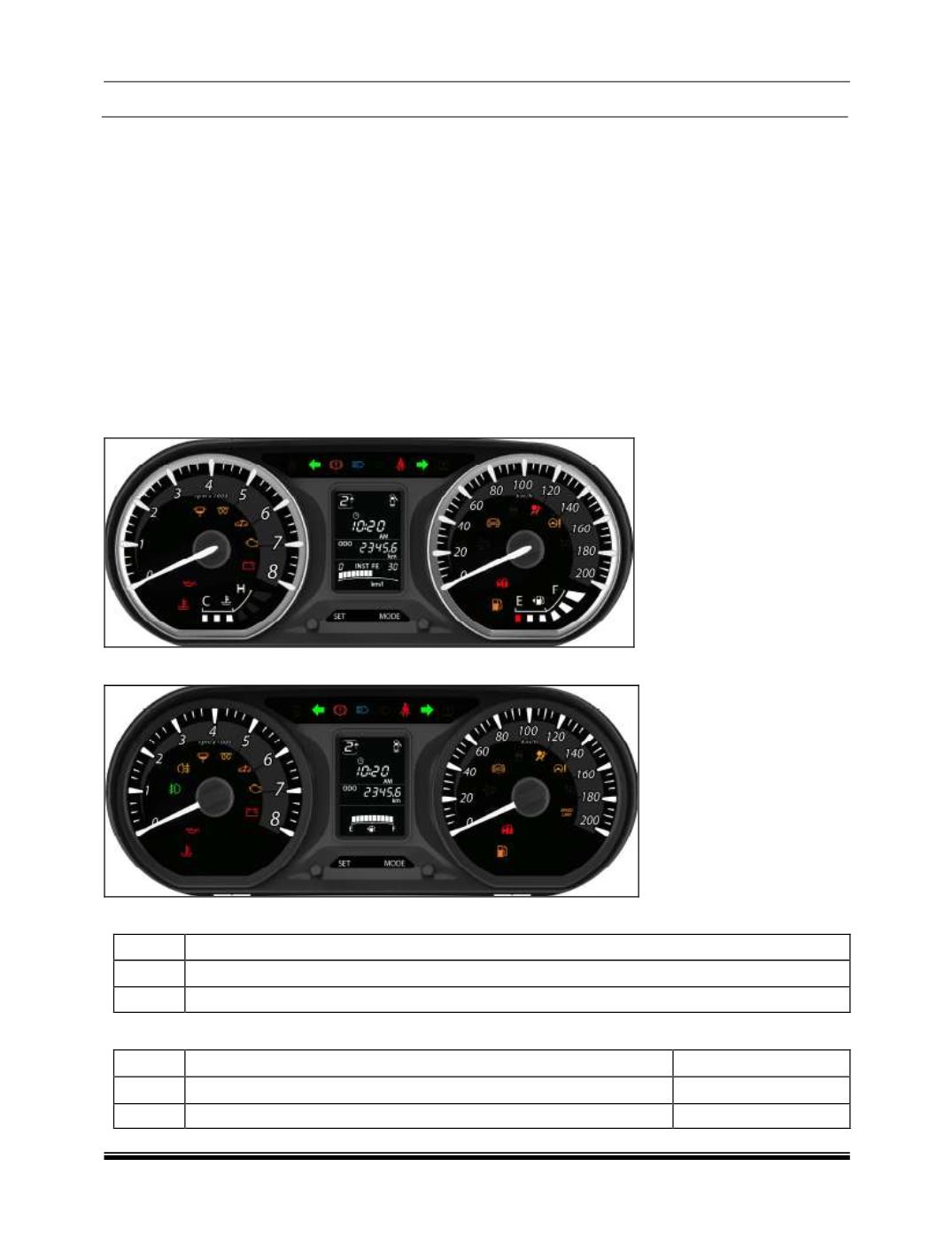

High End Instrument Cluster
Low End Instrument Cluster
Instrument Cluster variants
SR.NO.
ENGINETYPE
1
1.3L Quadrajet 75PS / 90PS (High End & Low End)
2
1.2 Revotron (High End & Low End)
Tank Unit Variants:
SR.NO.
ENGINETYPE
TANK UNIT
1
1.3L Quadrajet 75PS / 90PS
44 Lit
2
1.2 Revotron
44 Lit
