ELECTRICAL
56
12.12 POWER SOCKETS
One power sockets of 12V DC-10 amps each are
provided as shown in the these can be used for
connecting loads up to 10A maximum. To use this
socket, remove the cap first.

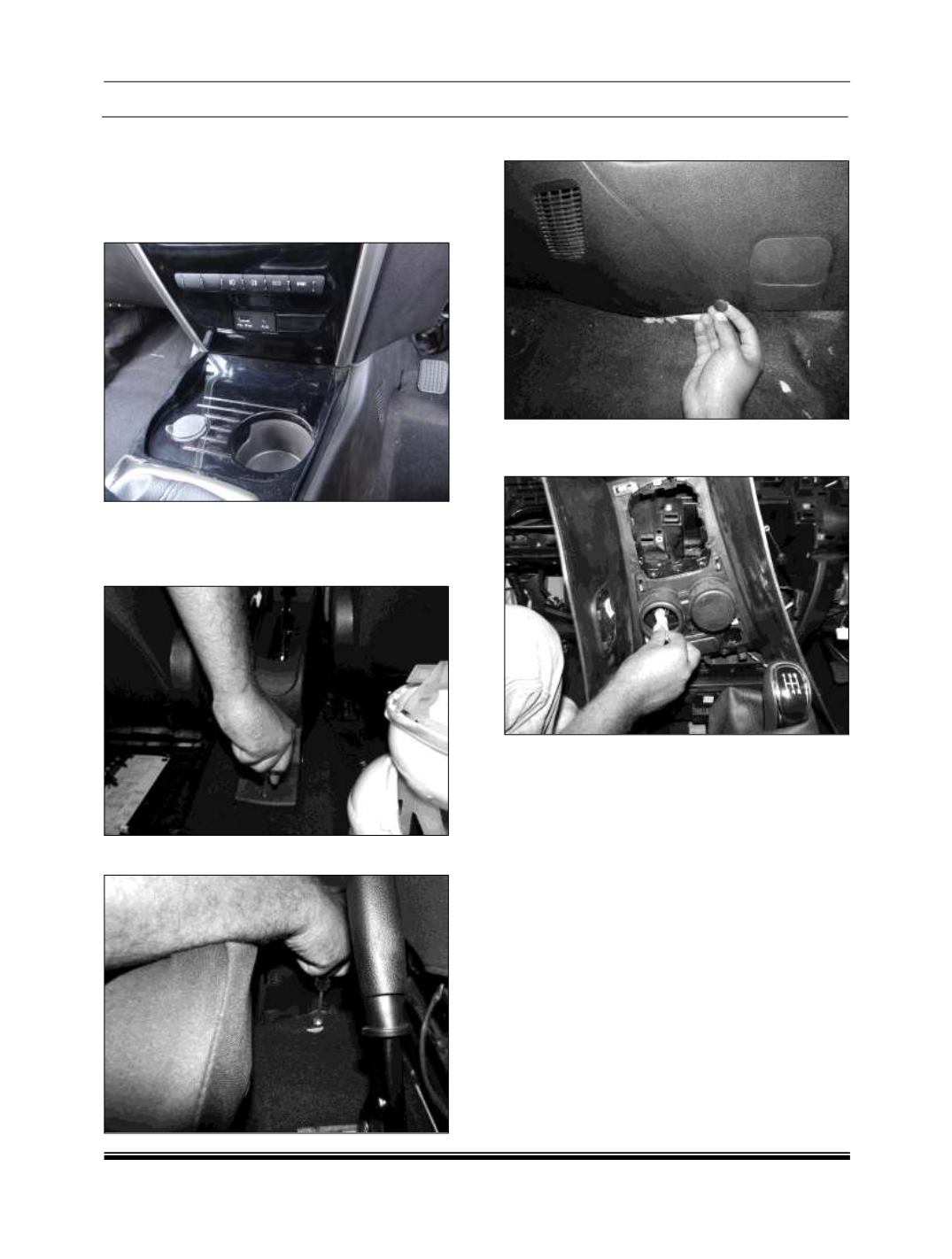

REMOVAL AND REFITMENT
1. Remove hand brake cover screw and take out
it.
2. Remove gear sifter cover.
3. Remove central console clips and take out it.
4. Remove the electrical connection from power
socket.
5. Remove power socket along with central
console.
REFITMENT
Install the power socket in the reverse order of
removal.
