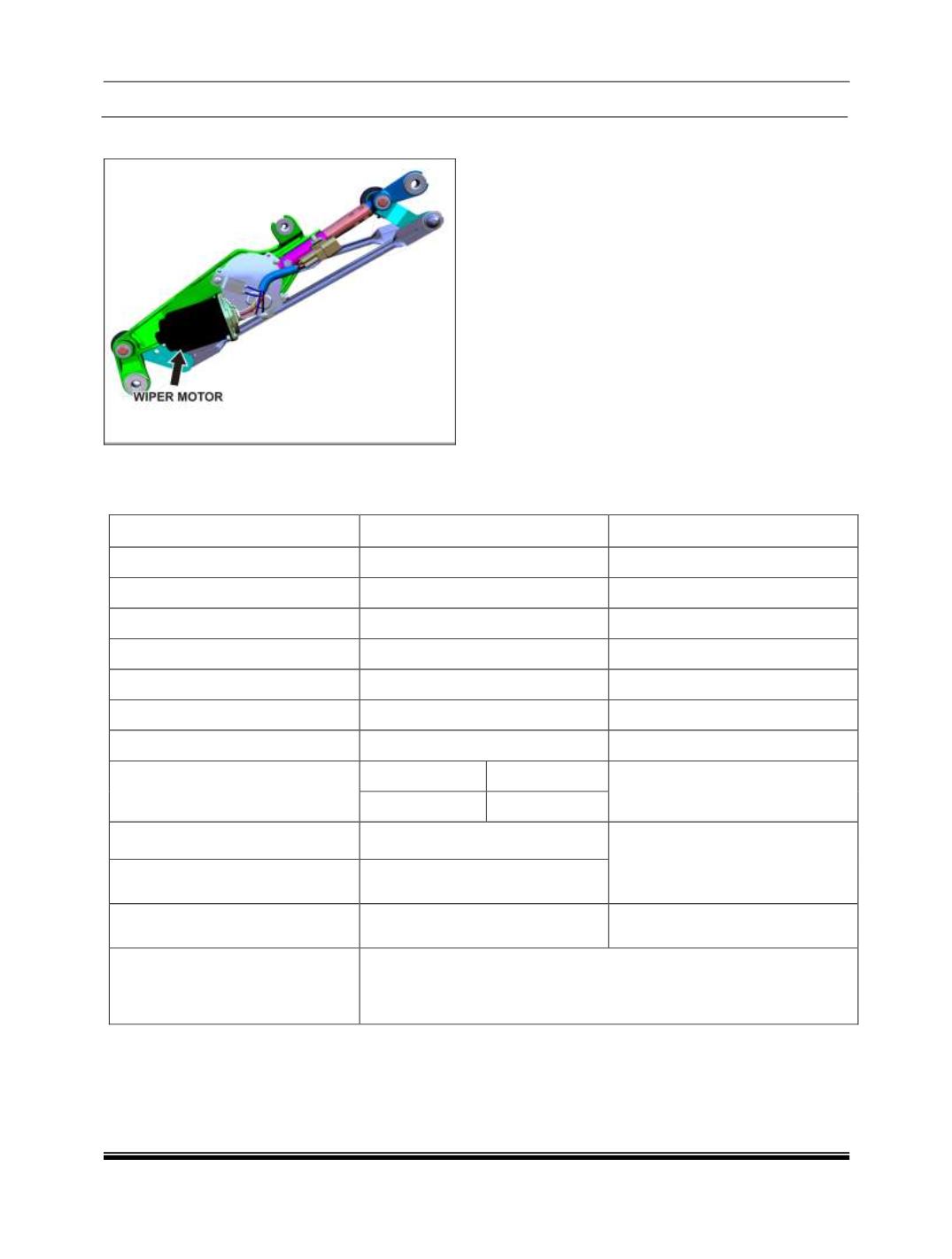

FRONT AND REAR WIPER MOTOR.
MOTOR SPECIFICATION
ITEM
VALUE
REMARKS
RATED VOLTAGE
12V
TEST VOLTAGE
13.5±0.2V
STARTING VOLTAGE
8V MAX
OPERATING VOLTAGE RANGE 10-15V
TEST TEMPERATURE
25±5ºC
OPERATING TEMP RANGE
-40ºC TO +80ºC
INSULATION RESISTANCE
1M.ohm MIN
500 VOLTS MEGGER
NO LOAD
SPEED
38±5RPM
HOT STAGE
CURRENT
1.3 A MAX
LOCK TORQUE (AT 0 RPM)
≥7 NM
COLD STATE
LOCK CURRENT
14 A MAX
NOISE
50 db (A) MAX
JIS D 5703-A
THERMAL CUTOUT
SPECIFICATION
SETTING TEMP: 135ºC-145ºC OPEN. 110ºC-85ºC RESET BREAK
CURRENT – 14AMPS
TIME: 2-8 SEC AT NORMAL AMBIENT OF 30ºC
