ENGINE 1.3L QUADRAJET (90PS)
21
NOTE:Mark the position of the timing driven pul-
ley, the timing drive pulley and the timing drive
chain (if the chain removed is being reused); if
the pulleys are replaced, fit them with the writing
facing outwards.

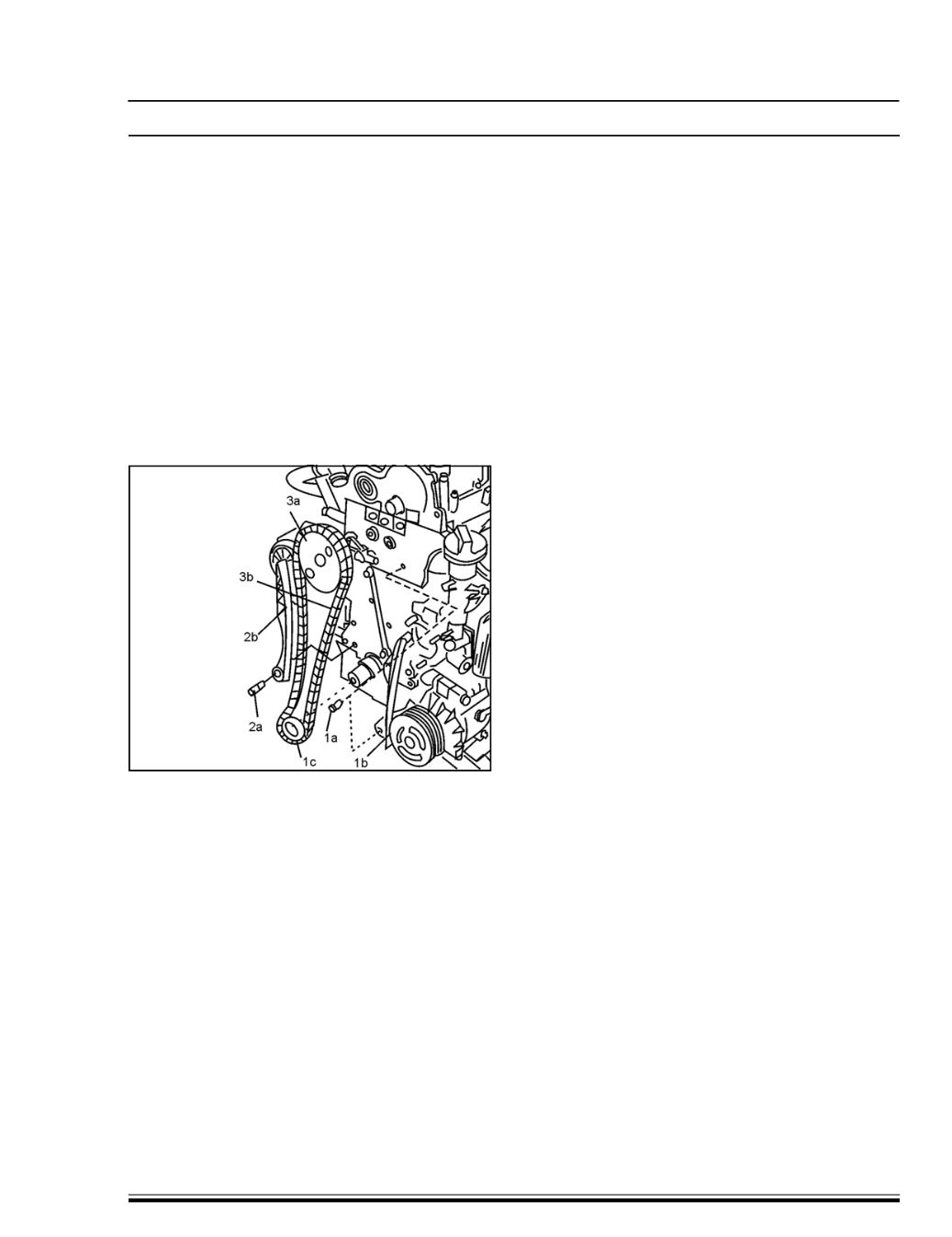

25. Remove the pin (2a) and remove the timing chain
moving plate (2b).( Refer fig 14)
26. Remove the timing driven pulley (3a) together
with the chain (3b) and the timing drive pulley
(1c). (Refer fig 14)
27. Remove the bolts (1a) and remove the mobile
timing chain tensioner (1b). (Refer fig 14)
28. Remove the bolts (1a) and remove the timing
chain fixed pad (1b).
Installation:
Follow appropriate reverse order of removal
procedure.
