ELECTRICAL
86

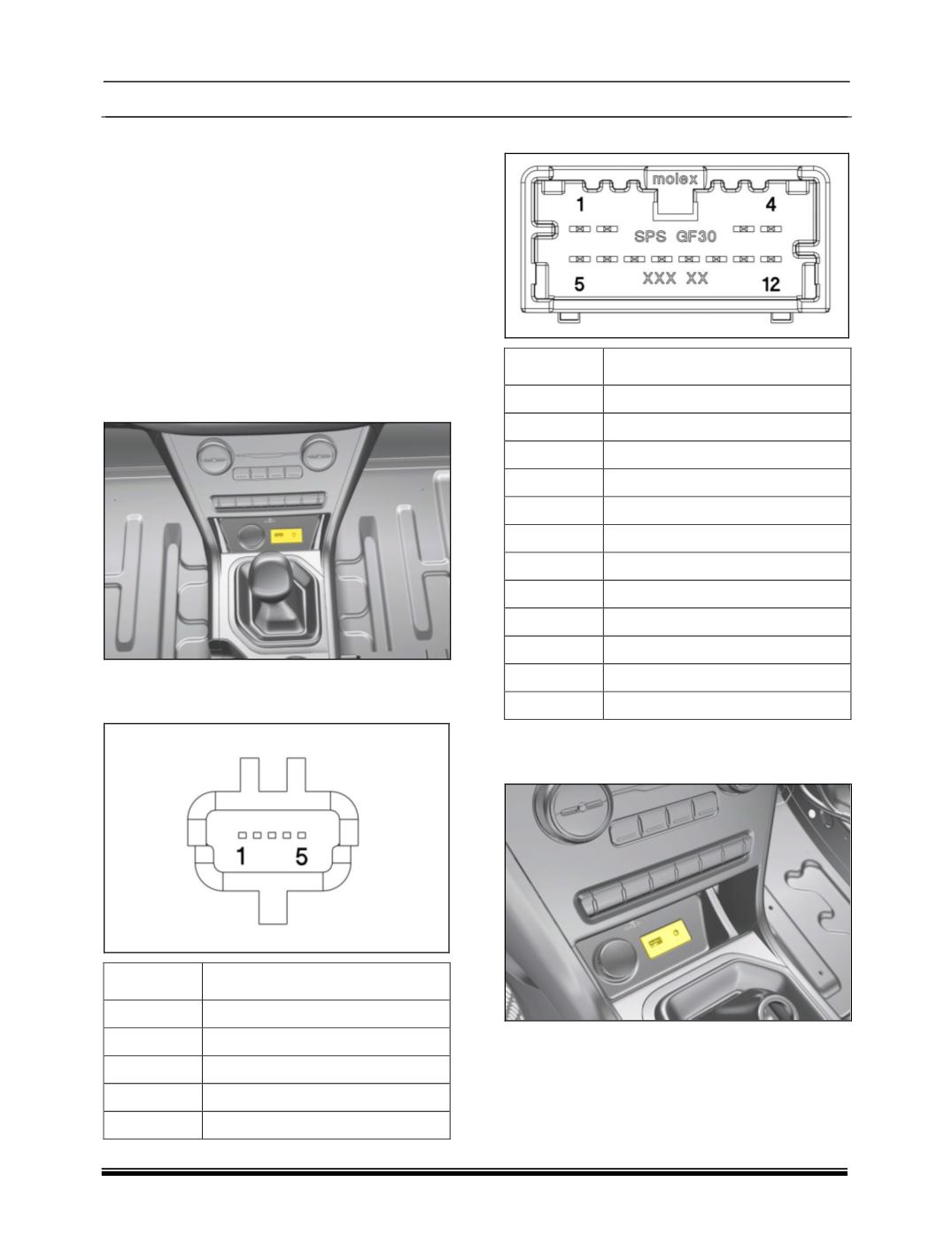

1.18.1 USB/AUX PORT
USB
External memory devices like memory sticks / Pen
Drives, I-Pods can be connected for playing music
tracks stored in these devices through the vehicles
music system.
AUX
AUX port provided to connect audio input devices
for playing music tracks stored in the devices
through vehicle’s speakers.
LOCATION
USB and AUX ports are fitted below the Fascia
switch.
PINOUT DETAILS
1. USB Connector
PIN
DESCRIPTION
1
USB_5V
2
USB_D -
3
USB_D +
4
NC
5
GND
2. AUX Connector
PIN
DESCRIPTION
1
ILLUM -
2
ILLUM +
3
NC
4
NC
5
BAT
6
NC
7
AUX SHIELD
8
AUX_R
9
AUX_L
10
AUX_COM
11
AUX_DECT
12
GND
REMOVAL
1. Gently pry out the module from the cutout.
