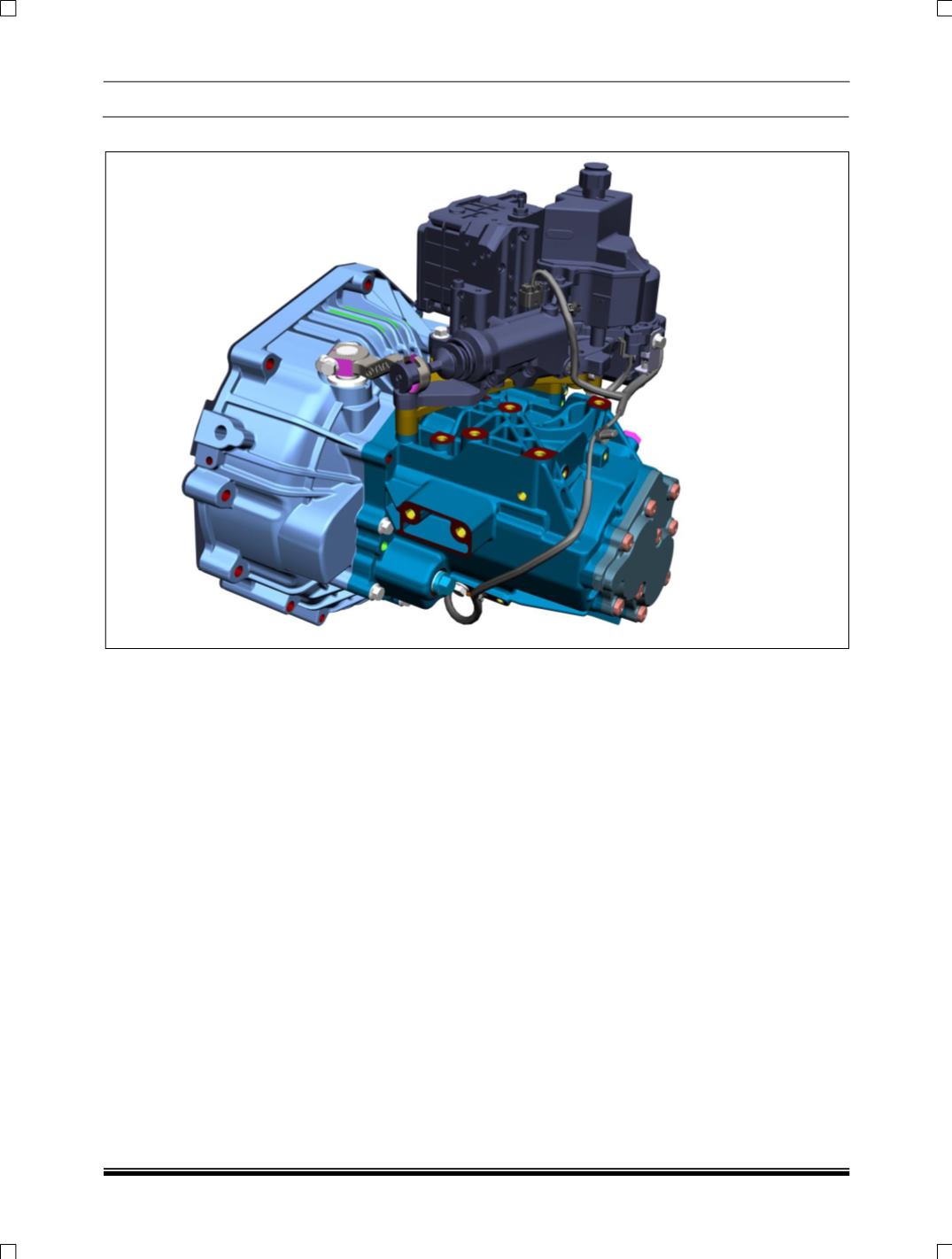

TRANSAXLE TA6300 AMT
1
1 GENERAL INFORMATION
The transmission TA6300 AMT provides six forward speeds and one reverse speed by means of Six
synchronizers and input shaft, lay shaft and reverse idler shaft and differential. All forward gears are in
constant mesh engaged through synchronizers and reverse gear uses a sliding idler gear arrangement.
1st/2nd gear synchronizers are mounted on lay shaft and 3rd/4th/5th/6th gear synchronizers mounted on
input shaft. The lay shaft turns the final drive gear and differential assembly, thereby turning the front drive
shafts which are attached to the front wheels.
The complete Gear Shifting Mechanism is controlled by Mechatronic Kit & Transmission control unit
Interlock piece is provided to prevent double engagement of gears. Central detent and shaft detents are
provided for distinct position of gears about neutral position.
MAJOR HIGHLIGHTS OF TA6300 AMT:
1. Twin cone brass synchronizers for 1st/2nd gears and single cone carbon lined synchronizers for
3rd/4th/5th/6th gears. Benefits are shift smoothness, less shift efforts and enhanced life of synchro cones.
2. The shifting components can be serviced by removing the AMT Kit.
