TRANSAXLE TA6300
49

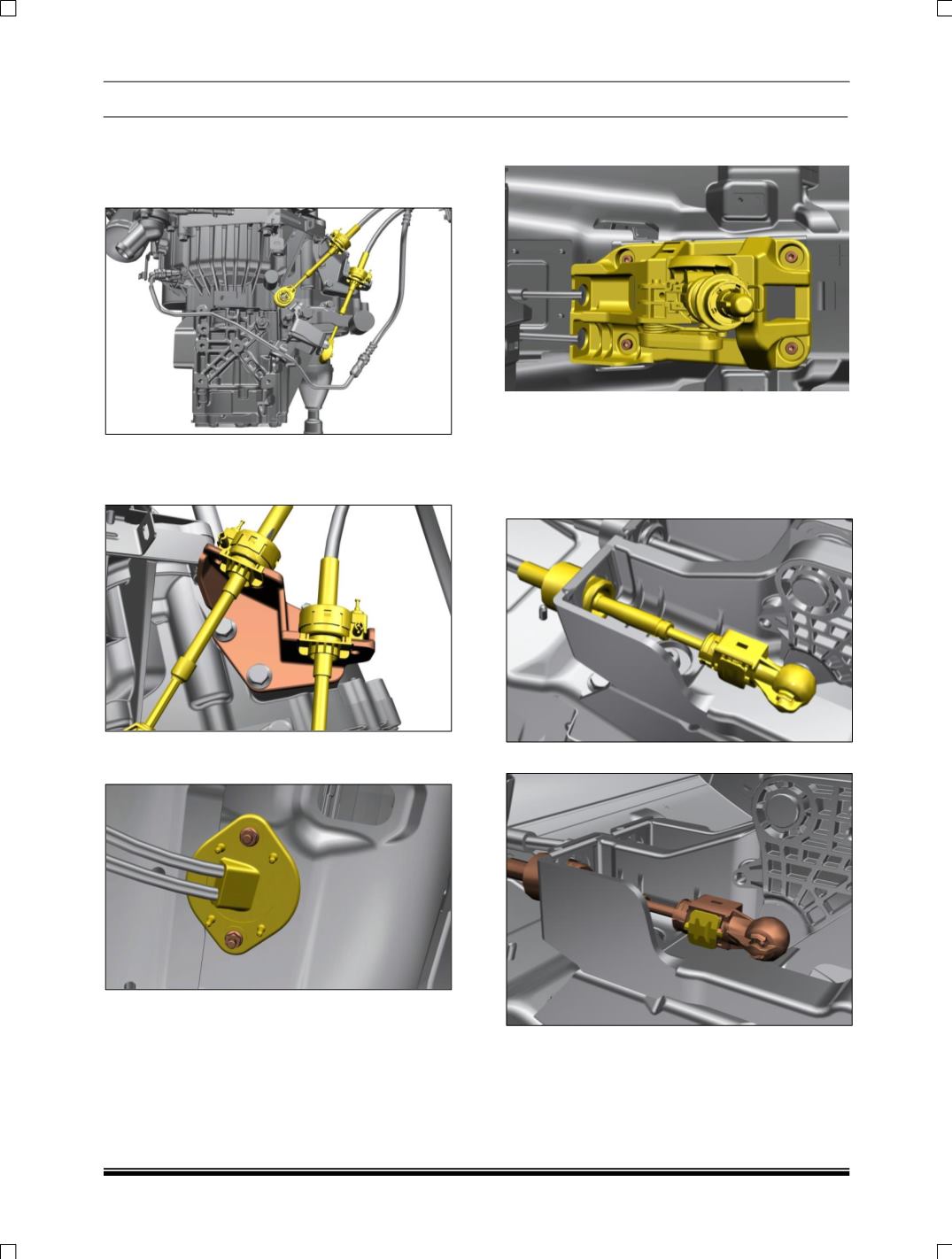

ASSEMBLY:
1. Refit the selector shifter cable over the
transaxle bell crank lever and assembly
selector shifter shaft end
2. Pull and hold the plunger of the transaxle
cable. Then snap fit the cables over the
transaxle cable-anchoring bracket.
3. Insert the cable through the firewall and
tighten its mounting on it.
4. Position and tighten the assembly gearshift
housing on the cab floor.
5. Refit the selector and shifter cable lock on the
assembly gear shift housing.
6. Fix the selector cable on the assembly gear
shifter housing and leave the yellow clip
partially open.
7. Fit the selector cable end on select lever ball.
8. Press the yellow clip of the selector cable.
9. Place the center console over the assembly
and assemble it.
10. Then fix bellow and gearshift lever knob.
