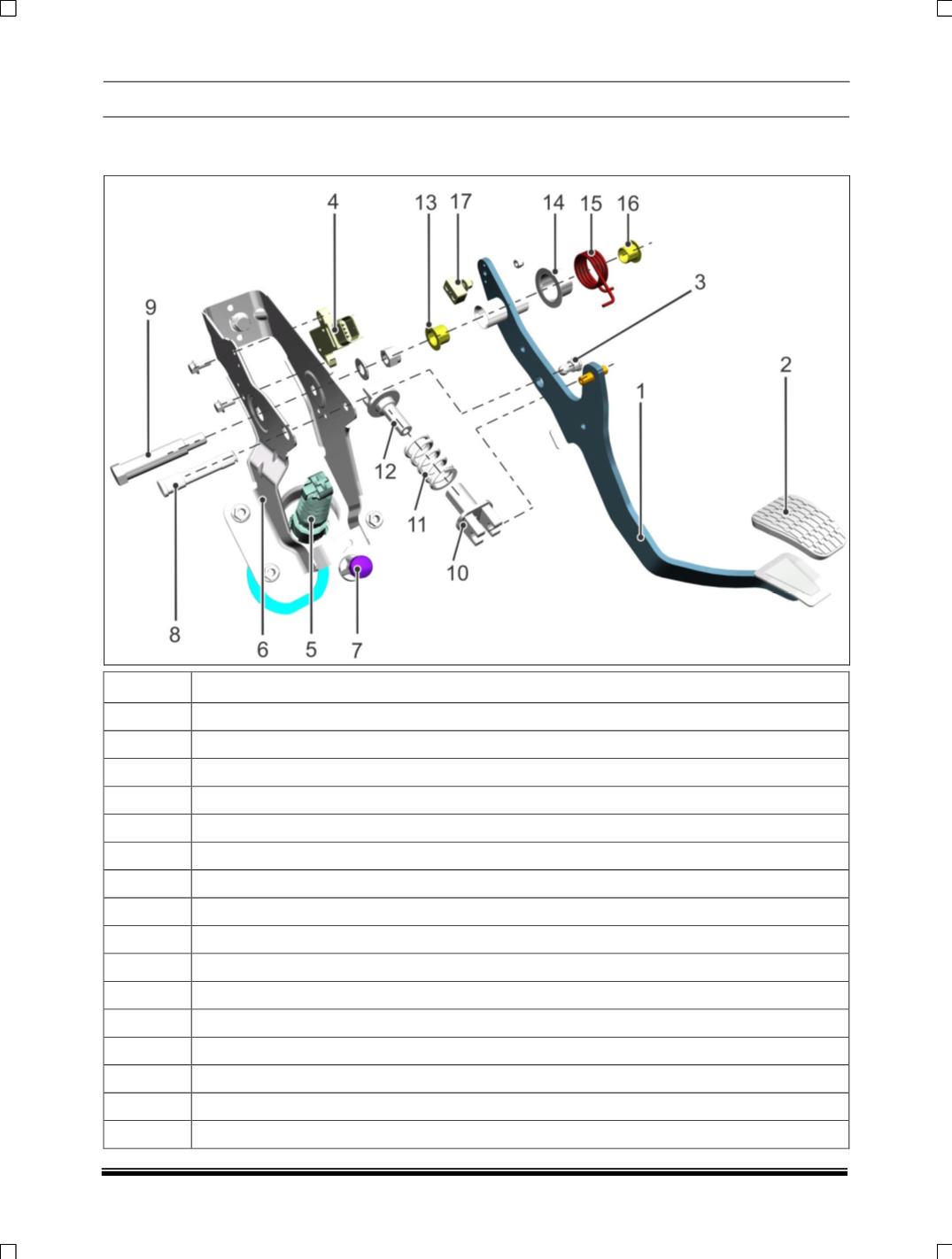

1.9. EXPLODE VIEWS
A. CLUTCH PEDAL ASSEMBLY
ITEM
DESCRIPTION
1
CLUTCH PEDAL ASSEMBLY WITH LEVER
2
CLUTCH PEDAL COVER
3
CLEVIS PIN
4
CLUTCH SENSOR
5
CLUTCH MASTER CYLINDER
6
BRACKET FOR HYD. CLUTCH PEDAL
7
STOPPER CLUTCH PEDAL
8
ASSISTANCE SPRING PIN
9
STEPPED BOLT FOR PEDAL MOUNTING
10
ASSISTANCE SPRING SEAT BOTTOM
11
COMPRESSION SPRING
12
ASSISTANCE GUIDE SEAT, TOP WITH NORGLIDE BUSH
13 & 16
PIVOT BUSH
14
SLEEVE
15
RETURN SPRING FOR CLUTCH PEDAL
17
TARGET MAGNET FOR DUAL CLUTCH SENSOR
