CLUTCH
19

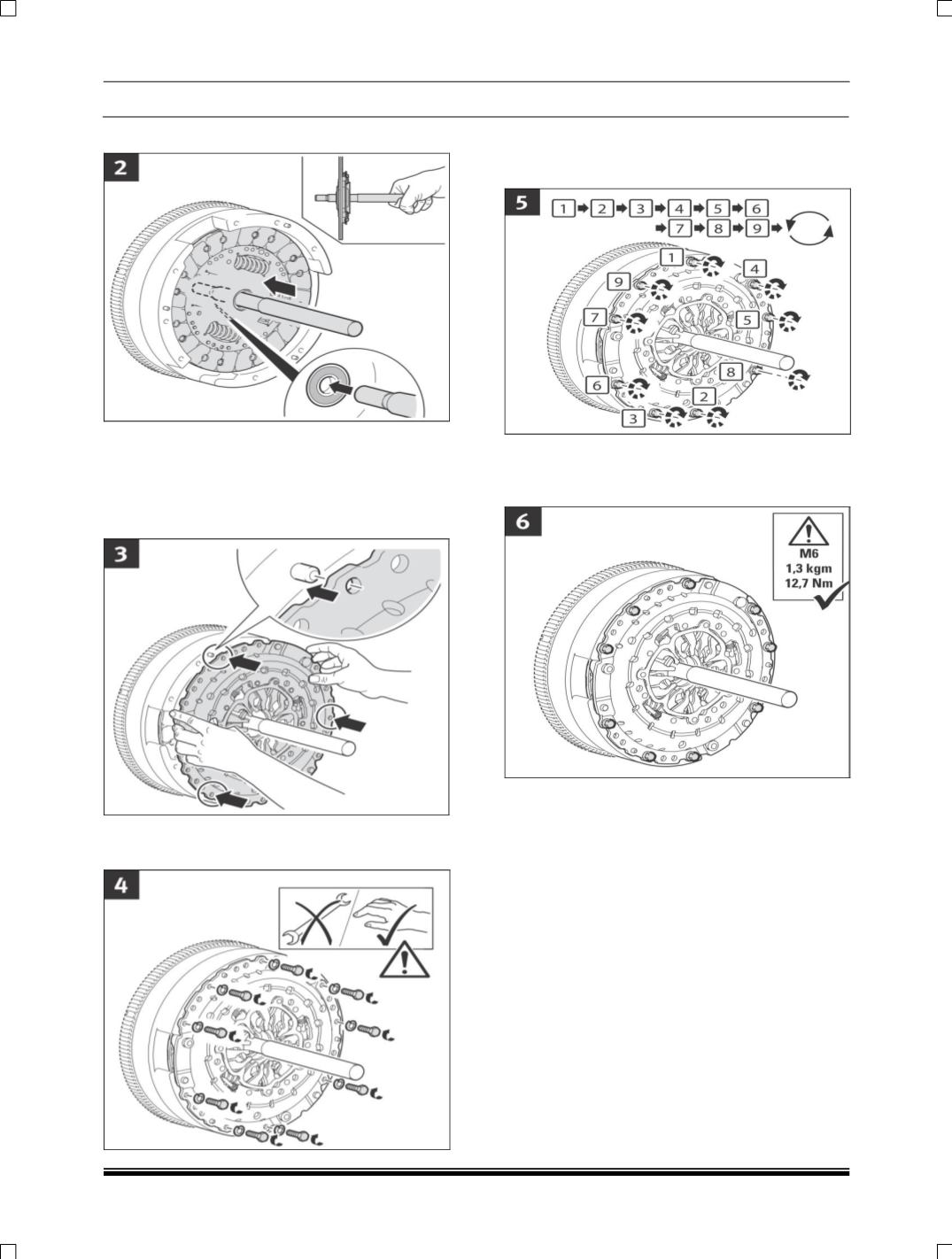

Ensure flywheel free from oil/grease/damage.
Locate SAC assembly on flywheel dowels; align
its mounting holes with tapped holes in the
flywheel.
Ensure SAC is correctly located in three dowel
pins.
Use 9 Nos. Hex Head Screw M6x18 - 10.9 along
with B6 spring washer for SAC mounting.
Aligning mandrel in position.Tighten only two
rounds of each screw at a time as per sequence
shown and repeat the sequence till full tightening.
Tighten these screws in the same sequence to 1.3
mkg.
Ensure correct torque is applied to all the
screws.
Ensure that there is no gap between SAC cover &
flywheel at 6 mounting locations.
NOTE
Do not
mix
clutch mounting bolts with other
fasteners. Do not use longer or shorter screws.
Longer screws may not tighten the clutch at all.
Shorter screws will not provide enough threads to
achieve desired tightening.
While tightening clutch mounting screws check
aligning mandrel for continuous free sliding to
ensure concentric installation of clutch disc which
will avoid trouble during installation of gearbox.
CAUTION
1. Ensure same pair number marking on SAC &
Disc while assembly.
2. Replacement of SAC should be as a set only.
3. Do not replace individual clutch disc or SAC.
