1.5L REVOTORQ ENGINE
203

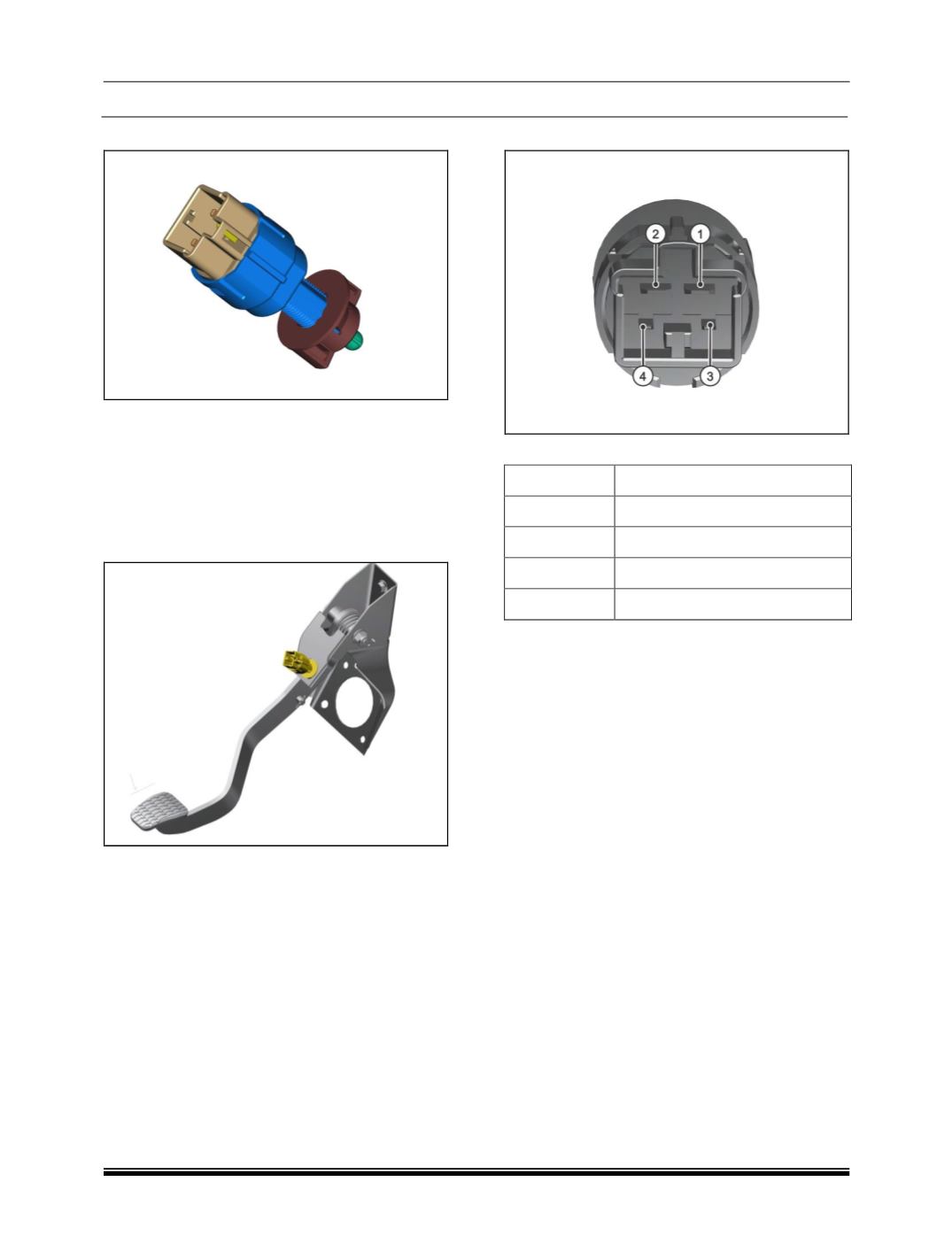

xi. BRAKE SWITCH
It provides information to ECU about the brake
application and ECU maintains the optimum fuel
supply.
Operating Voltage :
8 to 16V
Operating Temperature :
-30
0
C to 85
0
C
Storage Temperature :
-40
0
C to 90
0
C
SENSOR LOCATION
It is located on the clutch pedal.
CONNECTOR DETAILS
PINOUT DETAILS
Pin No
Description
1
Main Brake Switch Signal
2
AC Trinary Pressure Sensor
3
Redundant Brake
4
IGN Sw KL-15
