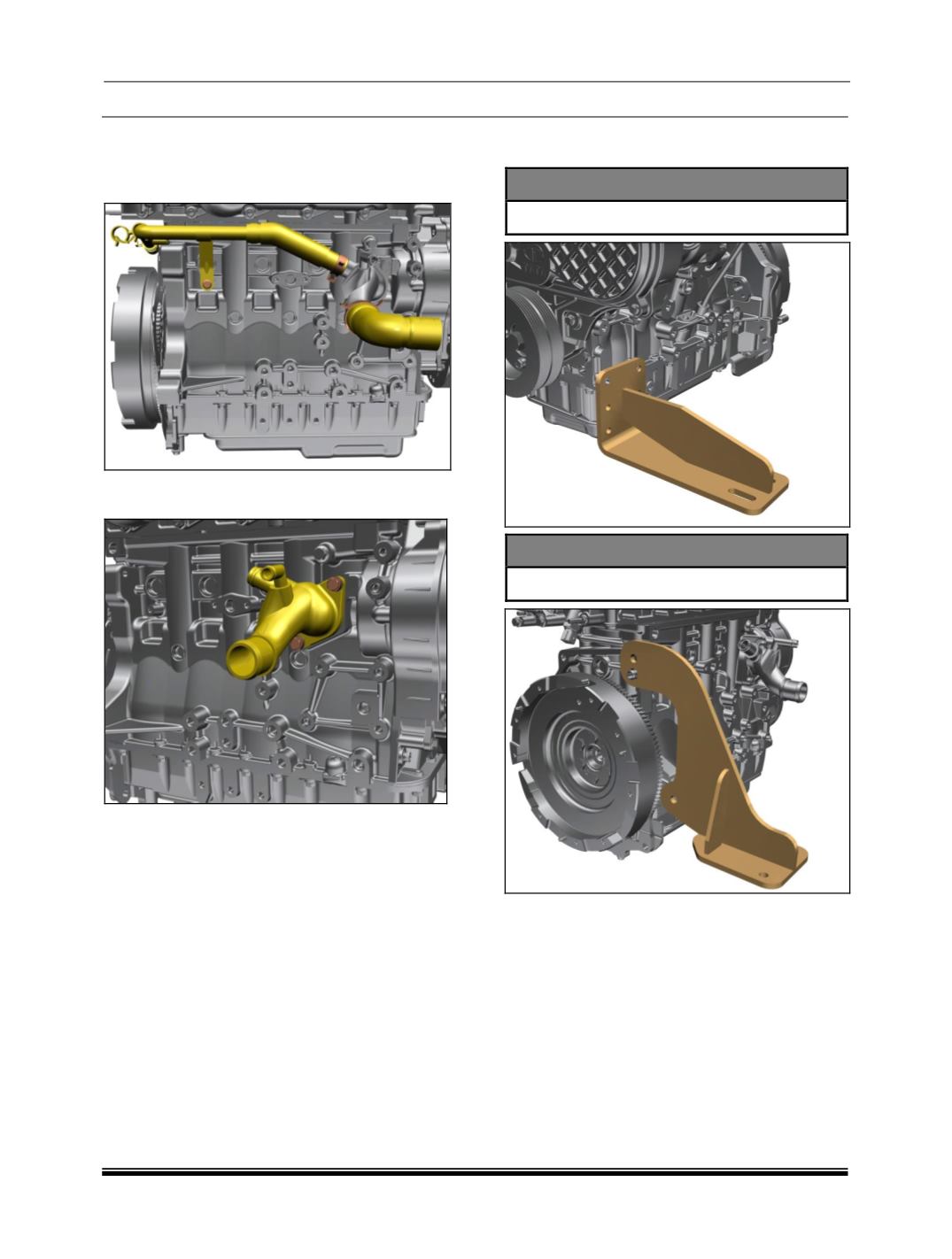

17. Remove the spring clamps of the hoses and
the mounting bolt of support bracket.
Disconnect the hoses from the water housing
elbow.
18. Remove the mounting bolts and take out the
water housing elbow assembly.
19. Fit LH and RH engine mounting bracket to
engine.
SPECIAL TOOL
RH Mounting Bracket -:
5438 5890 2401
SPECIAL TOOL
LH Mounting Bracket -:
5424 5890 2403
20. Mount the engine on overhauling stand.
