1.5L REVOTORQ ENGINE
137

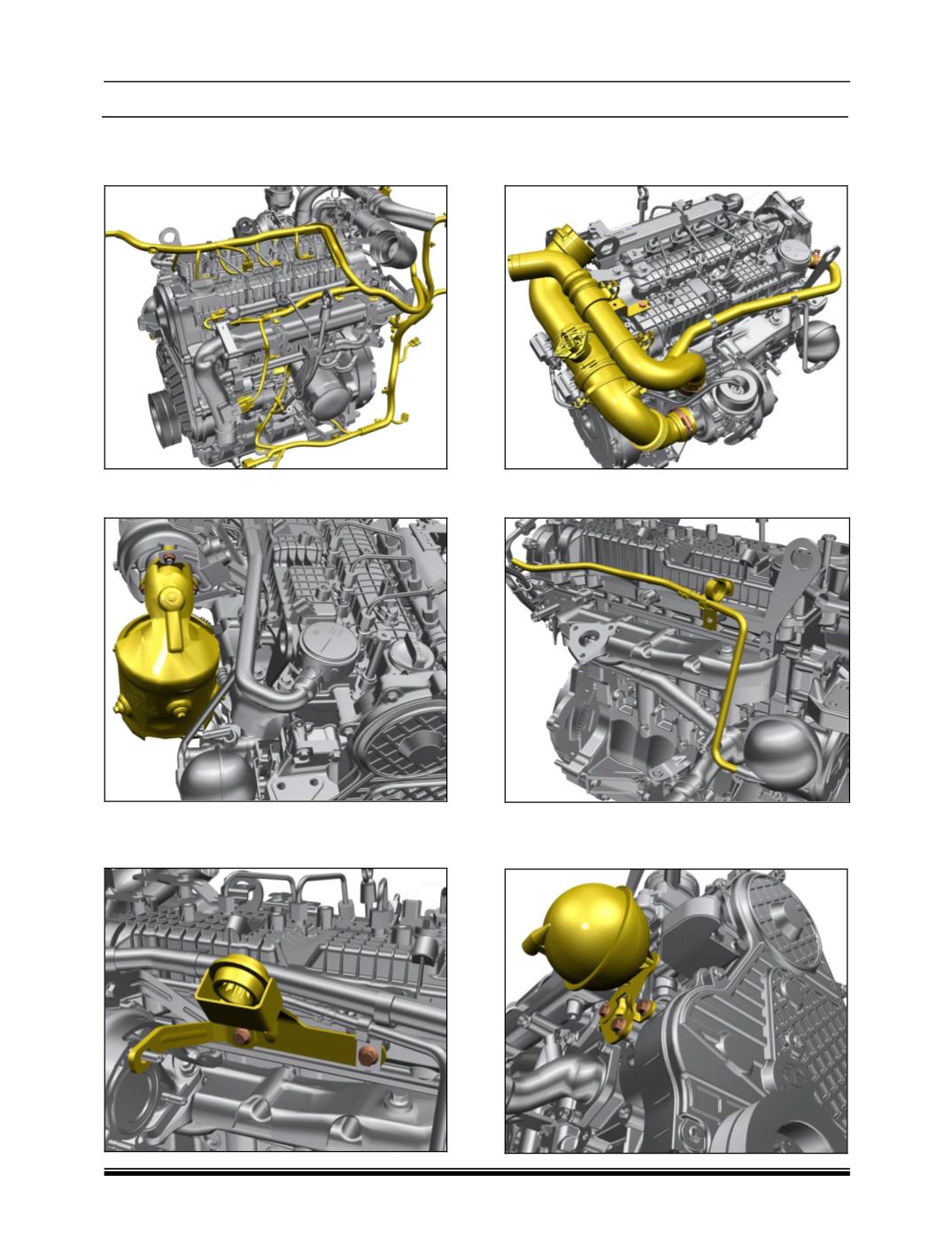

11. Disconnect each electrical connection and
remove the engine wiring harness mounted
on the engine.
12. Remove the mounting fasteners and take out
the catcon assembly.
13. Loosen and remove the mounting bolts of the
air filter mounting bracket and turbocharger
bracket to take it out.
14. Remove the mounting clamps and fasteners
of the hoses connected to turbocharger and
the engine head cover.
15. Disconnect and remove the vacuum pipe
connected to the vacuum reservoir.
16. Remove the mounting bolts of the vacuum
reservoir and the mounting bracket to remove
the assembly.
