1.5L REVOTORQ ENGINE
103

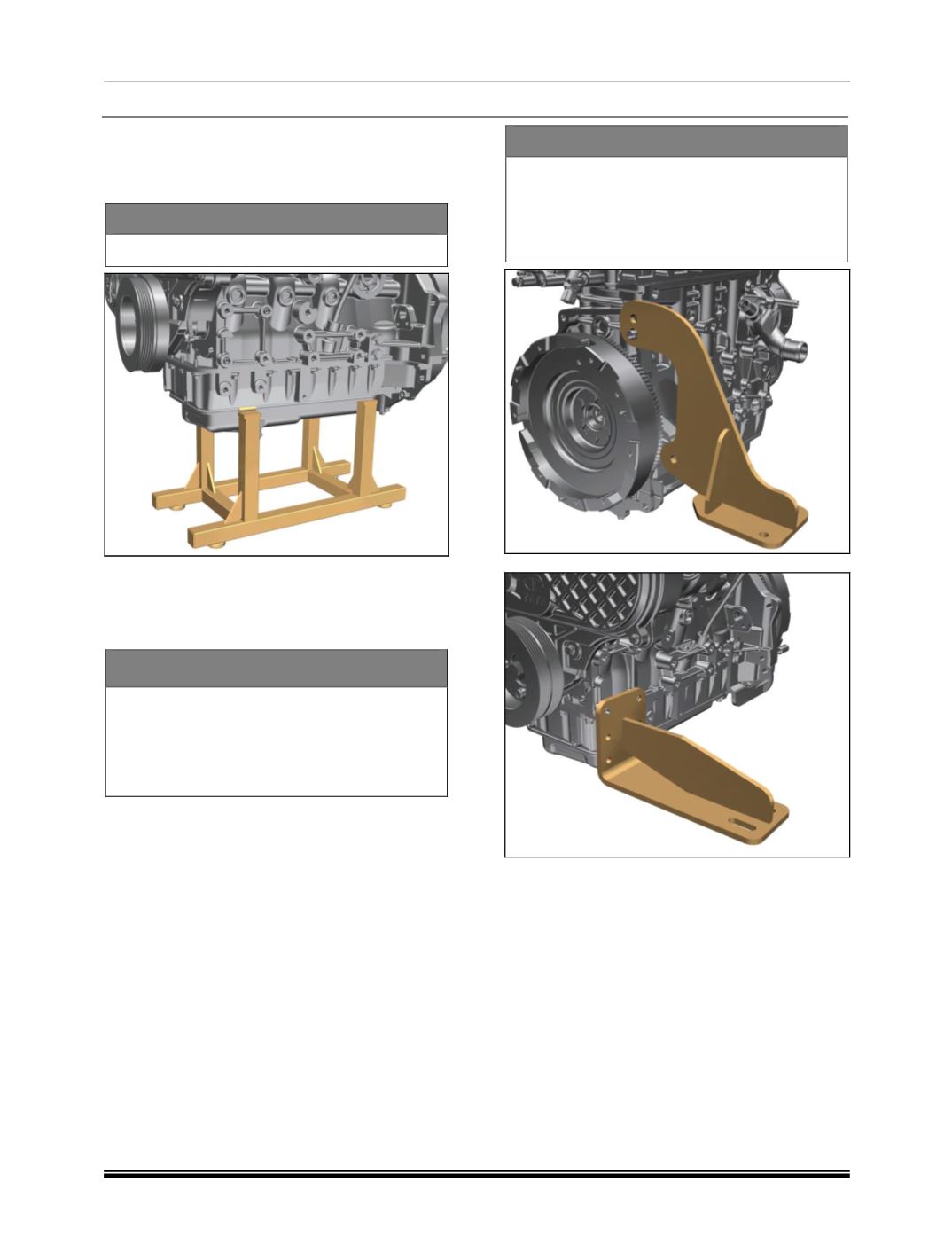

42. Now move the two post lift upwards and place
the support stand, under the engine. (Use a
suitable wooden block or other support for
additional height as necessary.)
SPECIAL TOOL
Engine Support stand -:
5438 5890 2402
43. Now slightly lower the lift until engine and
transaxle assembly is securely placed / fix on
the support stand.
44. Disconnect the lifting crane from the engine.
CAUTION
Take care when raising the vehicle off the
engine and transaxle assembly. Verify all
components and electrical connections are
disconnected prior to raising the vehicle, or
vehicle damage occurs.
45. Now carefully move the lift up.
46. Take out the engine and transaxle assembly
along with support stand.
47. Remove the starter motor, alternator along
with its mounting brackets.
48. Remove the engine wiring harness.
49. Remove the transaxle from the engine.
50. Fix the LH & RH mounting brackets to the
engine.
SPECIAL TOOL
LH Mounting Bracket -:
5424 5890 2403
RH Mounting Bracket -:
5438 5890 2401
51. Safely lift the engine with the help of crane
and fix it on overhaul stand.
