1.5L REVOTORQ ENGINE
83
The Lubrication System consists of the following
components.
1. Oil Pump
2. Oil Filter.
3. Oil Strainer.
4. Oil Cooler.
5. Hydraulic Lash Adjuster (HLA)
6. Piston Cooling Nozzles.
7. Oil Pressure Switch
COMPONENTS

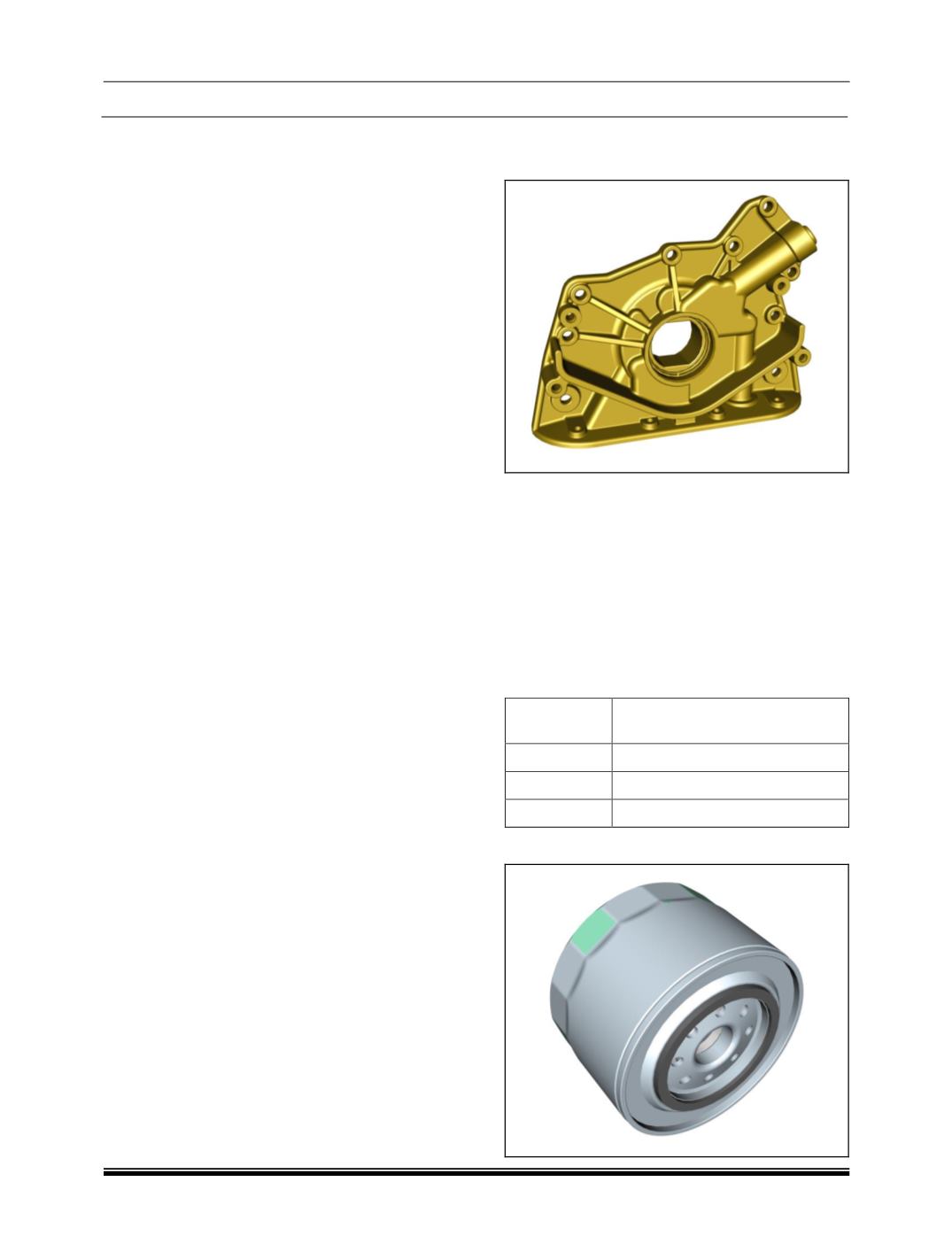

A. Oil Pump
The oil pump is a simple gear pump driven by
crankshaft.
The main function of the oil pump is to circulate oil
through the engine movable components. It sucks
the oil from the oil sump through a strainer which
prevents entrance of any particles into the pump,
and supplies to the oil gallery.
To keep the oil pump from building up too much
pressure, a relief valve is also fitted to the oil pump.
Oil Pump Specifications:
Pump Speed
(in RPM)
FLOW RATE IN LPM (Min) AT
3 bar BACK PRESSURE
800
8
1700
20
4000
45
B. Oil Filter
