Nexon Service Manual

HVAC

Do’s

Don’ts

Risk

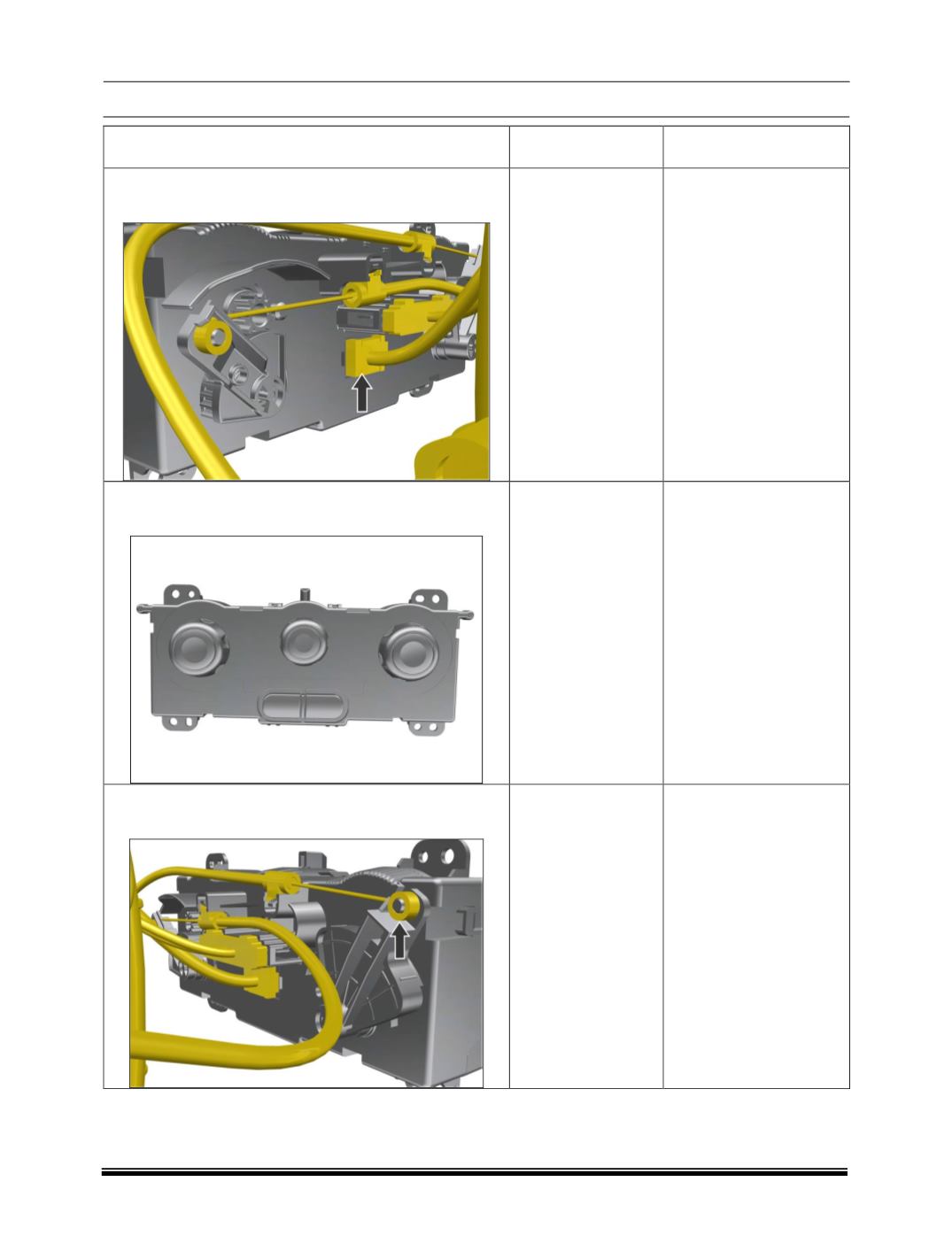

Remove the Temperature mode Bowden cable by snap

unlocking.

Do not remove the

temp mode Bowden

cable without un-

locking.

Snap locked can be bro-

ken if not unlocked

properly.

Rotate the temp knob heating mode end position for ease

of cable removal.

Do not remove

Bowden cable temp

knob before rotating.

Remove the air mode Bowden cable end locking point

from CP knob.

Do not remove the

air mode Bowden

cable without un-

locking

Cable can bend if not

handled properly.
