Nexon Service Manual

HVAC

Do’s

Don’ts

Risk

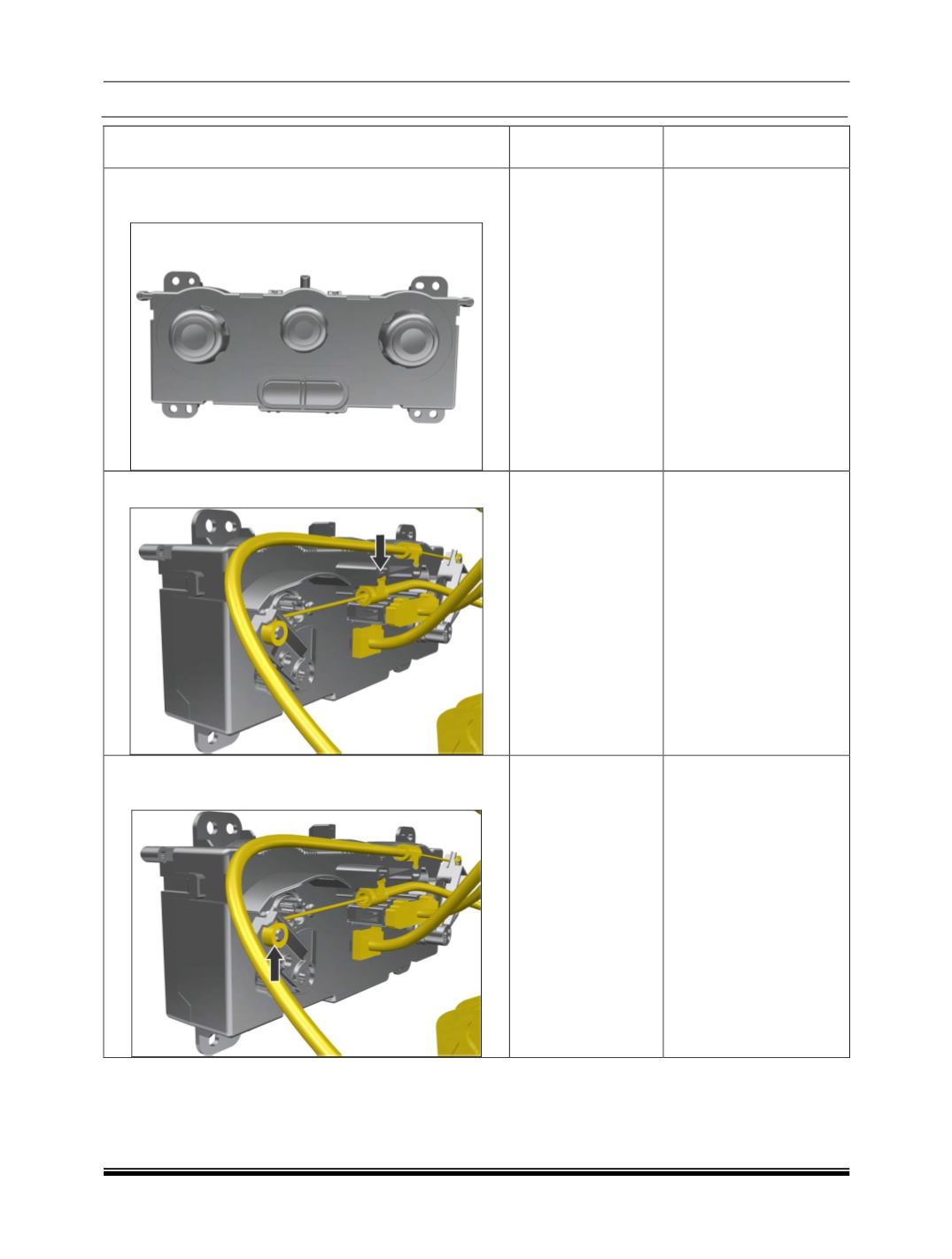

Control panel of HVAC will remove as fitment not possible

on CCB as constrain to console fitment

Do not remove con-

trol panel without

standard process.

Remove the Air mode Bowden cable by snap unlocking.

Do not remove

Bowden cable di-

rectly and do not

pull.

Snap locked can be bro-

ken if not unlocked

properly

Remove the Bowden cable end locking point from CP

knob

Do not pull the

Bowden cable force-

fully

Cable can bend if not

handled properly.
