ELECTRICAL
64

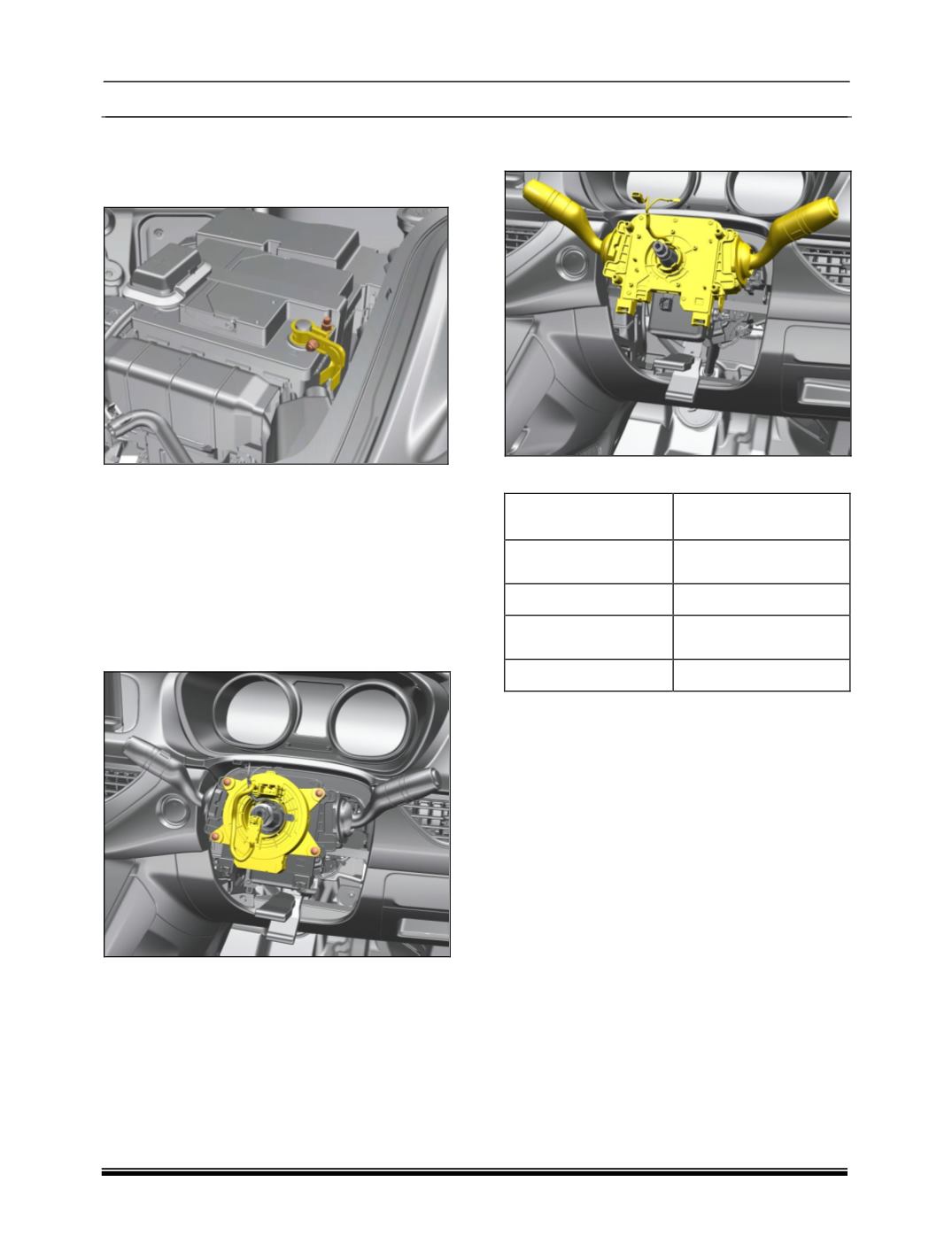

REMOVAL & REFITMENT OF COMBI SWITCH
REMOVAL
1. Disconnect battery negative terminal.
2. Remove steering nacelle. Refer “Removal &
Refitment of steering nacelle" from Steering
Section.
3. Remove steering wheel. Refer “Removal &
refitment of steering wheel" from Steering
Section.
4. Disconnect combi switch connection.
5. Remove Clock Spring by removing screws &
loosen the combi switch clamp screw.
6. Remove combi switch block from steering
column.
TORQUE VALUE TABLE
Component
Tightening torque
value
Combination switch
Clamp screw
3.0 to 5.0 Nm
Clock spring
1.2 Nm
Light Stalk
0.3 to 0.4 Nm
Wipe Stalk
0.3 to 0.4 Nm
REFITMENT
1. Refit combination switch block properly
on steering column.
2. Refit combination switch block mtg. Clip.
3. Refit Clock Spring.
4. Reconnect combination switch connection.
5. Refit steering wheel.
6. Refit Steering nacelle.
7. Refit Battery negative terminal.
