ELECTRICAL
59

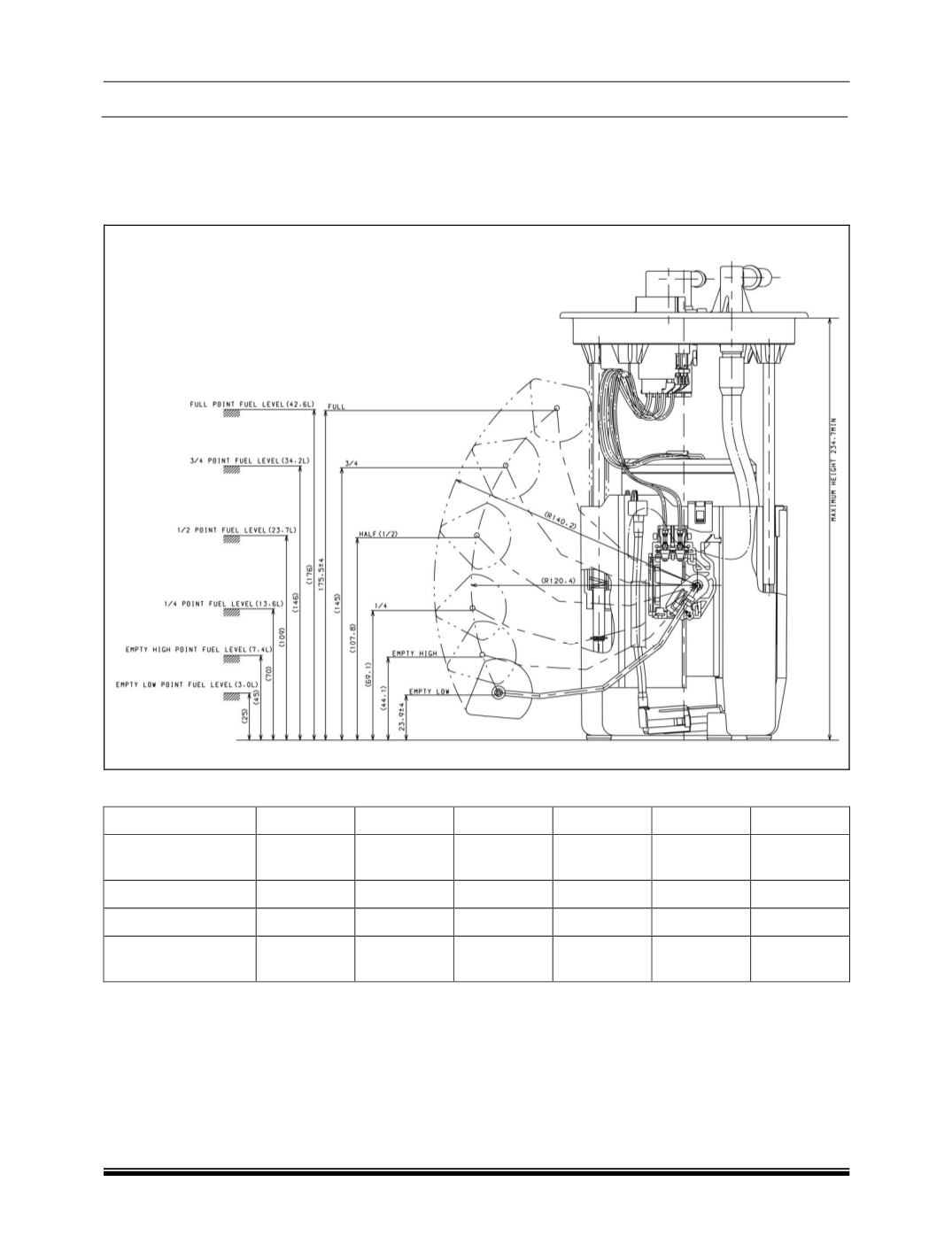

INSPECTION OF FUEL GAUGE
Use an ohmmeter to confirm that the resistance of the fuel level sensor changes with the level of float
position. The specified resistance values of the fuel gauge are given below.
A. PETROL VARIANT
The specified resistance values of fuel level sensor w.r.t fuel tank level given in below table:
Float Position
Full
3/4
Half
1/4
Empty High Empty Low
Resistance value in
Ohms
8
34
58
89
100
120
Tolerance in Ohms
± 2
± 2
± 2
± 2
± 2
± 2
Height in mm
175.5
145
107.8
69.1
44.1
23.9
Volume (Liters)
(Usable)
42.6
34.2
23.7
13.6
7.4
3
