1.7.4 HEAD LAMP
PINOUT DETAILS

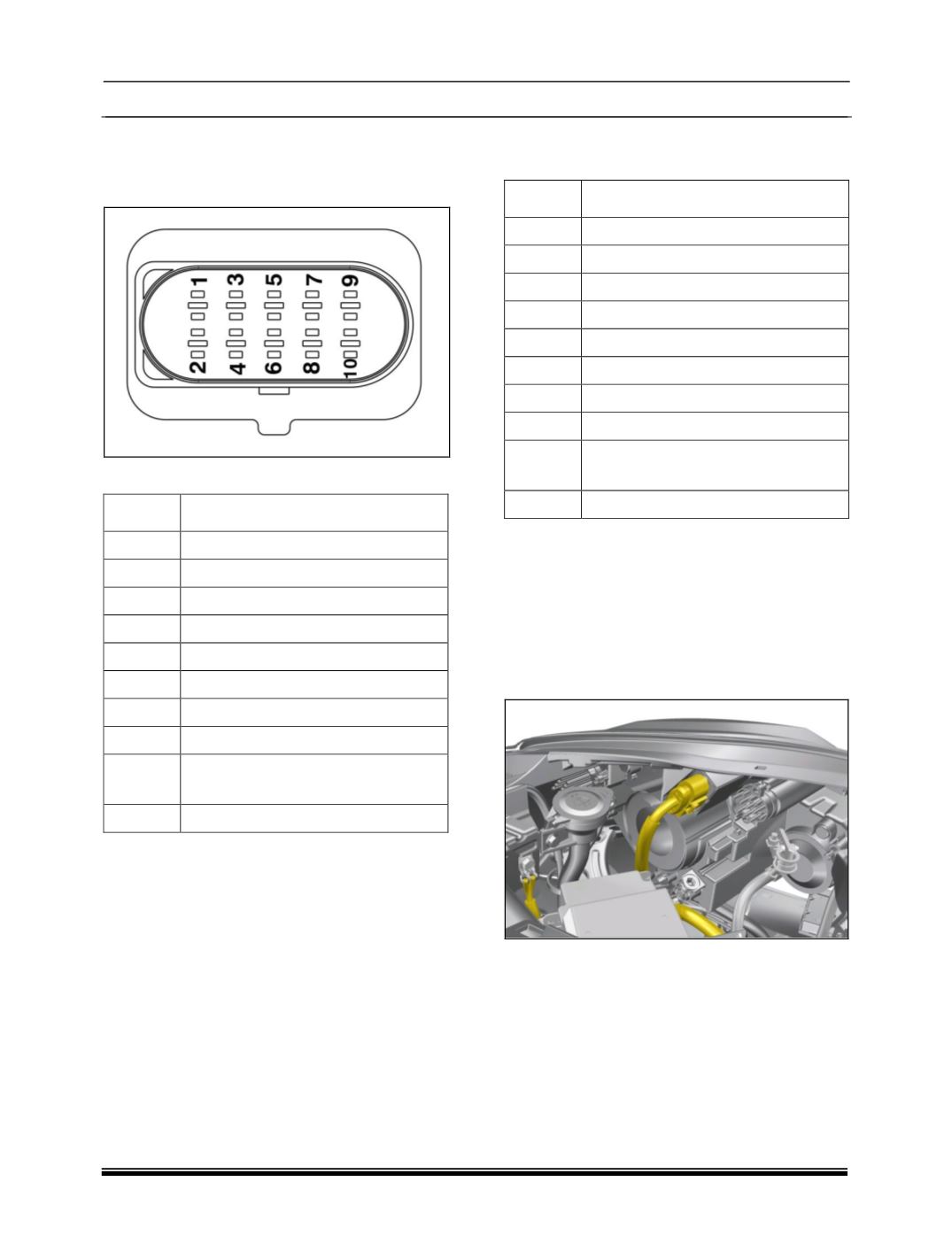

Head lamp connector
i. Without DRL version
PIN
DESCRIPTION
1
Low Beam
2
High Beam
3
Turn Indicator
4
Dummy
5
Position Function
6
Dummy
7
Internal VAC +VE
8
Internal VAC Signal
9
Ground
( LOW + HIGH+TURN+VAC+POS)
10
Dummy
ii. For DRL version
PIN
DESCRIPTION
1
Low Beam
2
High Beam
3
Turn Indicator
4
DRL function
5
Position Function
6
Ground (DRL + Position)
7
Internal VAC +VE
8
Internal VAC Signal
9
Ground
( LOW + HIGH+TURN+VAC+POS)
10
Dummy
REMOVAL AND REFITMENT OF HEAD LAMP
REMOVAL
1. Open engine hood & ensure all lamps are in
OFF condition.
2. Remove front bumper. Refer "Removal & Re-
fitment of Front bumper" from Body Section.
3. Disconnect head lamp connectors.
