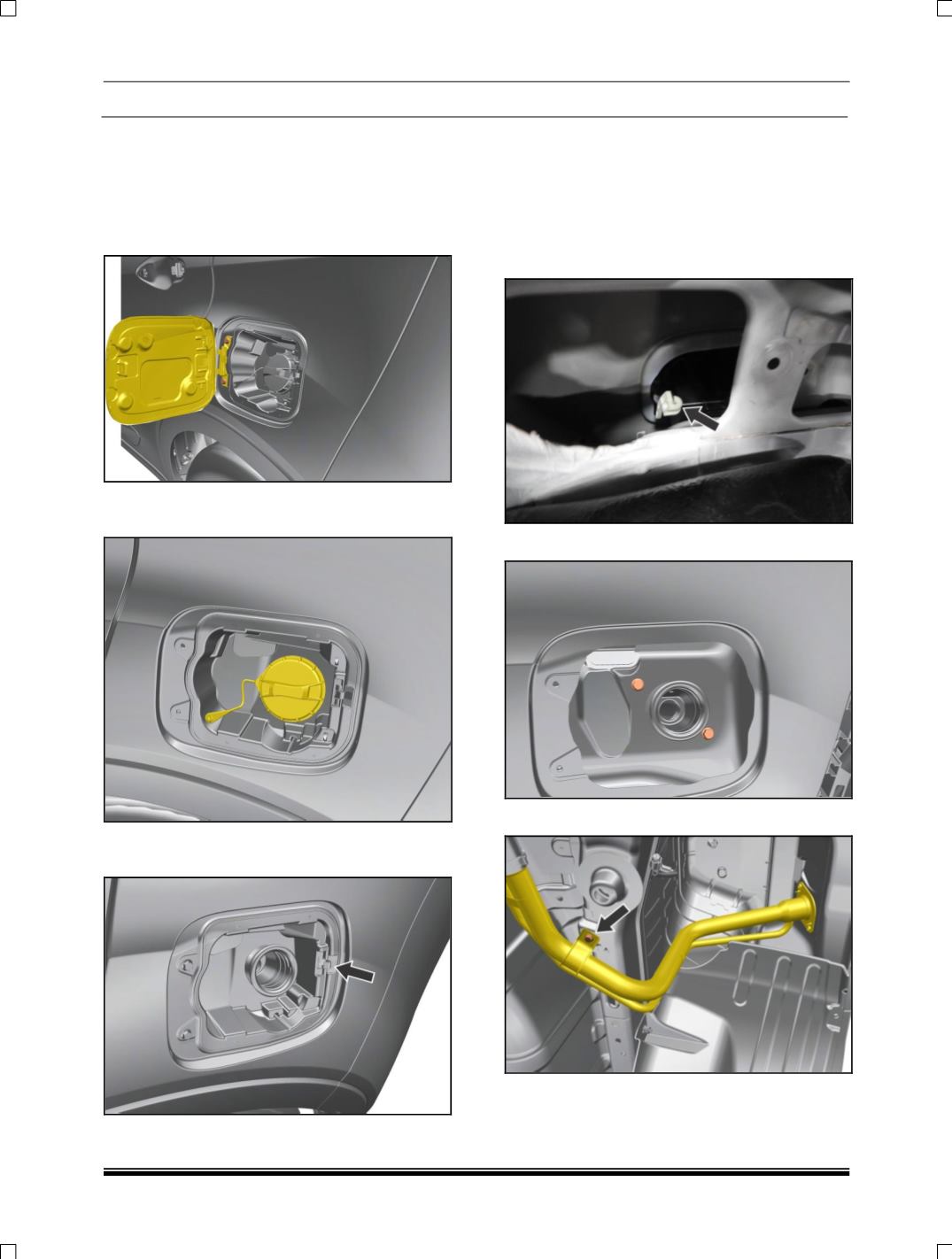

1.4.38. FUEL FILLER ASSEMBLY.
REMOVAL
1. Open fuel LID complete assembly.
2. Loosen and Remove two mounting screw of
fuel LID assembly and remove the assembly.
3. Pull out the filler cap chord from its location
and remove the filler cap.
4. Remove mounting screw of Fuel LID Latch
assembly.
5. Remove C Pillar (for procedure refer removal
C pillar process).
6. Disconnect Fuel LID Cable from Fuel LID
Latch.
7. Disconnect Fuel LID Cable from Fuel LID
Lever and pull it out from the luggage
compartment.
8. Remove two mounting bolts of clamping plate.
9. Remove Filler Pipe Mounting Bracket screw.
