1.5L REVOTORQ ENGINE
140

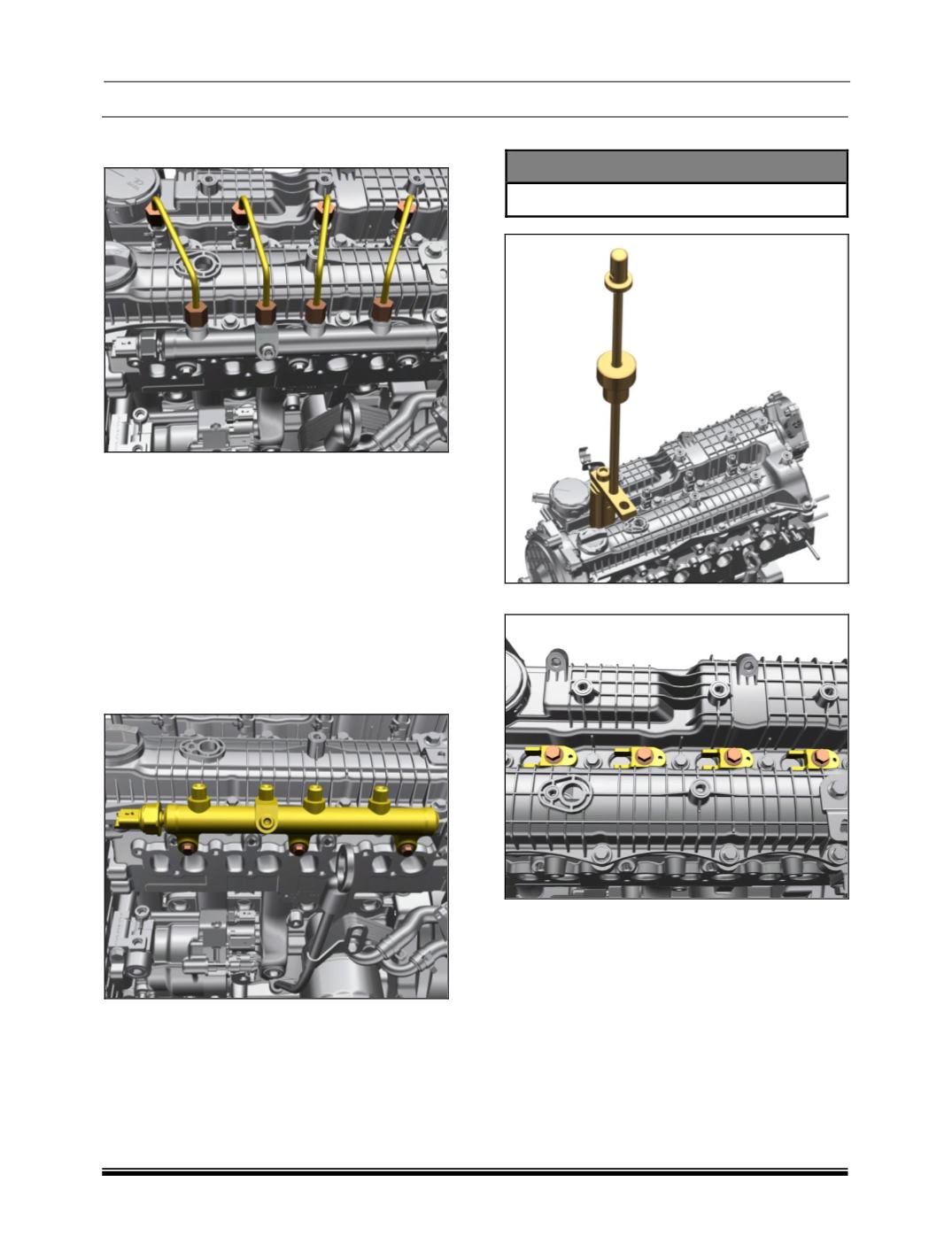

7. Remove the high pressure fuel lines
connecting the fuel injectors.
NOTE
Cover the opening of the fuel rail and fuel
injectors with suitable plugs.
After removing the HP pipes cover the
injectors and fuel lines opening with suitable
caps.
Do not reuse the HP pipes once removed;
use new HP pipes at the time of assembly.
Remove Wiring harness connector of
injectors.
8. Remove the mounting bolts of the fuel rail and
take it out.
9. Remove the injectors using special tool.
SPECIAL TOOL
Injector Puller -: 5422 5890 01 02
10.Remove the injector clamps.
