1.5L REVOTORQ ENGINE

139

ii. REMOVAL OF INTAKE MANIFOLD

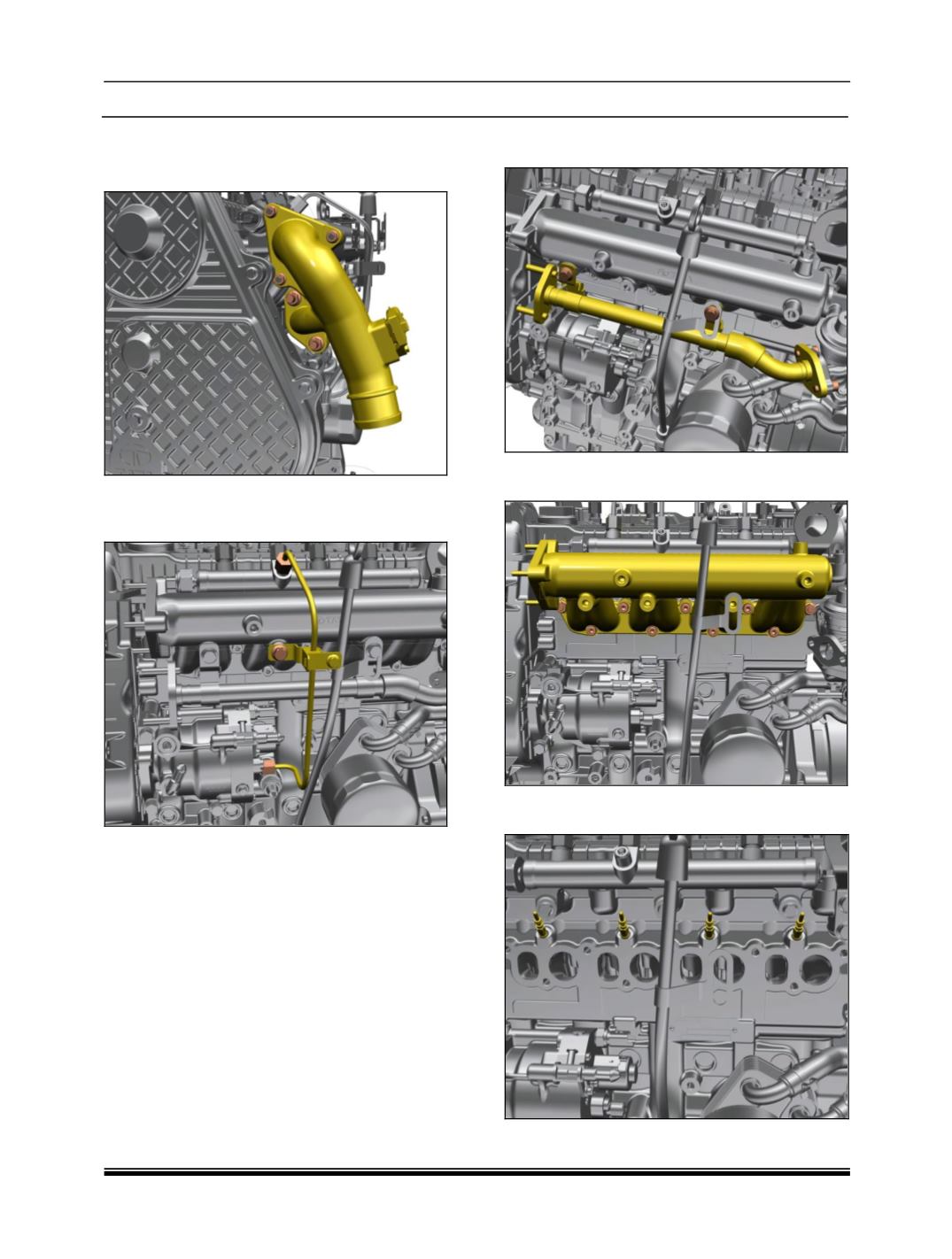

1. Remove the mounting fasteners of the air

intake elbow and remove the elbow.

2. Remove the mounting bracket and the H.P.

fuel line connected to the fuel rail by removing

its mounting fasteners.

NOTE

Cover the opening of the fuel rail with suitable

plugs.

3. Loosen and remove the mounting fasteners

and take out the EGR tube assembly.

4. Loosen and remove the mounting fasteners

and take out the intake manifold assembly.

5. Remove the glow plugs from the cylinder head

using suitable tools.

6. Disconnect the back leak hose assembly.
