1.2L REVOTRON ENGINE

138

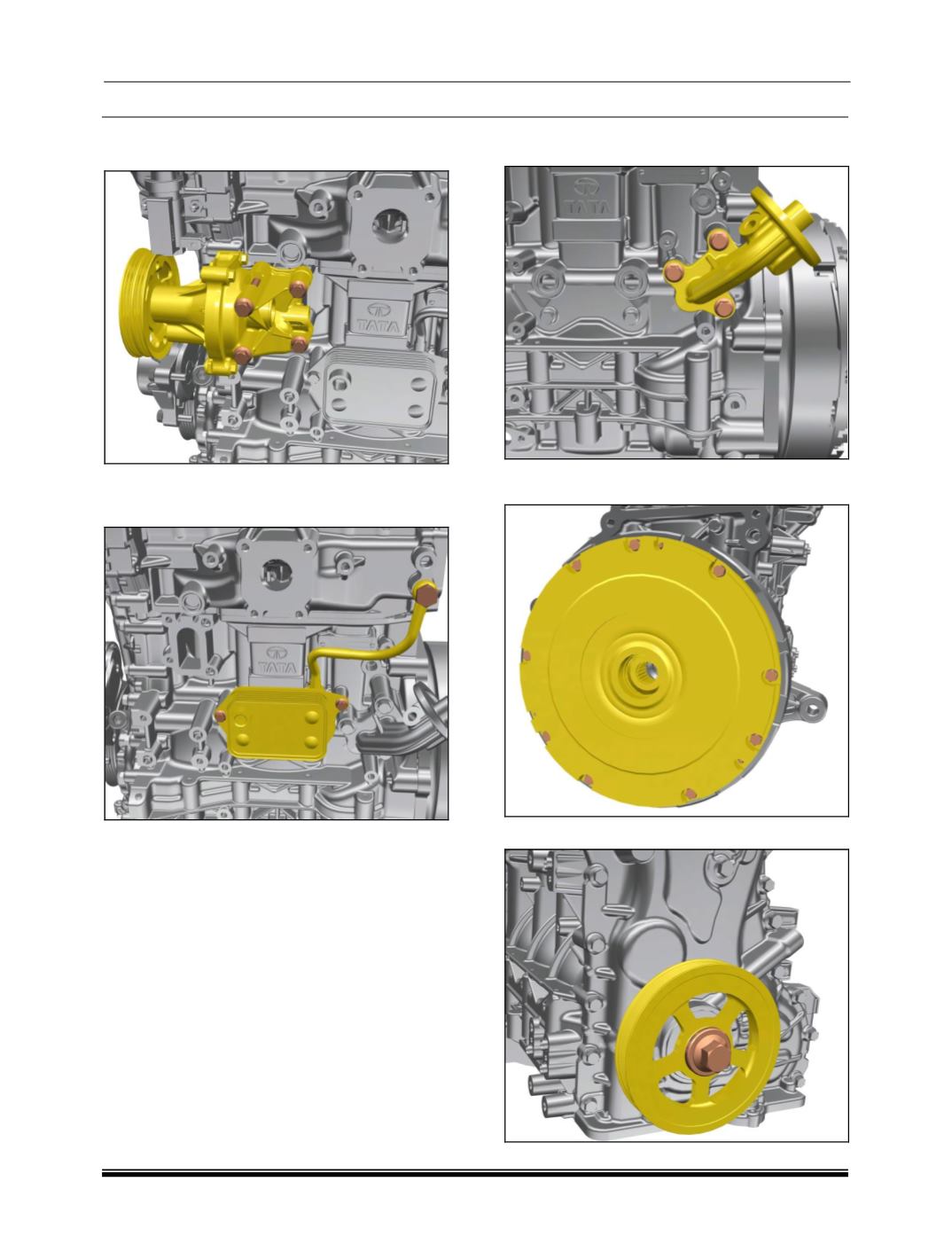

9. Remove the water pump by removing the four

fasteners.

10. Disconnect the oil cooler outlet hose and

remove the two mounting bolts to take out the

oil cooler assembly.

11. Remove the mounting bolts to take out the oil

filter holder.

12. Remove the mounting bolts and locating pin

to unmount the clutch cover assembly.

13. Remove the crankshaft pulley.
