1.2L REVOTRON ENGINE
119

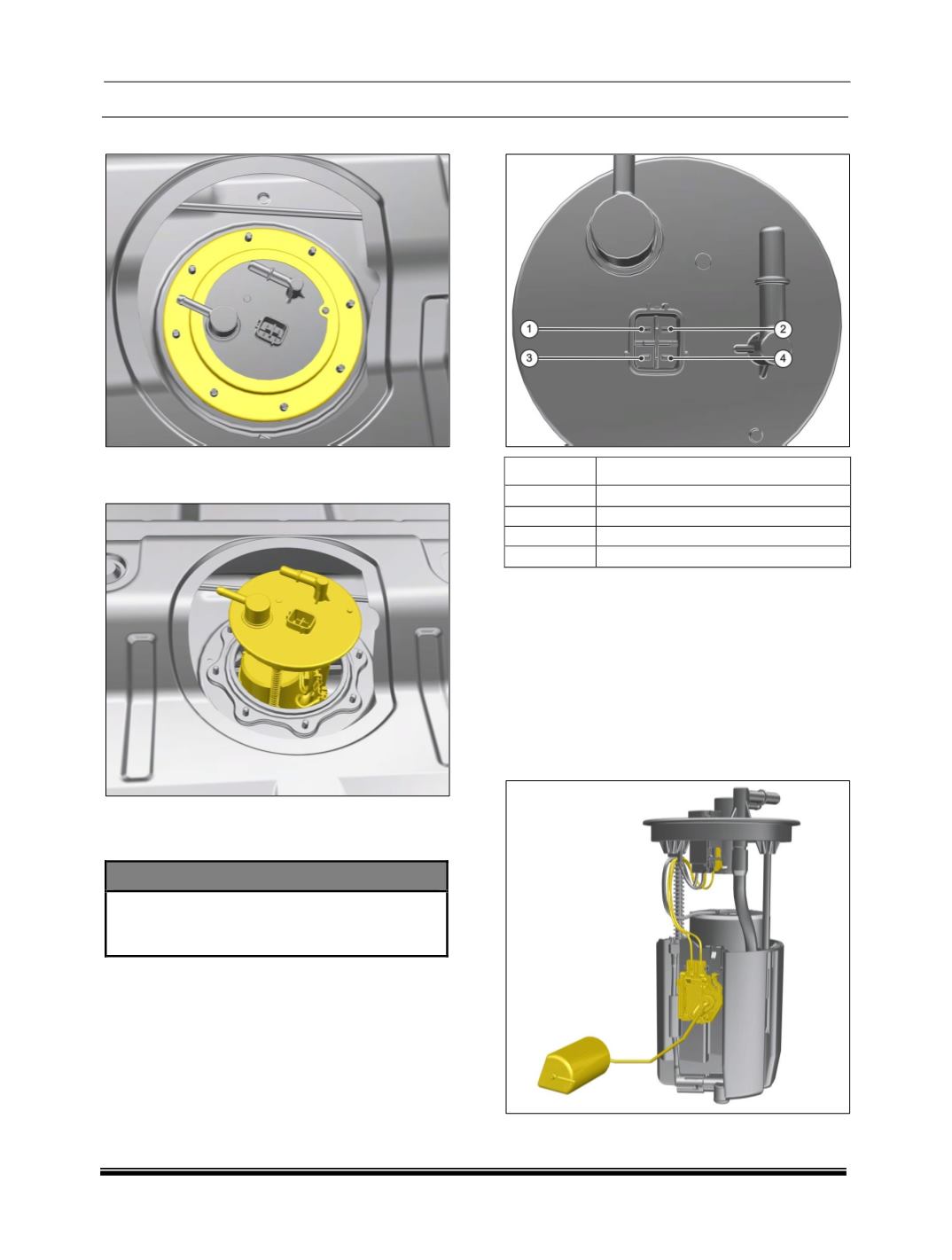

7. Remove the locking ring.
8. Lift the in-tank pump carefully out from the
tank.
FITMENT
Follow the reverse order of removal for fitment.
INSPECTION
Use multimeter to confirm that the resistance of
the fuel level sensor changes with the level of
float position.
PINOUT DETAILS
Pin No
Function
1
Gauge (-)
2
Gauge (+)
3
Pump (-)
4
Pump (+)
Measure the resistance in pins B and C. refer next
page for values at different heights of the float.
FUEL LEVEL SENSOR
REMOVAL
1. Remove the tank unit.
(For Removal Refer
Tank Unit removal process).
2.
Disconnect the electrical connection and
remove the fuel level sensor by releasing the
snap.
