NEXON

1.2L REVOTRON ENGINE

F. FUEL SYSTEM



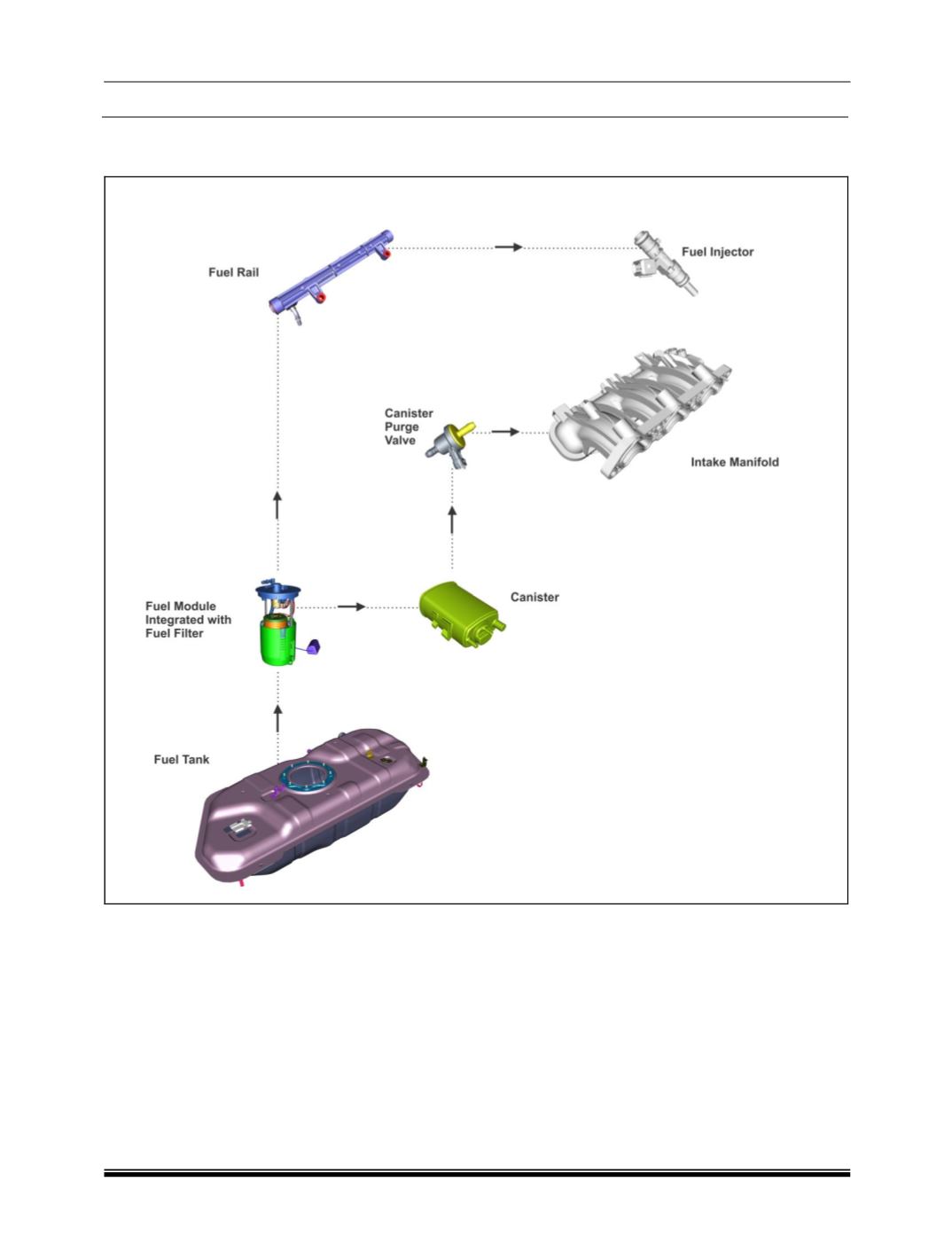

Fuel system circuit

The Fuel system circuit consists of the following components to perform its function in all conditions

1. Fuel Tank

2. Fuel Module integrated with Fuel filter

3. Fuel Lines

4. Fuel Rail

5. Fuel Injector

6. Canister

7. Purge Valve

8. Intake Manifold
