1.2L REVOTRON ENGINE
91
D. EXHAUST SYSTEM

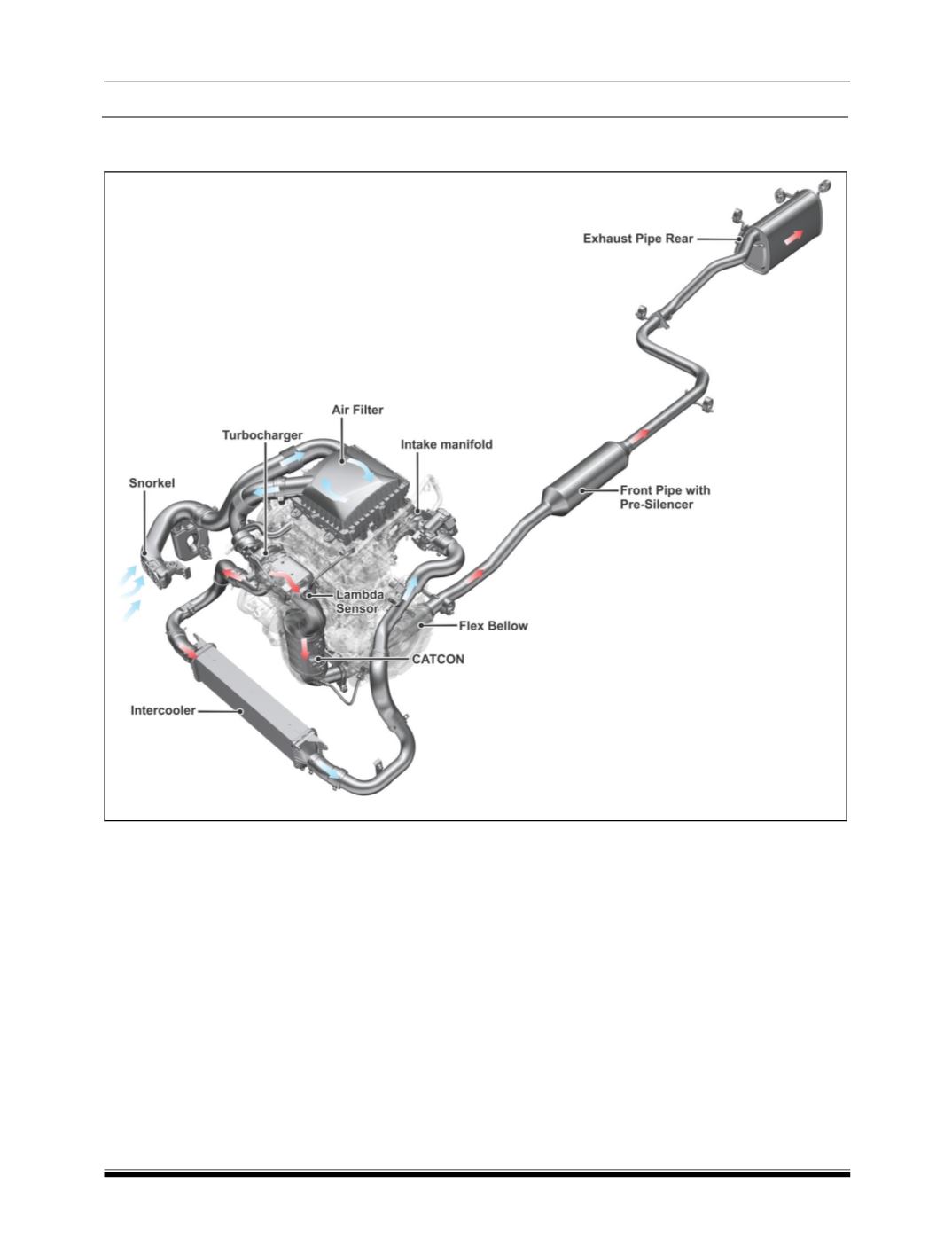

Exhaust System Schematic Layout
1
Turbocharger
5
Front Pipe with Pre-silencer.
2
Upstream Lambda Sensor
6
Exhaust Pipe Assy, Rear
3
Close Coupled Catalytic Convertor (CCC)
7
Rubber Hanger
4
Downstream Lambda Sensor
Description
The exhaust system consists of an Exhaust
manifold, Close Coupled Catcon Assy (CCC)
Presilencer and Rear Silencer. The exhaust pipes
are supported using rubber hangers.
The Close Coupled Catcon (CCC) is provided to
reduce the exhaust emission, whereas the
presilencer and rear silencer is provided to
dampen the sound of the exhaust gases coming
out of the engine.
The exhaust system consist of the following
components
1. Exhaust Manifold
2. Upstream Lambda Sensor
3. Close Coupled Catalytic Convertor (CCC)
4. Downstream Lambda Sensor
5. Front Pipe with Pre-silencer
6. Exhaust Pipe Assy, Rear
7. Rubber Hanger
