1.2L REVOTRON ENGINE
65

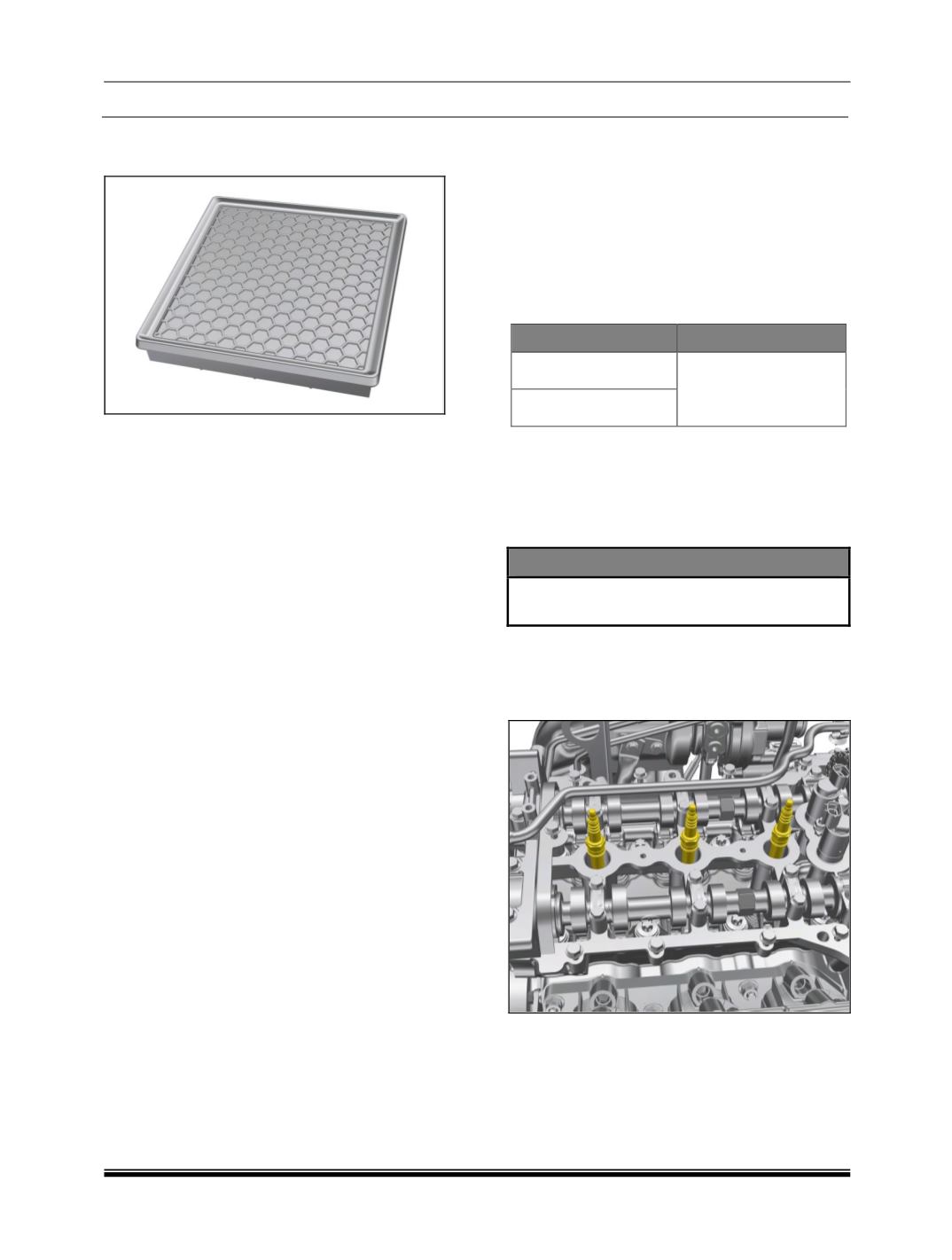

5. Detach the cover through hinge action.
6. Remove the air filter element.
INSPECTION
1. Hold the air filter element up to a light
source. Light should be visible through the
element. There should be no holes or tears
in the element.
2. The filter can also be cleaned using low
pressure compressed air.
3. Replace the filter element if torn or light is
not visible through the filter.
INSTALLATION
1. Place the air filter element.
2. For re-assembling the cover, please ensure
that all the hinge lugs are properly
assembled in the slot of the air filter housing
body, before tightening the screws.
IV. SPARK PLUG REPLACEMENT
DESCRIPTION
Engine spark plugs are an integral part of engine
performance and fuel economy. Worn,
damaged, or spark plugs with excessive carbon
buildup may cause the engine not to start,
misfire, or cause poor fuel economy. Replace
the spark plugs as a set every 30,000 km or
sooner as needed using the part numbers and
gap setting in Table.
Spark Plug Part No.
Gap Setting (mm)
BOSCH, YR5NII33S
0.7 - 0.8
BOSCH, YR5ME0
REMOVAL
1. Park the vehicle on a level surface, engage
the parking brake, and raise the hood.
2. Clean any dirt and debris from around the
spark plugs and spark plug ignition coils.
NOTE
To avoid confusion, remove and replace
one spark plug at
a
time.
3. Disconnect the spark plug top coil from the
spark plug by gripping the boot and pulling.
4. Use M16 Socket to remove the spark plug
from the cylinder head.
