1.1.5. COMPONENTS OF HVAC

1.1.5.1. CONTROL PANEL

NOTE

The removal and installation of all components are

covered in “On Vehicle Repairs” in this section.

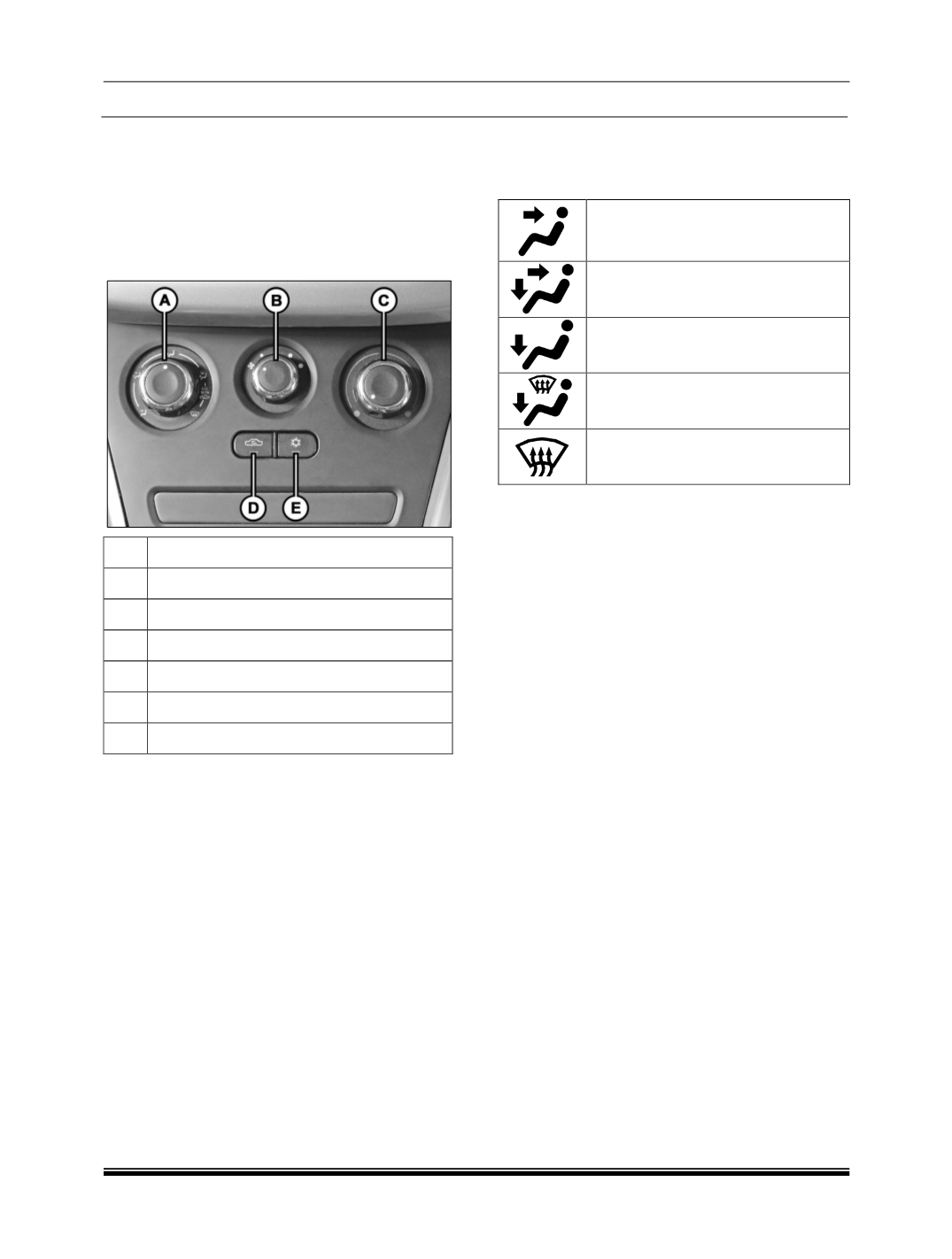

MANUAL HVAC CONTROL PANEL

ROTARY KNOBS

A Air Distribution Control

B Blower Speed Control

C Temperature Selection

PUSH BUTTONS

D Fresh / Recirculation Air Mode

E AC On / Off

The HVAC control panel consists of 3 rotary knobs &

2 Push buttons that can be used to set the required

temperature inside the cabin. In addition to this the

control panel also acts as a control unit for the HVAC

system in which all the software calibrations are em-

bedded.

A. AIR DISTRIBUTION CONTROL

The mode knob is used to select the air delivery

mode. There are 5 different modes as given below.

Chest Mode

Chest – Leg Mode

Leg Mode

Leg – Defrost Mode*

Defrost Mode*

NOTE

When the Leg- defrosts or defrost mode is selected,

the HVAC control unit will select the recommended

settings for best performance of the selected func-

tion. These settings can be overridden by manual

intervention.

(For details, refer HVAC layout and

working).

A. BLOWER SPEED CONTROL

The Fan speed selector allows the user to select four

blower speeds – LO, M1, M2 and HI. An OFF posi-

tion is also provided to shut the system off.

B. TEMPERATURE SELECTION

The temperature selector knob can be used to select

the required temperature varying from full cold

(on

the extreme anti-clockwise)

and full hot

(on the ex-

treme clockwise)

C. FRESH / RECIRCULATION AIR

This push button can be used to position the Air inlet

door, either to allow fresh air to come inside the cab-

in or to recirculate the air within the cabin.

D. AC ON / OFF

The air-conditioning ON / OFF switch is located on

the control panel. Press the switch to decrease the

air temperature inside the cabin. The indicator lamp

on the switch glows when the switch is in “ON” posi-

tion. The blower motor must be running for the

indicator lamp to glow.

When it is pressed once AC ON

(Amber LED glows)

is selected and if pressed again AC switches OFF.

This is also helpful to defrost / defog the windshield

in case of high air humidity.
