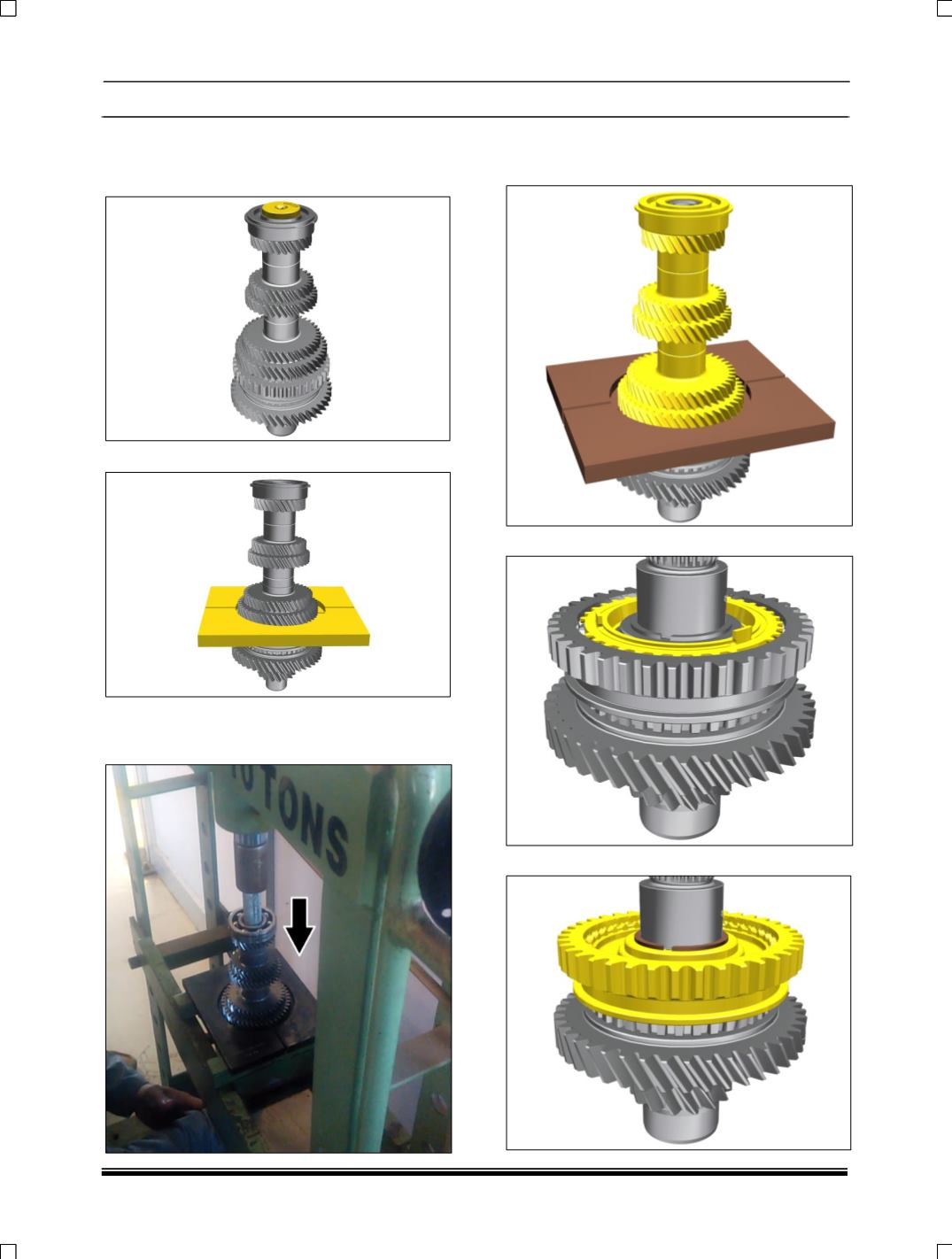

B. LAY SHAFT DISASSEMBLY:
1. Hold in bench voice and remove locking
screw of lay shaft.
2. Install support plate 5438 5890 2602.
3. Place lay shaft assembly on hydraulic press
with support plate & press lay shaft as shown.
Hold lay shaft from bottom.
4. Take out 6
th
, 5
th
, 4
th
,3
rd
& 2
nd
gear, needle
cage & support plate separated from lay shaft
from press
5. Take out twin cone assembly 1
st
/2
nd
.
6. Remove snap ring & take out engaging gear.
