532 / 1131
TRANSAXLE TA6300
33

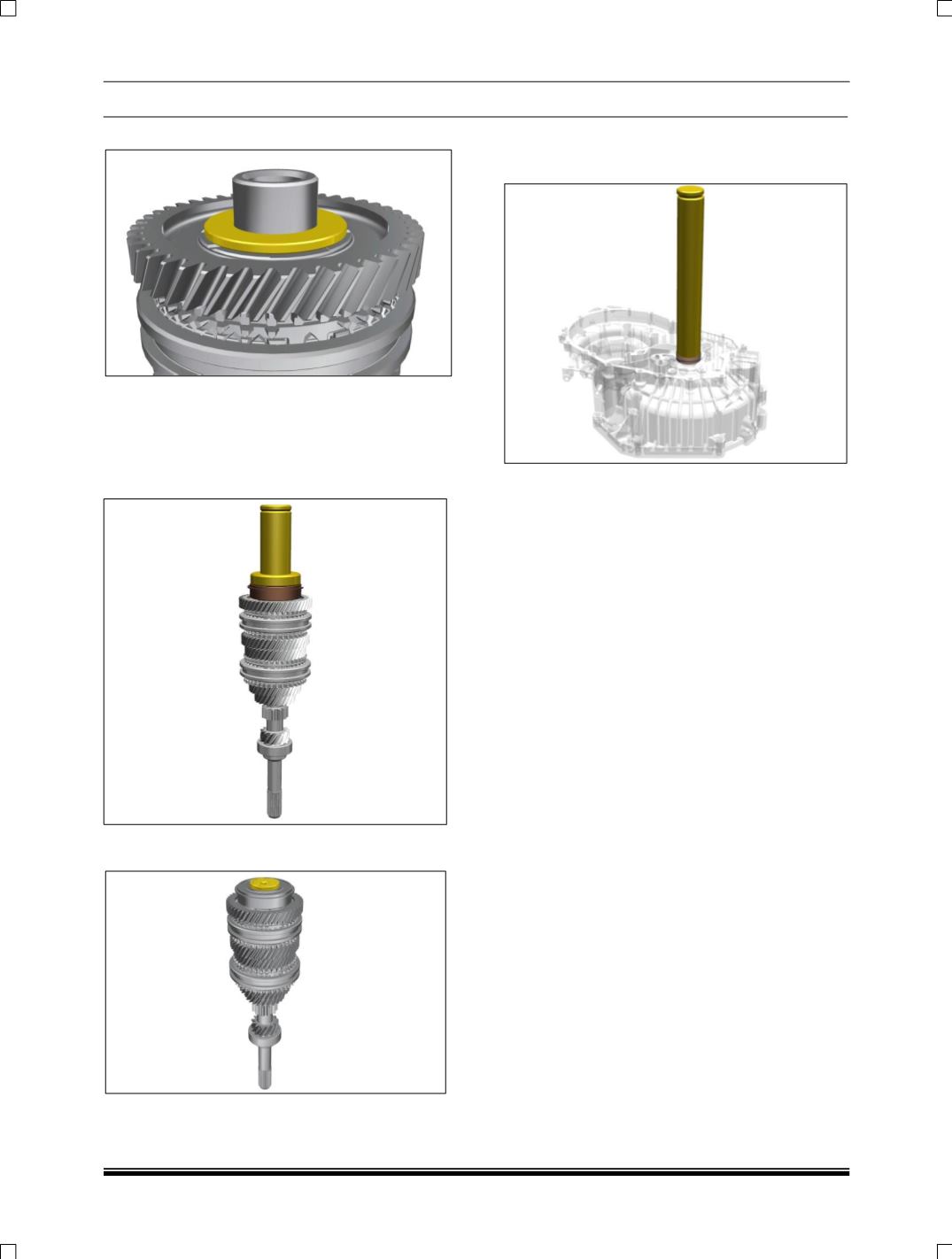

9. Place the bush 6th gear on Input shaft.
ASSY DEEP GROOVE BALL BEARING WITH
LOCKING SCREW
1. Place and fit deep groove ball bearing (rear)
on input shaft using drift part no. 2870 5890
3256 with taper groove for Lock Plate in
upward direction.
2. Tighten the Assy with Locking screw M20 x
1.5.
3. Press cylindrical roller bearing outer race on
housing front half-using drift part no 5438
5890 2604.
