NEXON

FATC

INSPECTION

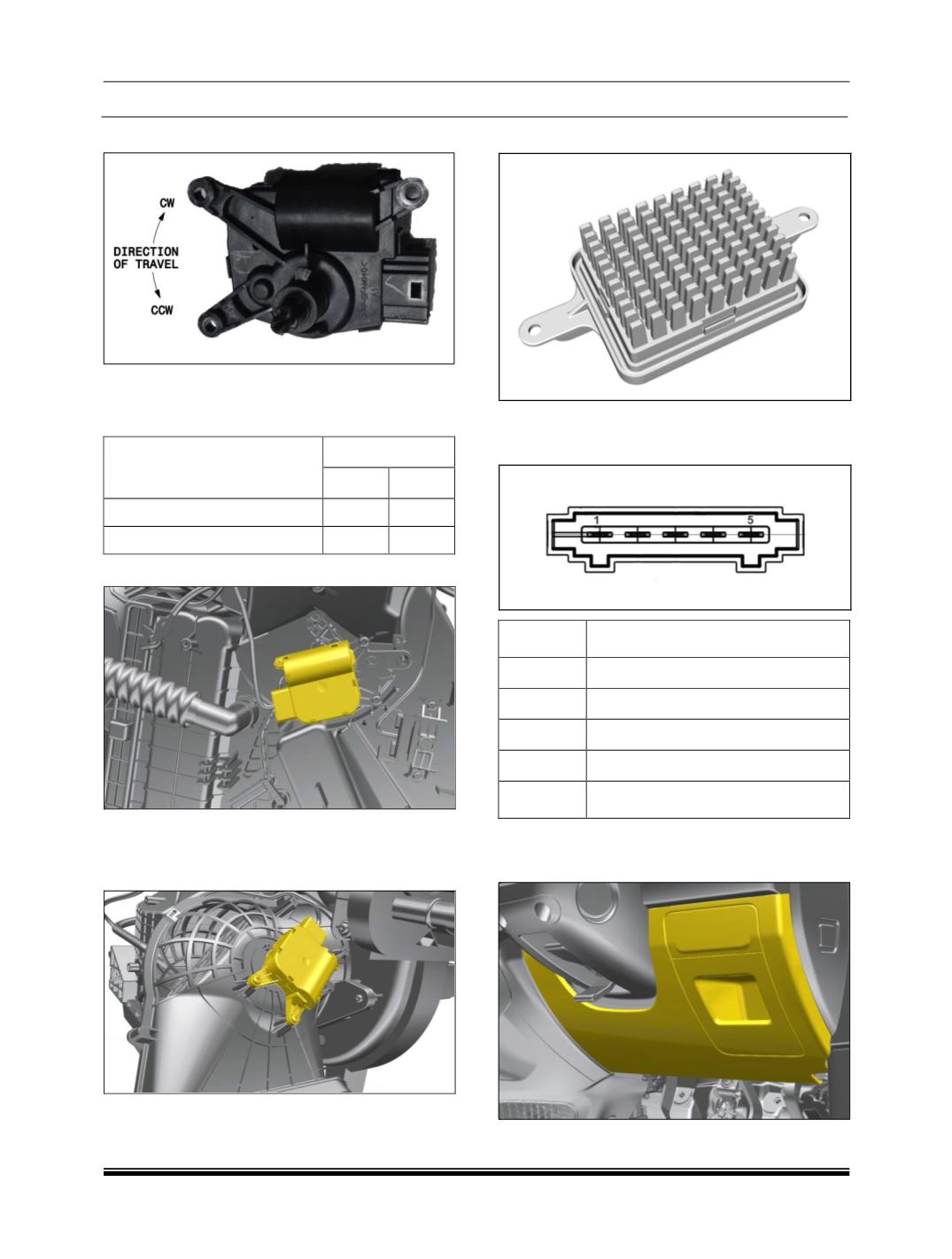

When 12.0V supply is given to pin 5 and pin 6, the

movement of the actuator should follow the below

table.

Motor Movement

Input

Pin 5

Pin 6

Clockwise rotation

+ VE

- VE

Counter Clockwise rotation - VE

+ VE

1. Temperature Actuator

To operate heater flap inside HVAC Unit, this flap

diverts Hot & cold air inside HVAC Unit.

2. Fresh / Recirculation Actuator

This actuator operates the flap inside Fresh air inlet;

this flap opens/closes the vent for outside air into

HVAC unit.

F. BLOWER CONTROL MODULE

It is mounted on evaporator housing.

PINOUT

PIN NO

DESCRIPTION

CONTROL

DIAGNOSTICS

- MOTOR

+ BAT

GND

REMOVAL

1. Remove steering column cover.
