ELECTRICAL
237

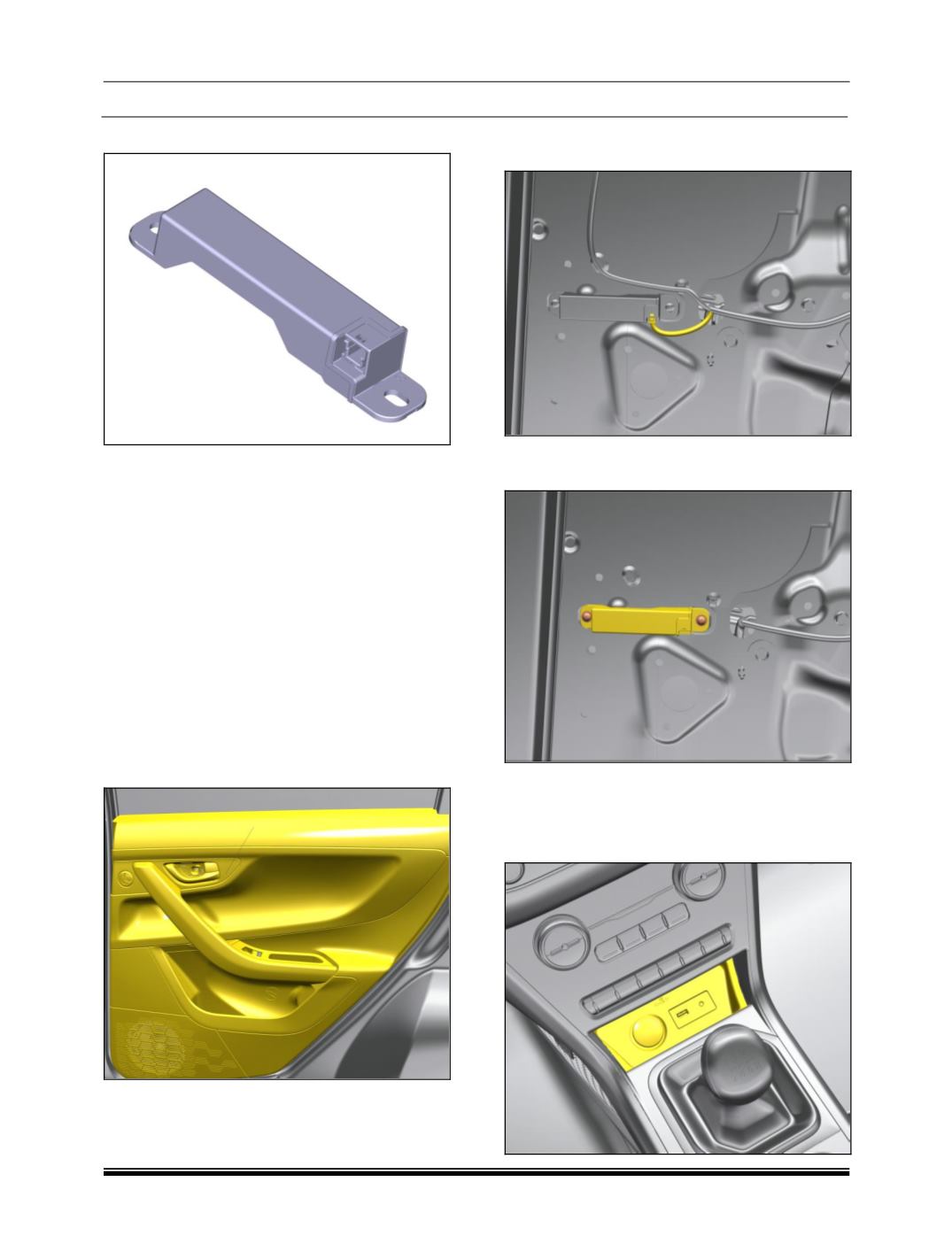

1.31.5 LF ANTENNAS
LF antennas are responsible for detection of valid
Smart Key. These are responsible for LF
transmission for valid smart key searching
inside/outside the vehicle for Passive Start Stop
and Passive Entry.
LOCATION
LF antenna is located at following
A. RH rear door antenna.
B. Centre console antenna.
C. Tailgate antenna
REMOVAL
A. RH rear door antenna.
1. Remove the door trims.
(Refer door trims
removal for the procedure in Body Section)
.
2. Disconnect the electrical connection to the LF
antenna.
3. Remove the mounting fasteners and take out
the LF antenna.
B. Centre console antenna.
4. Pry out the lower front console bin along with
USB and power socket. (
Refer Body Section
for removal procedure).
