ELECTRICAL

236

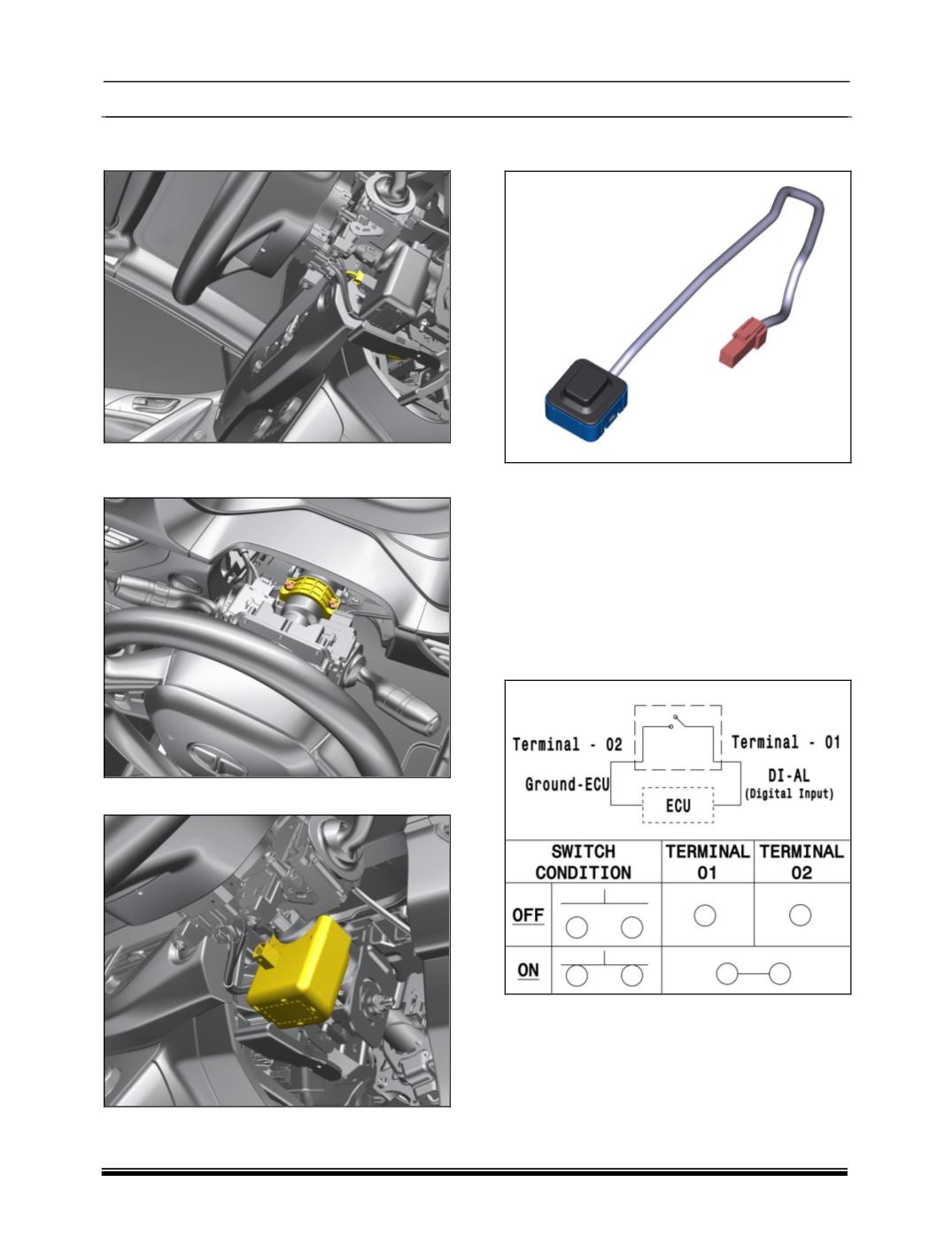

2. Disconnect the electrical connection to the

ESCL.

3. Remove the ESCL mounting bracket’s dome

screw (2 qty.).

4. Take out the ESCL unit.

REFITMENT

Follow the removal process in reverse.

1.31.4 DOOR HANDLE SWITCHES WITH

HARNESS

Door handle switches are responsible for

accessing vehicle doors for passive entry.

LOCATION

Three switches are available in vehicle –

1. Driver door switch

2. Co-driver door switch,

3. Tail gate switch

CIRCUIT SCHEMATICS

REMOVAL

For removal refer door handle switch and tailgate

switch removal in above sections.
