DTC’s confirmation:-
After rectification, ensure the following points using TML diagnostic tool before handing over to customer
.
a) DTC should not be in ECU fault memory.
Connector View & Information: -

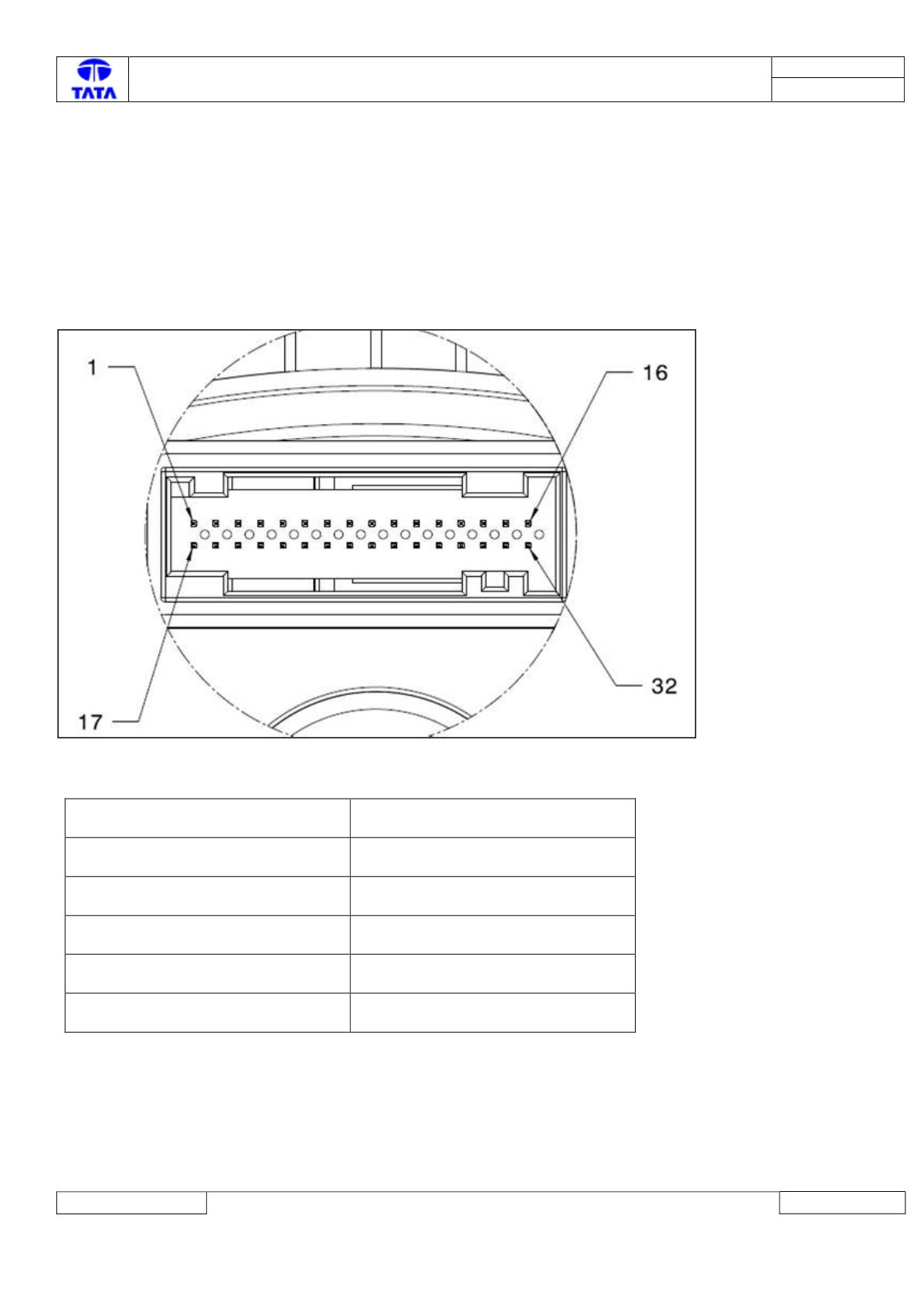

IPC ECU side connector diagram
ECU Pin assignment:-
Description
ECU pin
CAN_H chasis
6
CAN_L chasis
5
Battery
1
Ignition input
22
Battery ground
24
