DTC’s confirmation:-
After rectification, ensure the following points using TML diagnostic tool before handing over to customer.
a)
DTC should not be present in ECU memory.
Connector View & Information: -

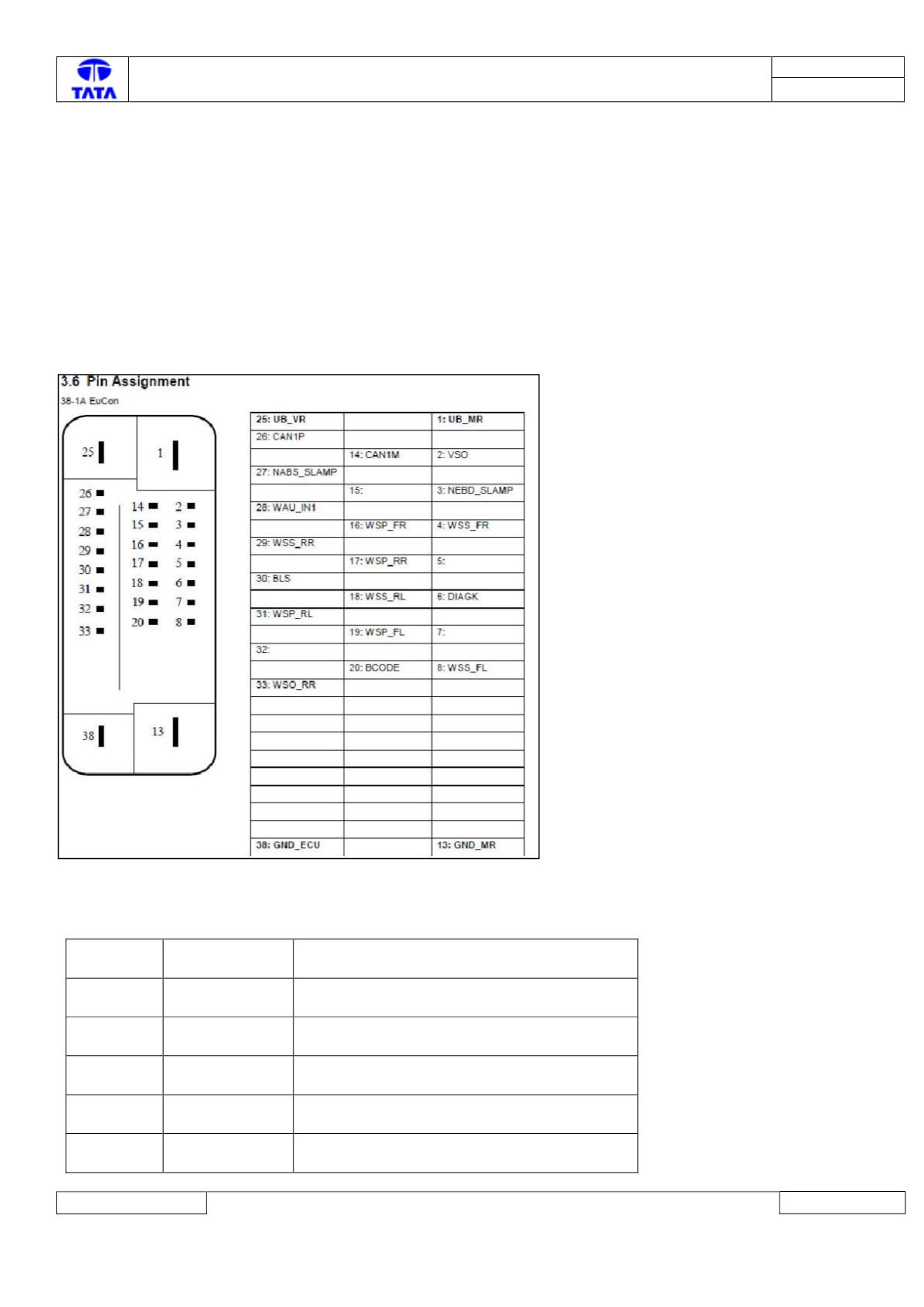

ABS ECU side connector diagram
ABS ECU Pin assignment:-
Pin No.
Pin Name
Description
26
CAN_H
CAN High
14
CAN_L
CAN Low
28
Ign
Ignition
1,25
Vbat
Supply Voltage Battery
13,38
GND
Battery GND
