TA65 Star AMT
42
12.
ASSEMBLIES OF TRANSAXLE:
1. Fit clutch release fork shaft. Fit plastic
bushes. Fit lever on clutch release shaft and
lock it by grooved pin.

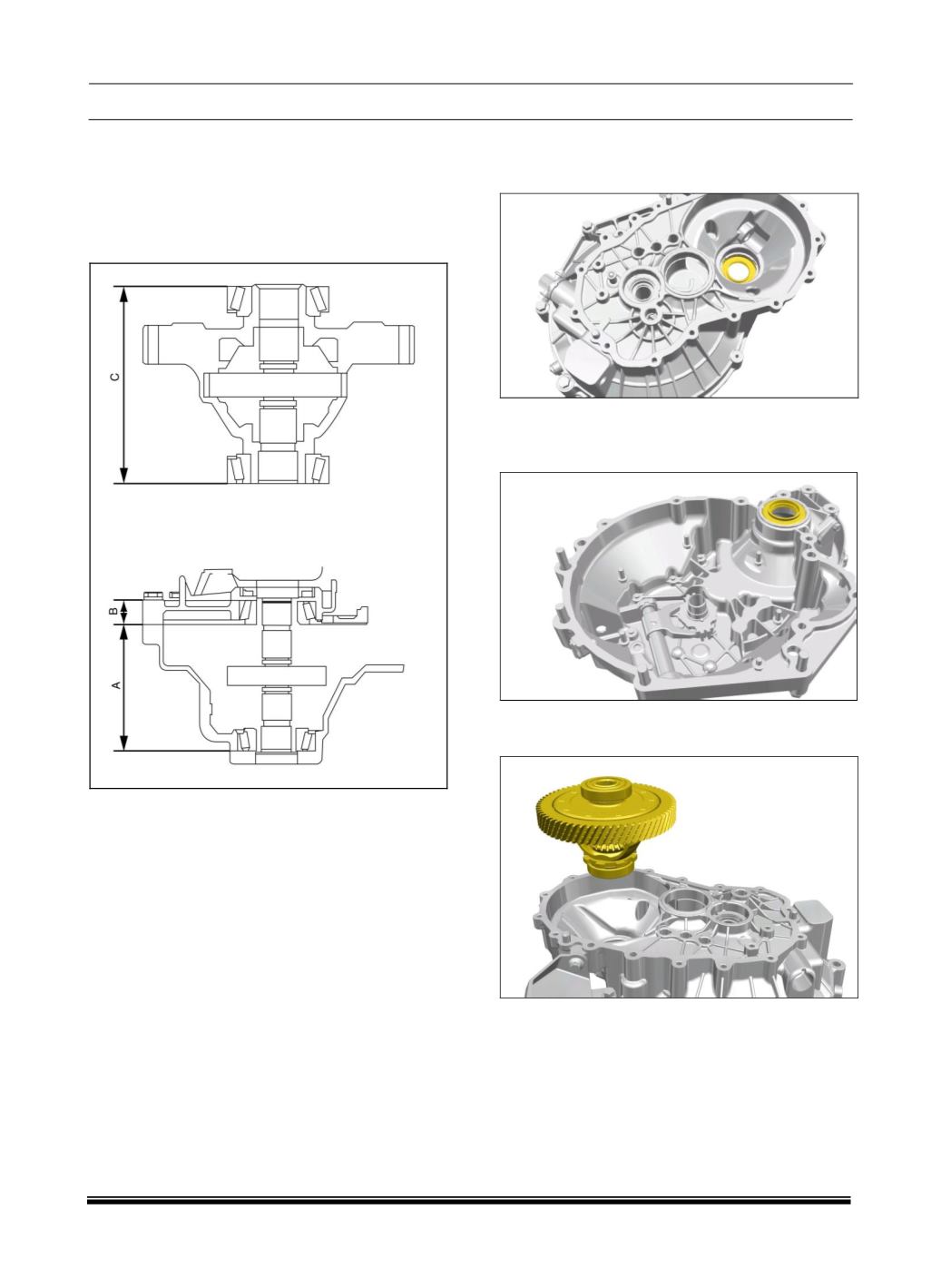

2. Differential bearing preload adjustment
procedure.
Measure dimension ‘A’ (Distance between top
mating surface of transaxle front half and the
outer differential bearing seat) say 103.7mm
in housing and dimension ‘B’ (Distance
between mating surface of transaxle rear half
and the inner differential bearing seat) say
19mm in housing for bore 65.088 mm dia.
Place outer races on both differential side
bearings and measure distance between
outer surfaces of these outer races
(dimension ‘C’).
Select shim thickness = (A+B) - C to (A+B) -
C+ 0.05 and install the shims against front
half taper roller bearing outer race.
3. Fix the outer race of differential bearing in the
housing (front half) by using drift part no. 2654
5890 3507.
4. Remove sensing wheel using by puller part
no. 2651 5890 3506 and rest pad part no.
2702 58902612N.
5. Place the assembly differential in front half
housing.
