TIAGO/TIGOR AMT Gasoline
DTC Troubleshooting Guide
Version: 4.0
Date: 18-04-2017
Author: Sathi/Anupama
Page: 147 of 427
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
4
Fault Still Persists?
Recheck the above steps
Follow the steps again for
reconfirmation
DTC’s confirmation:-
After rectification, clear all DTC’s and ensure the following points by referring TCU parameters using TML diagnostic tool
before handing over to customer.
After key ON with TML TCU diagnostic tool connected, monitor the vehicle speed with mild driving and confirm that it
represents plausible values (shown on instrument cluster).
Drive the vehicle through all gears in both Automatic and Manual modes
Ensure no DTC is active and Transmission Fault Lamp is OFF.

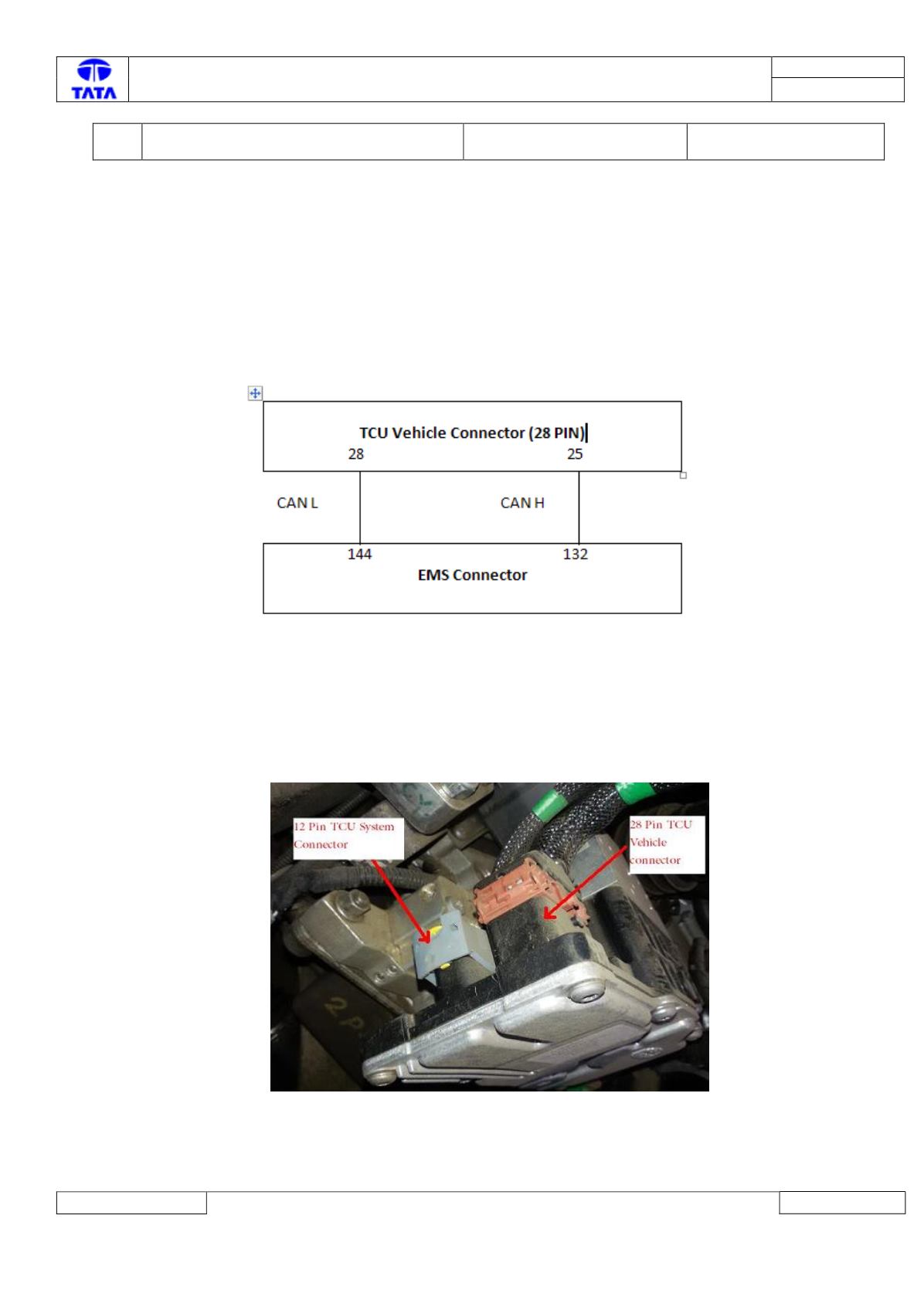

Circuit Schematic Diagram:
Component Location & Image:-
Connector Location: -
TCU system connector (12 Pin) and TCU vehicle Connector (28 Pin) are in Engine compartment, near the AMT kit.
