TIAGO/TIGOR AMT Gasoline
DTC Troubleshooting Guide
Version: 4.0
Date: 18-04-2017
Author: Sathi/Anupama
Page: 99 of 427
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
After rectification, clear all DTC’s and ensure the following points by referring TCU parameters using TML diagnostic tool
before handing over to customer.
After key and engine ON with TML diagnostic tool connected, gradually pickup the vehicle and read Clutch speed
values, check that they are non zero and gradually increasing with vehicle speed.
Drive the vehicle through all gears in both Automatic and Manual modes.
Ensure no DTC is active and Transmission Fault Lamp is OFF.

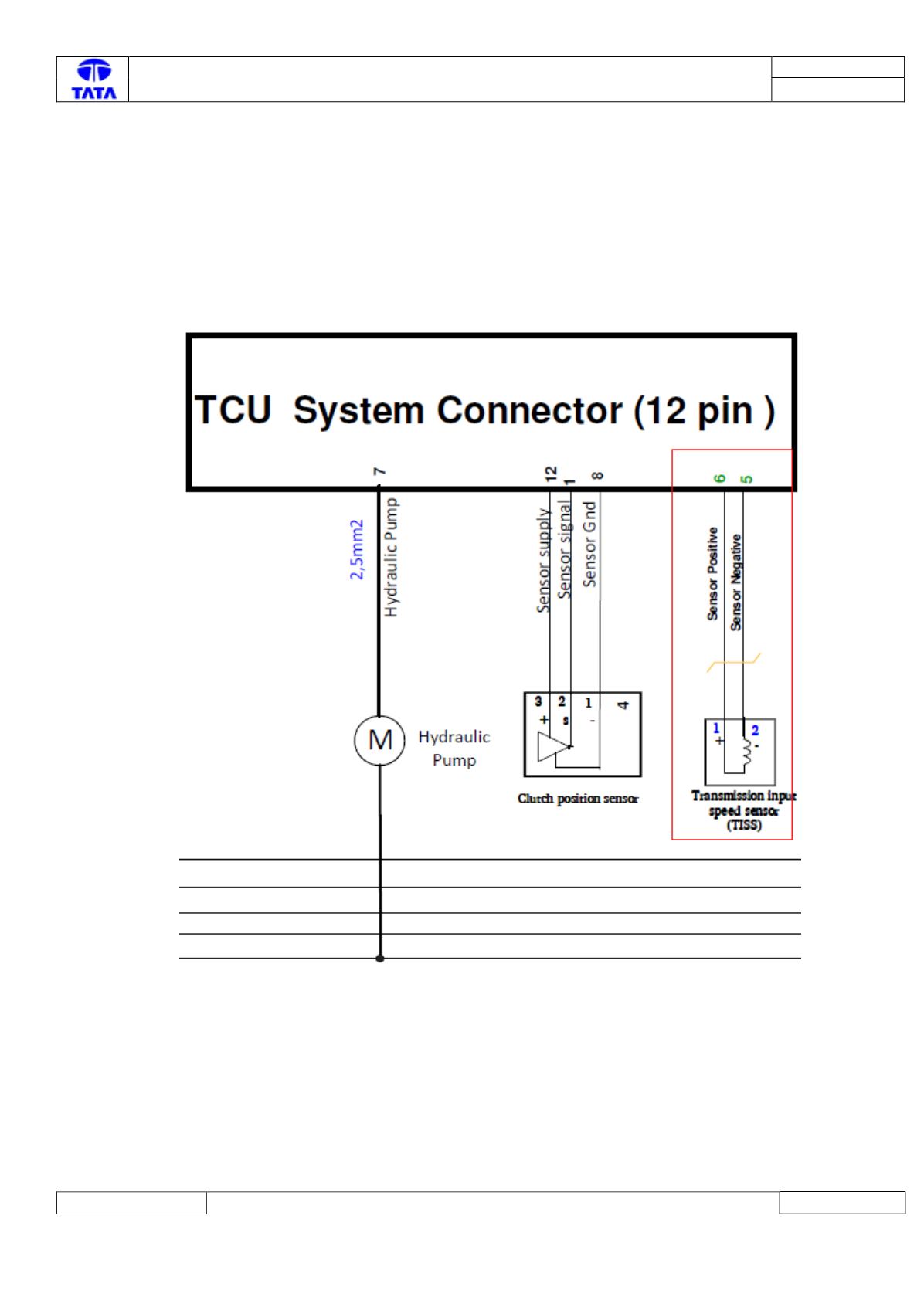

Circuit Schematic Diagram:
Component Location & Image:-
Connector Location: -
