TIAGO/TIGOR AMT Gasoline
DTC Troubleshooting Guide
Version: 4.0
Date: 18-04-2017
Author: Sathi/Anupama
Page: 105 of 427
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
After rectification, clear all DTC’s and ensure the following points by referring TCU parameters using TML diagnostic tool
before handing over to customer.
After key and engine ON with TML TCU diagnostic tool connected, monitor the sport switch status and confirm that it
changes from 0 unpressed to 1 when pressed fully.
Drive the vehicle through all gears in both Automatic and Manual modes
Ensure no DTC is active and Transmission Fault Lamp is OFF.

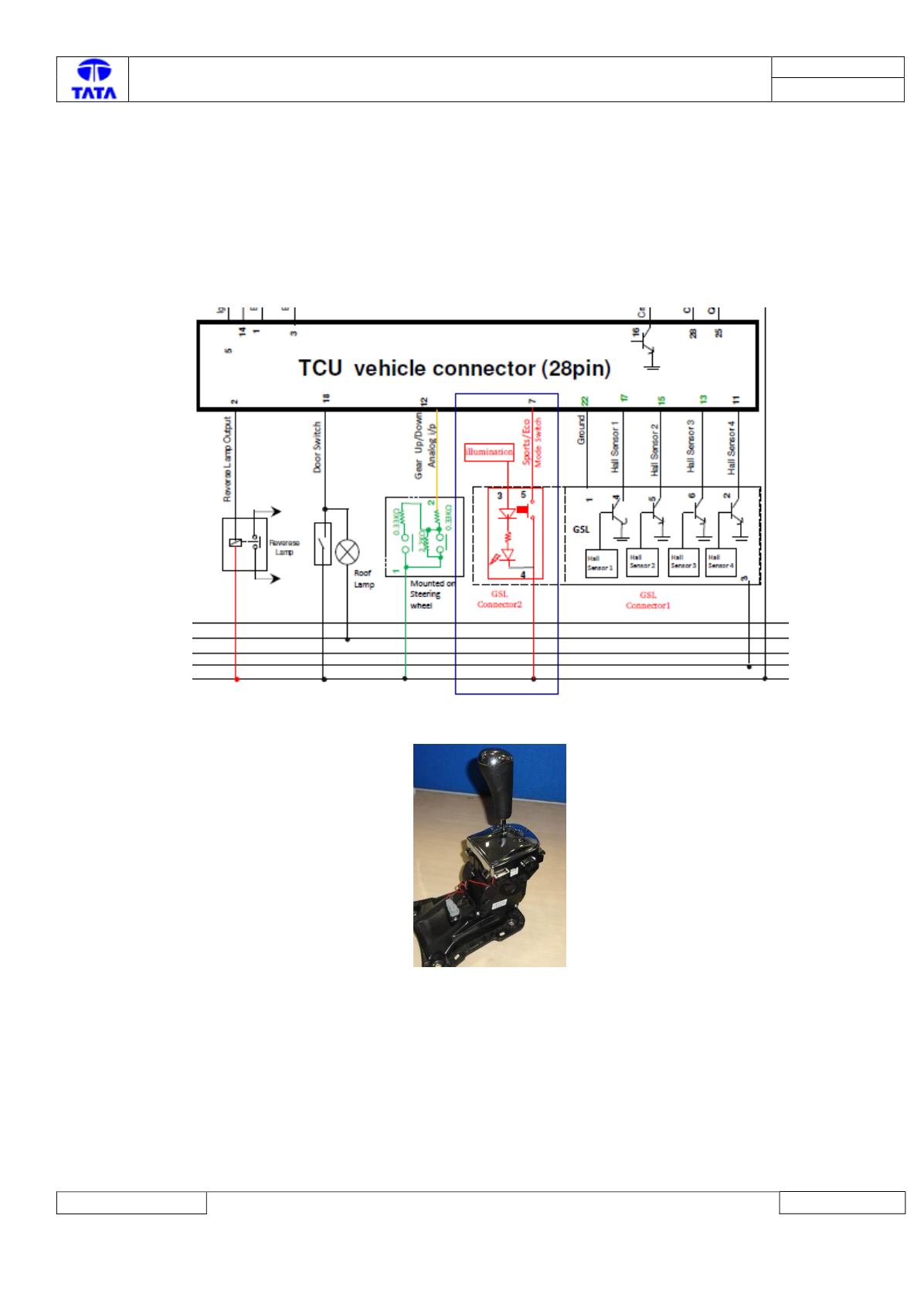

Circuit Schematic Diagram:
Component Location & Image:-
Connector Location: -
