6
Replace the Clutch Position Sensor, fault
persists?
Replace the TCU.
Follow the steps again for
reconfirmation
DTC’s confirmation:-
After rectification, clear all DTC’s and ensure the following points by referring TCU parameters using TML diagnostic tool
before handing over to customer.
Drive the vehicle through all gears in both Automatic and Manual modes.
Ensure no DTC is active and Transmission Fault Lamp is OFF.

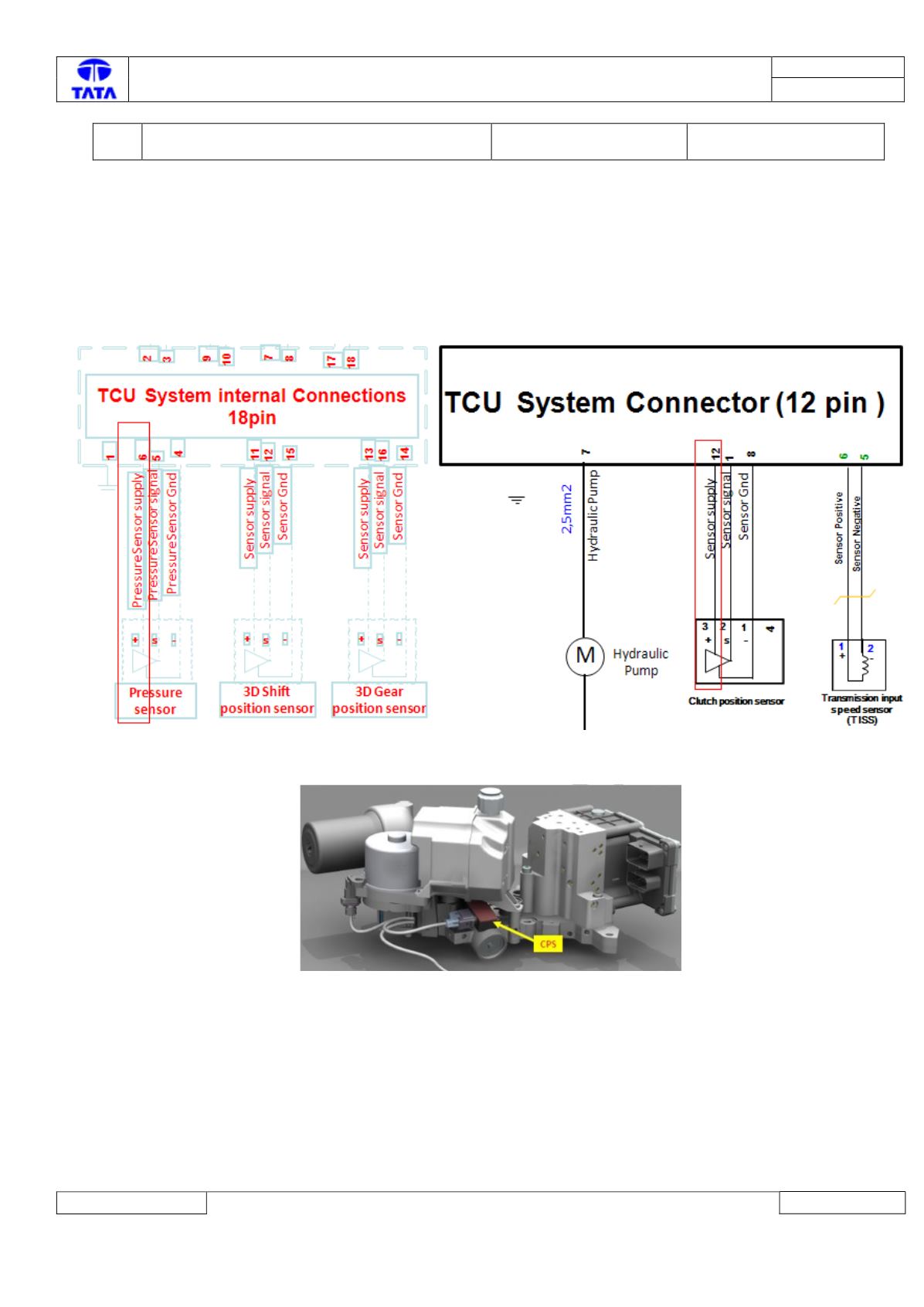

Circuit Schematic Diagram:
Component Location & Image:-
Connector Location: -
TCU system connector (12 Pin) and TCU vehicle Connector (28 Pin) are in Engine compartment, near the AMT kit.
