3. GEAR SHIFTER CENTER CONSOLE

REMOVAL

AND

RE-FITMENT

ON

VEHICLE: -

Removal

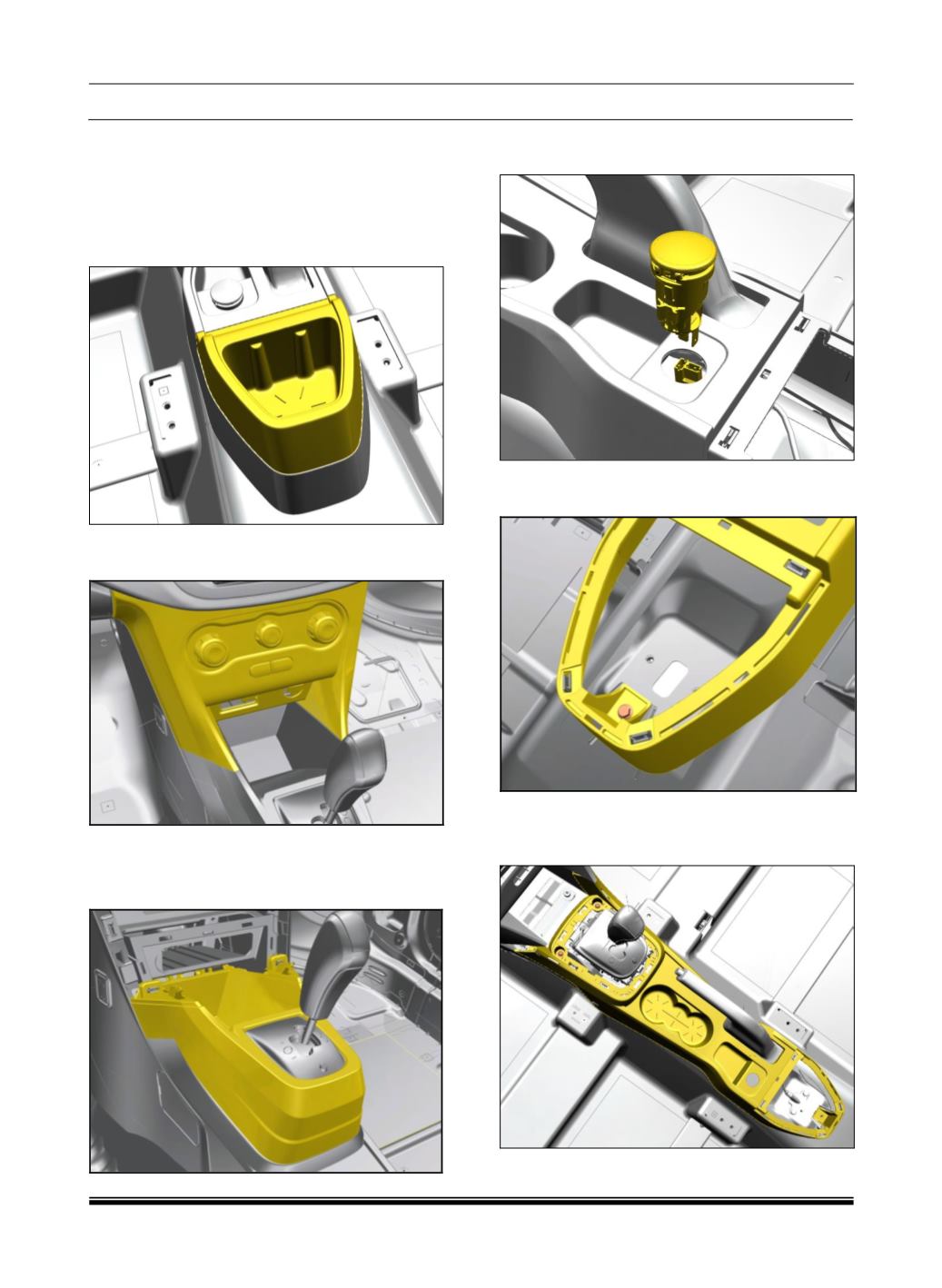

1. Pull out cup holder from console assembly as

shown below

2. Pull out center console along with HVAC

control panel, USB and power socket.

3. Disconnect the electrical connector of HVAC

control panel, USB and power socket.

4. Pull out AMT gear shift Bezel.

5. Disconnect electrical connection of 12 V

power socket & take it out.

6. Remove Rear screws on floor console as

shown

7. Remove front screws on floor console &

Remove rear console by doing hand Brake

adjustment.
