BRAKES
39

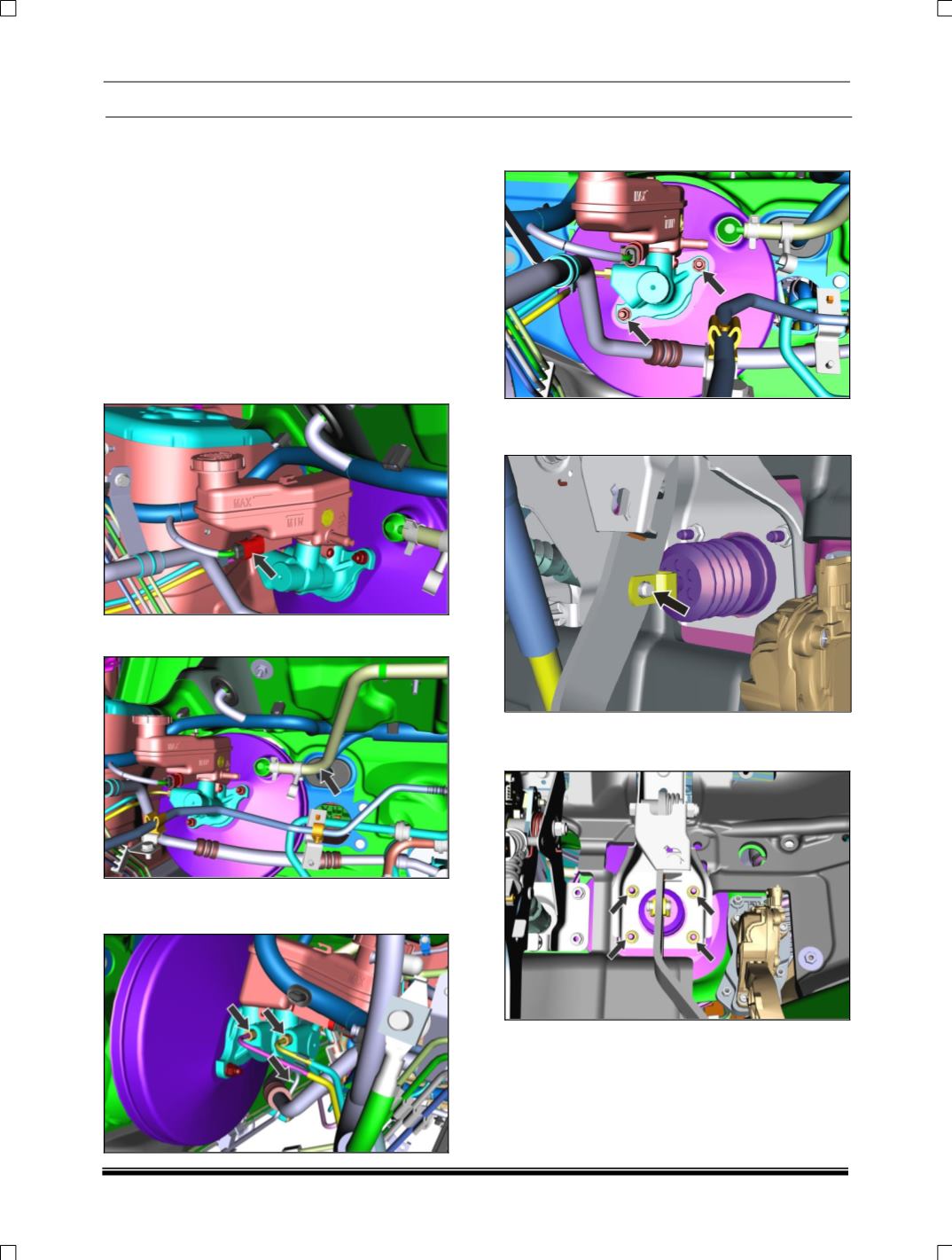

1.13.3. REMOVAL AND REFITMENT OF TMC &
BOOSTER ASSEMBLY
NOTE:
Overhauling of TMC & BOOSTER
ASSEMBLY is not recommended. It is
recommended to replace TMC and Booster
assembly separately whenever required.
Removal:
1. Position vehicle on two post lift and disconnect
battery.
2. Drain brake oil.
3. Disconnect the electrical connector of brake
fluid level switch.
4. Disconnect vacuum hose from brake booster.
5. Loosen coupling nuts and disconnect hydraulic
lines attached to TMC.
6. Remove mounting fasteners of TMC and take
it out.
7. Release clevis clips securing brake booster
push rod to brake pedal.
8. Remove four nuts securing brake booster to
firewall.
9. Remove brake booster carefully.
INSTALLATION:
1. Clean TMC and brake booster-mating
surfaces. Mount brake booster on firewall and
tighten four nuts to specified torque (2.0 - 2.5
Kg-m)
