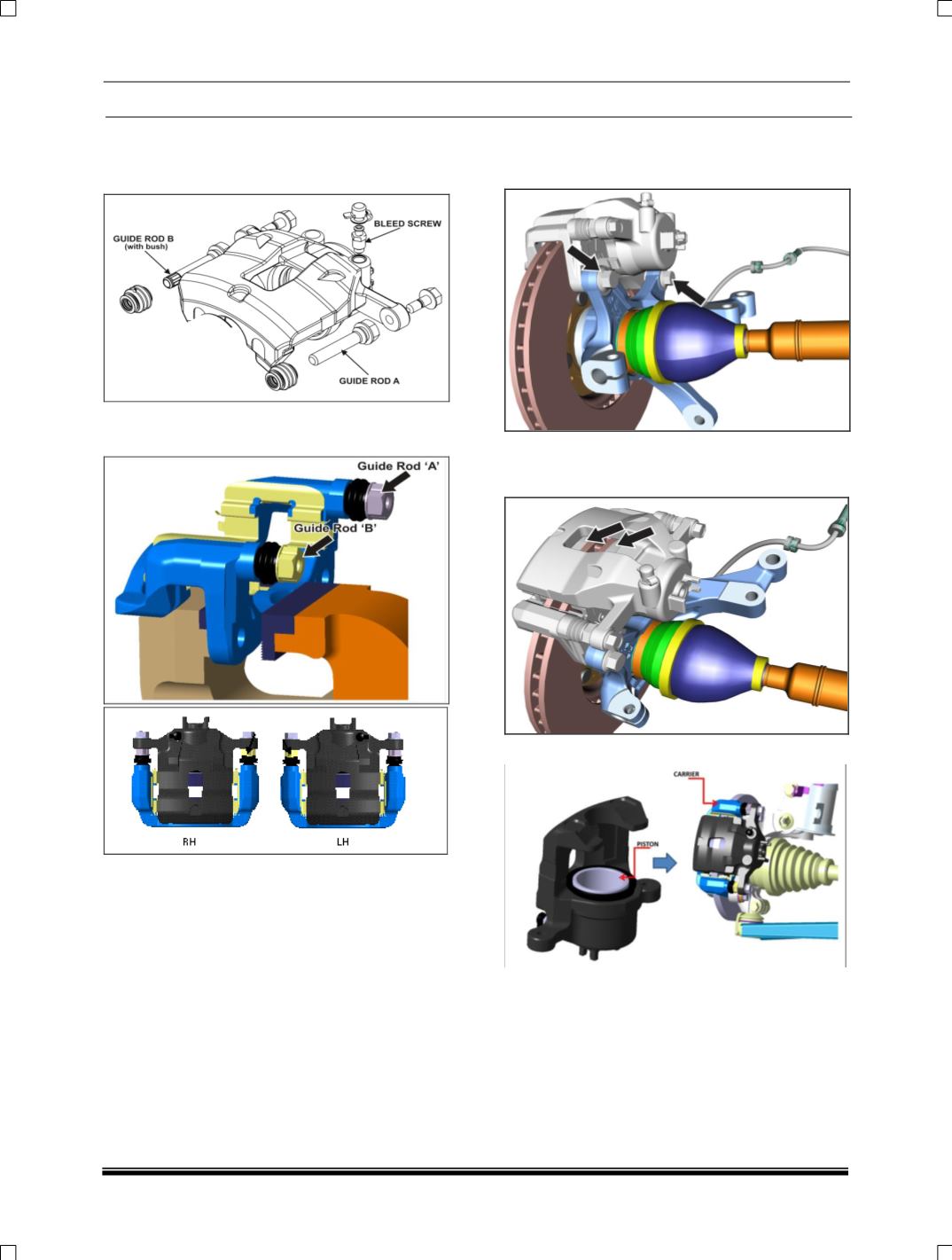

Assembly guide rod ‘B’ (with bush) (always

opposite to bleed screw side both LH & RH).

Brass colour.

3. Assemble boot guide rods, guide rod A and

guide rod B.

4. Assemble the new carrier assembly to the

knuckle. Apply recommended torque. Ensure

correct fitment.

5. Carefully assemble the inner and outer pad

assemblies respectively and ensure the free

back and forth movements of pads.

6. Re-install the calliper in the carrier.

NOTE:

Re-install the calliper in the carrier, screw the

banjo bolt (with copper gasket) to the

recommended torque, then release the hose

clamp, do bleeding operation and check for

correct function of the calliper parts, ensure no

drag and frictional noise.

7. Assemble the wheel again.
