1.11. BRAKE PEDAL ASSEMBLY

REMOVAL

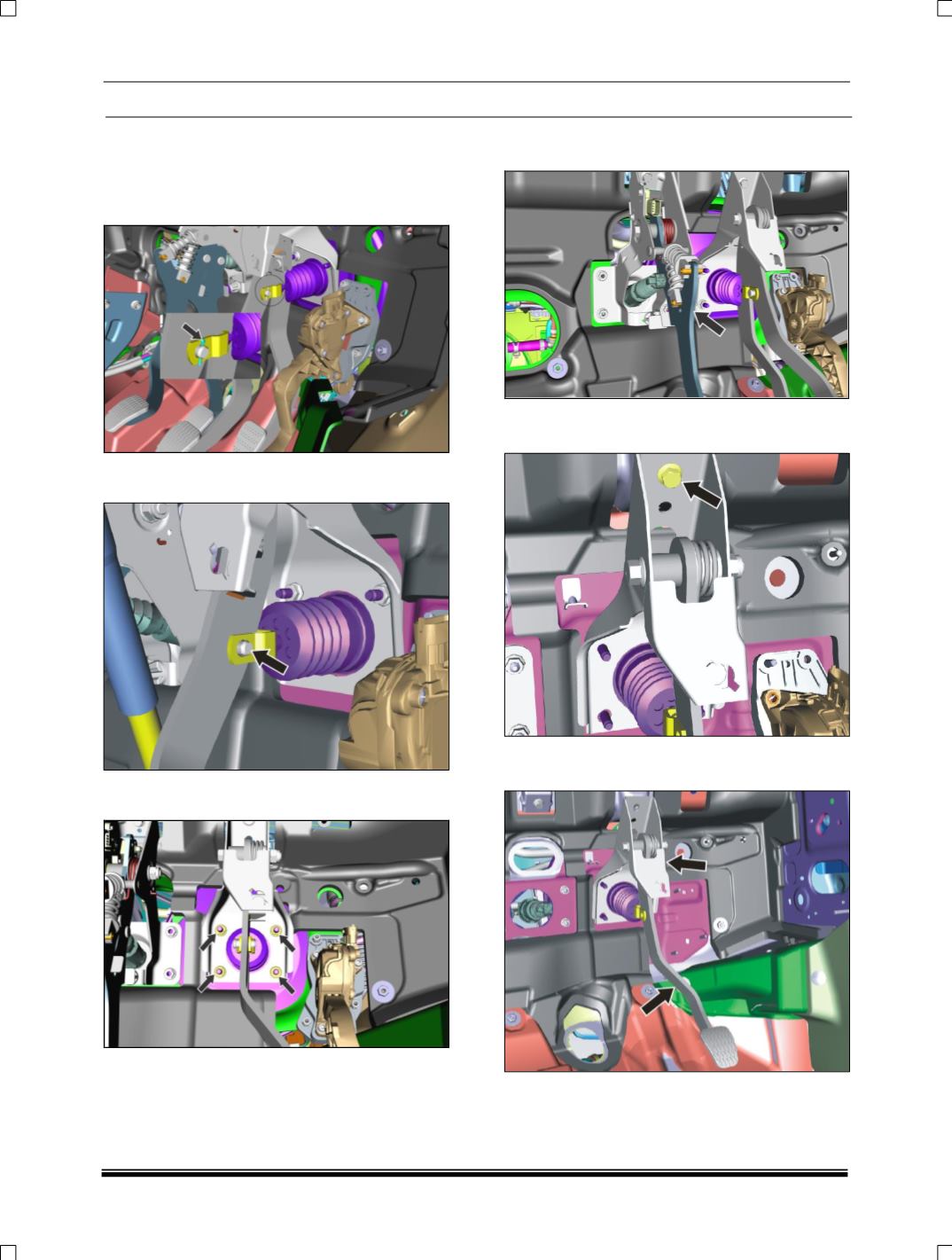

1. To disconnect pedal from brake booster,

remove split pin as shown in fig.

2. Remove clevis pin to separate booster

assembly from pedal

3. Loosen and remove the brake mounting M8

nuts from panel firewall RHD.

4. Loosen and remove the clutch pedal bracket

and lever assembly.

5. Loosen and remove the brake upper mounting

M8 nut from panel firewall RHD.

6. Pull out the brake mounting bracket along with

brake pedal from the driver’s foot control area.
