TRANSAXLE TA6300
48

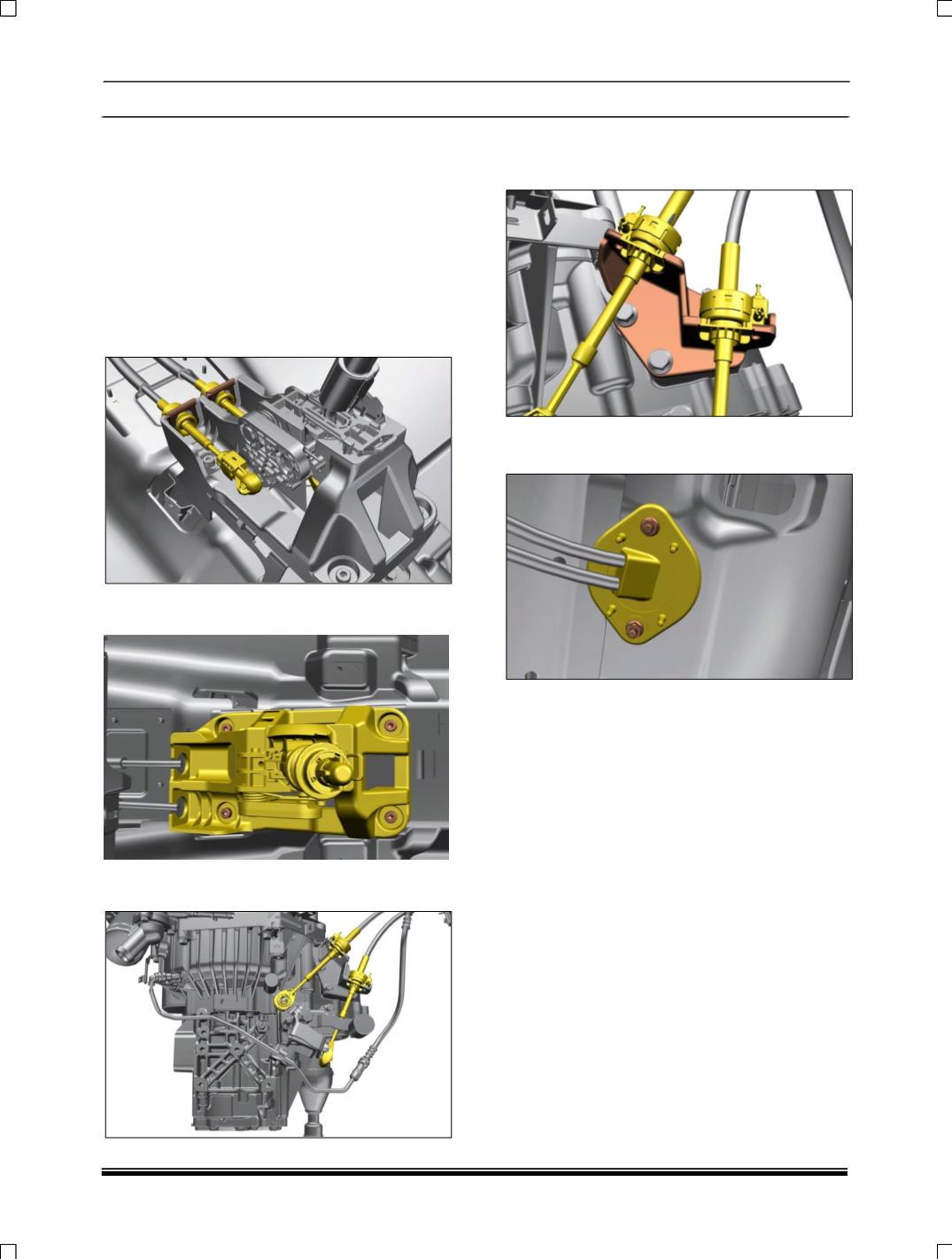

1.14. REMOVAL OF GEAR SHIFTER
HOUSING, GEAR SHIFTER AND
SELECTOR CABLE:
1. Ensure the gear lever in neutral condition.
2. Remove Lever knob, washer, cap screw and
base plate. (Refer body section).
3. Remove the central floor console. (Refer body
section).
4. Pry out both the cable lock plates and remove
the cables from assembly gearshift housing.
5. Unscrew the four bolts of gear shifter lever
housing to remove it.
6. Pry out the shifter selector cable ends from
the transaxle housing.
7. Pull out the plunger from transaxle cable and
remove it from the transaxle cable-anchoring
bracket.
8. Loosen the cable grommet nut mounting from
firewall to remove the assembly.
