TRANSAXLE TA6300
45
20. Assemble clip to fit hydraulic adaptor.
21. Fix magnetic drain and filter plugs with new
washers.
22. Fix the C-mount bracket on the gear box front
housing.
23. Fix the B-mount bracket in the correct
orientation.
TOP COVER DISASSEMBLY & ASSEMBLY:
DISASSEMBLY:

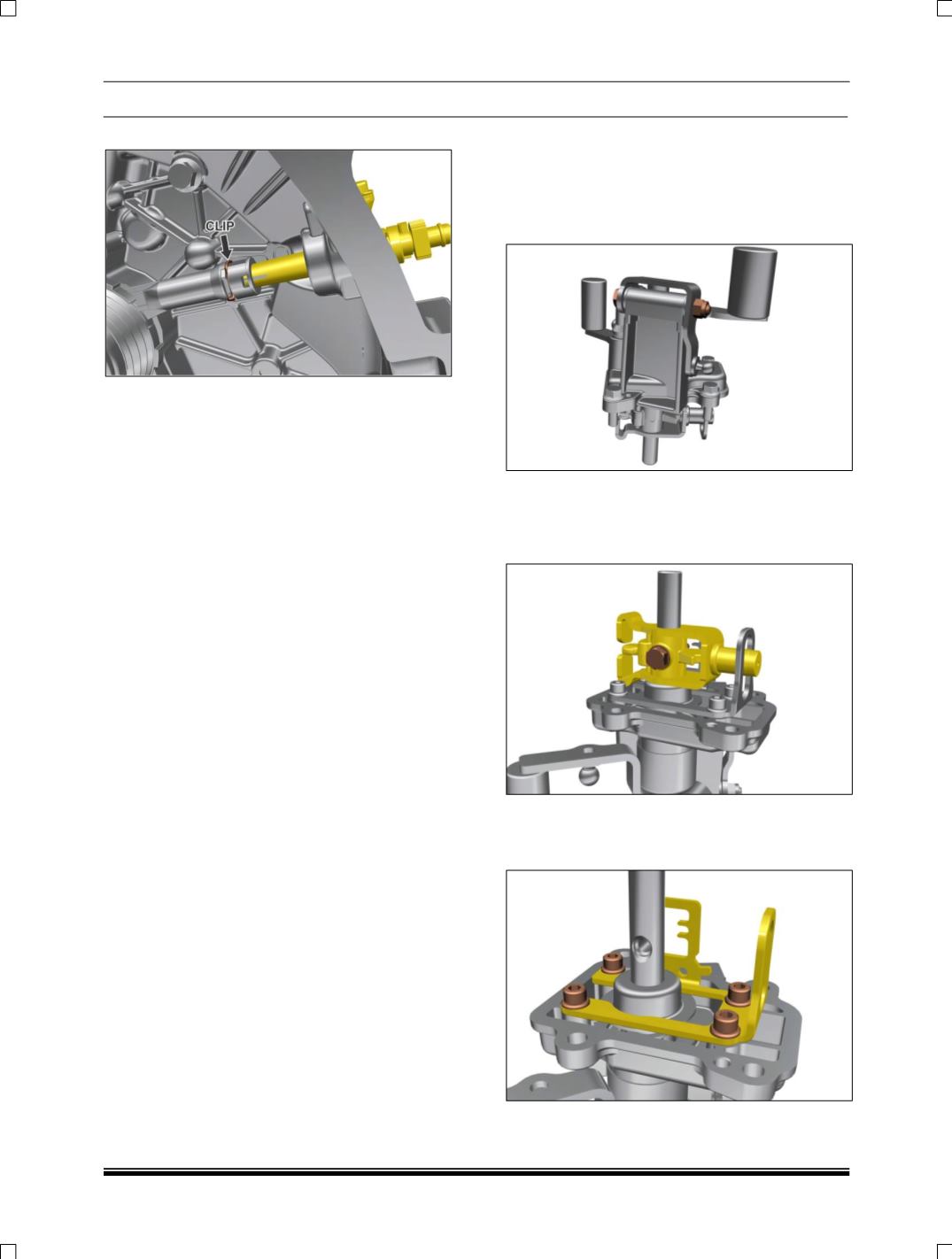

1. Loosen the M8 Nut and remove the bell crank
lever assembly along with bellow and bush,
spacer & sealing ring as shown below figures.
2. Loosen the cross pin bolt of selector shifter
shaft to remove the interlock piece along with
barrel spring, Central Detent and finger
(selection and shifting).
3. Loosen the M6 bolts to remove the Top cover
plate, Cup, springs and spacer from the top
cover as shown in below figures.
