NEXON

1.5L REVOTORQ ENGINE

181

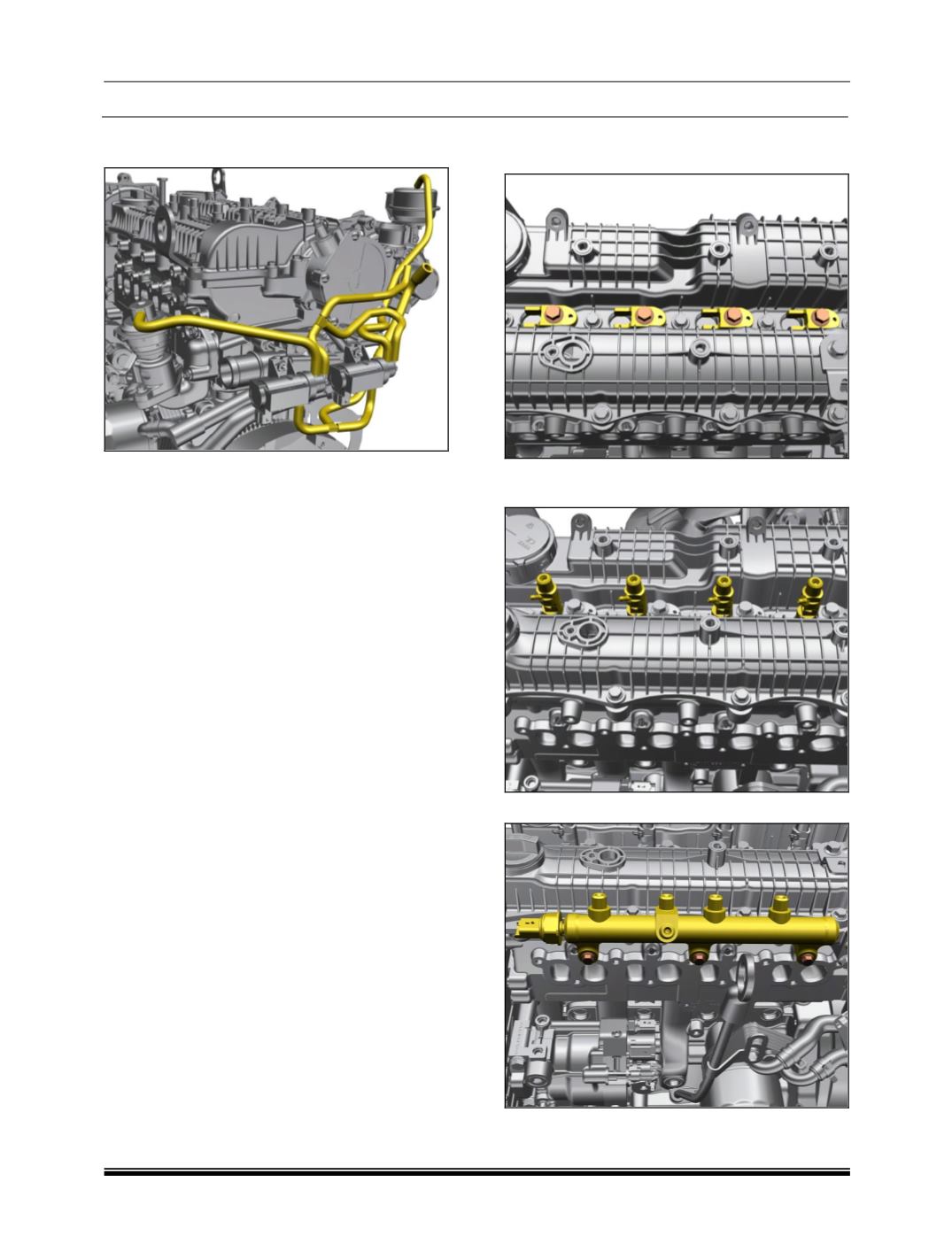

25.Connect the EVRVs hoses assembly to EGR

valve and turbocharger’s actuator.

ix. FITMENT OF INTAKE MANIFOLD

1. Loose fit the injector claws on the head cover.

2. Install all the four fuel injectors. Tighten the

injector claws.

3. Install the fuel rail assembly.
